Guard Enclosure Kits with Safety Interlock
for Morse Tilt-To-Load Drum Rotators
help you meet OSHA requirements

(drum rotator sold separately)

Enclosures for Morse Tilt-To-Load Drum Rotators have a safety interlock to automatically shut off the drum rotator when the gate is opened.

Upgrade to Safety Enclosure with Automatic Control Package

backEasy to load by
hand truck or hoist
without the hazards
 of manual handling

Drum holder on Tilt-To-Load drum rotator

Drum Holder of Tilt-To-Load Drum Tumblers supports drum with base plate under drum, 2 clamps at top of drum and cinch chain around drum.

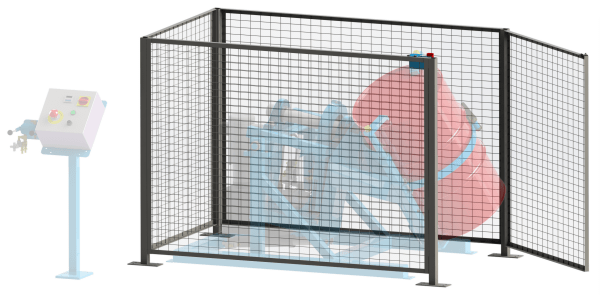

Tilt-To-Load Drum Tumbler inside safety enclosure with interlock

Safety enclosure with interlock to automatically shut off the drum tumbler (drum tumbler sold separately) when the enclosure door is opened. Position the RAISE and ROTATE control mast outside the enclosure for easy access.

Outside post-to-post Dimensions: L88" x W52" x H74" (224 x 132 x 188 cm)

Safety enclosure with interlock for Tilt-To-Load Drum Tumbler

Note: OSHA Requirement for enclosure with safety interlockInstall all Morse Rotators in accordance with local requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."
  Enclosures with Safety Interlock for Tilt-To-Load Drum Rotators
Guard Enclosure Kit #
for Field Installation
(Drum Rotator Sold Separately)		 Fits Drum Rotator
Model #
(Sold Separately)		 Gate Switch Ship
Weight
Adder		 Ship Dimensions
with Drum Tumbler
GEK-310-1-115 310-1-115 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-1-230 310-1-230 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-230 310-3-230 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-460 310-3-460 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-575 310-3-575 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-A 310-A Air Switch 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E1-115 310-E1-115 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E1-230 310-E1-230 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E3-230 310-E3-230 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E3-460 310-E3-460 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
Enclosures with Safety Interlock for 50Hz Tilt-To-Load Drum Rotators
GEK-310-1-220-50 310-1-220-50 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-220-50 310-3-220-50 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-380-50 310-3-380-50 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-3-440-50 310-3-440-50 AC 400 Lb.
(182 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E1-220-50 310-E1-220-50 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E3-220-50 310-E3-220-50 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E3-380-50 310-E3-380-50 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)
GEK-310-E3-440-50 310-E3-440-50 AC Explosion proof * 450 Lb.
(205 kg)		 L101" W31" H66"
(257 x 79 x 168 cm)

* Explosion Proof rated for Class I Group D, and Class II Groups F and G

Last Updated: 05/13/13
