Top Rim Clamp Option
for rimmed 55-gallon plastic drum
Bracket Assembly Option
for rimless plastic drum,
and recommended for fiber drum
Optional Diameter Adaptors
for various
sizes of smaller drum |

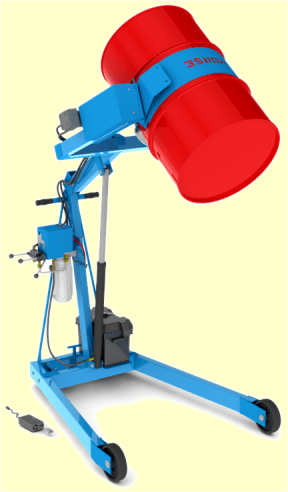

Model 400A-72-115
hydraulic
barrel dumper with 72" lift pouring height,
battery power drum lift and tilt |
Barrel Dumpers with Battery Power Lift and Tilt
Hydra-Lift Drum Karriers
Morse hydraulic barrel dumpers with battery powered lift and tilt option
provide the most ergonomic method to lift and control dispensing of your
drum. Charge the on-board 12V deep cycle battery with the separate
charger supplied, and use your barrel handler with no need to plug into
power or air line.
Battery powered hydraulic barrel dumpers are NOT for use in areas classified
as hazardous.
Hydra-Lift barrel dumpers are available with 96", 72" or 60"
(152, 182 or 244 cm) maximum lift height, measured from the floor to the lowest point
of a horizontal 55-gallon (208 liter) steel drum.
|
|
Option 115 Battery Power Lift and Tilt
- The 12V deep cycle battery provides self contained power
- A charger is included with your barrel dumper that can be wall
or shelf mounted
- Separate handles control the lift and tilt
- A third handle controls drum lowering
It's a Cinch to handle almost any drum, with the
Drum Handling System
- Drum holder automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter drum
- Accepts MORcinch Options to handle your plastic drum
- Accepts Diameter Adaptors for your smaller drums
- Includes safety covered gears for your protection
- Has durable stress-relief weld joints for years of service
- Cinch chain has flexible chain cover to help protect drum sidewall
- Web Strap and Ratchet Option
 Available in 3 different lift heights
Maximum lift height is measured from the floor to the lowest point of a horizontal 55-gallon (208 liter) steel drum. Hydra-Lift drum
dumpers are available with 96", 72" or 60" (244, 183 or 152 cm) maximum lift height.
|
|
Hydraulic
Barrel Dumper Model # |
Barrel Handler
Lift Height |
Barrel Handler
Description |
| 400A-96-115 |
96" (244 cm) |
12V Battery Power Lift and Tilt |
| 400A-72-115 |
72" (183 cm) |
12V Battery Power Lift and Tilt |
| 400A-60-115 |
60" (152 cm) |
12V Battery Power Lift and Tilt |
|
Battery Power Lift and Tilt -
Option 115 |
 |
Controls for Option # 115 Battery Power-Lift and Power-Tilt
- Hold button to activate LIFT and TILT controls
- Control to LIFT drum
- Control to TILT drum
- Control to LOWER drum
Existing manual lift models can be converted to power lift
- Order # O-125FI power lift option for "Field Installation" on
your existing barrel handler
|
|
Last Updated:
04/17/12
Hydraulic barrel dumpers with battery powered lift and tilt option provide the
most ergonomic method to lift and control dispensing of your drum.
Choose a barrel handler with 60", 72" or 96" dispensing height.
|
