Options and Accessories

Hydra-Lift Karrier shown with Top Rim Clamp option for dumping rimmed 55-gallon plastic drum
Hydraulic drum dumper shown with
Top Rim Clamp Option for
rimmed 55-gallon drum dumping
Hydra-Lift drum dumper with Bracket Assembly
Hydraulic drum dumper shown with
Bracket Assembly Option
needed for rimless plastic drum dumping. Also recommended when
handling a fiber drum.
Hydra-Lift drum dumper with Diameter Adaptor
Hydraulic drum dumper shown with
optional Diameter Adaptor for handling a smaller drum.

Hydraulic Drum Dumpers on Wheels to lift, move and pour drum

Morse Hydra-Lift Drum Karriers provide controlled dispensing of your drum.

Hydraulic Drum Dumpers

More than just a 55-gallon drum dumper...
...controlled dispensing of your drum

Morse hydra-lift drum dumper to lift and pour drum up to 8 feet highSafe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage.

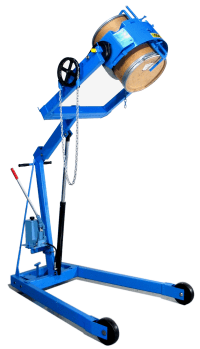

Model 400A-96-110 shown has 8 foot (2.44 m) maximum pour height and AC power lift and tilt. Rotate drum 3600 in either direction. Note: Maximum of 40" (102 cm) tall drum can be rotated.

Morse Hydra-Lift Drum Karriers combine incredible strength with simple drum handling by one person.

  • Lift, move, tilt, raise and drain your heavy 55-gallon (208 liter) steel drum
  • Capacity
  • Handle drum with drum faucet or drum cone in place
  • Hydraulic drum dumpers with 72" or 96" (182 or 244 cm) maximum drum dumping height
  • Hydraulic drum dumpers available with Spark Resistant Parts
  • Custom stainless steel drum handlers available
  • A custom hydraulic drum dumper can be made for your requirements, such as special lift height, extended reach, off-size containers, special straddle width, etc.

It's a Cinch to handle almost any drum, with the
MORcinch Drum Handling System

Drum Handling System


  • Drum holder automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter drum
  • Accepts MORcinch Options to handle your plastic drum
  • Accepts Diameter Adaptors for your smaller drums
  • Includes safety covered gears for your protection
  • Has durable stress-relief weld joints for years of service
  • Cinch chain has flexible chain cover to help protect drum sidewall
  • Web Strap and Ratchet Option


MORStop Tilt-Brake We recommend the
MORStop Tilt-Brake option with manual tilt models to automatically prevent uncontrolled drum tilting.



MORcinch Web Strap and Ratchet Option MORcinch Web Strap and Ratchet Option

Power Options

Why Buy Morse?

Many other Morse drum handlers are available with stainless steel construction

Custom
Hydra-Lift Karriers

Custom model 400S-XR with extra reach beyond front wheels
Custom model # 400S-XR-115
Hydra-Lifter with extended reach to pour beyond beyond front wheels.

Custom Hydra-Lift Karrier painted with USDA white epoxy
Custom 55-gallon drum dumper
painted with
FDA compliant powder coat
* Half-Full Drum Rating
Half-full rating of this hydraulic drum dumper is an indication of capacity for tilting unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than full drum.
