PailPRO 5-gallon pail handlersModel 85-5
Below Hook 5-Gallon Pail-Karrier
(19 liter pail carrier)

Pail Handling Equipment

Custom Below-Hook
5-Gallon Pail Carrier

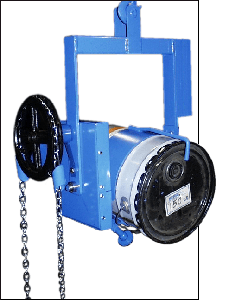

Custom below-hook 5-gallon pail carrier with pull chain controlled tilt
Custom model # 185S-5
Below-hook 5-gallon pail carrier
has pull chain controlled geared tilt
PailPRO 5-Gallon Pail-Karrier

This 5-Gallon (19 liter) Pail-Karrier brings ergonomics to below-hook pail handling. PailPRO TM Model 85-5 is an ergonomic and safety conscious below-hook can tipper to lift and pour your 5-gallon (19 liter) plastic or metal pail, 11" to 12" (28 to 30.5 cm) in diameter.

Securely clamp your pail in the holder and turn the hand wheel to dispense. Turn your pail end-over-end 360 degrees in either direction. The top bracket prevents your can from slipping through the holder when inverted.

NoteMorse below-the-hook drum handlers and pail handlers are manufactured by Morse Mfg. Co., Inc. in East Syracuse, NY 13057 USA. Every one is load tested at the factory at 125% of rated capacity as per American National Standard ANSI/ASME B30.20, and a load test certificate is enclosed with each unit when shipped. . . See Load Test Video

Morse drum lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:

  • Rated load markings and unit identification
  • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
  • Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
  • All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1

Capacity:

  • 200 Lb. (91 kg) for a full pail
  • 100 Lb. (45 kg) for a half-full pail with shifting load

Ship weight: 25 Lb. (11.4 kg)
Ship dimensions: L21" W17" H10" (53 x 43 x 25 cm)

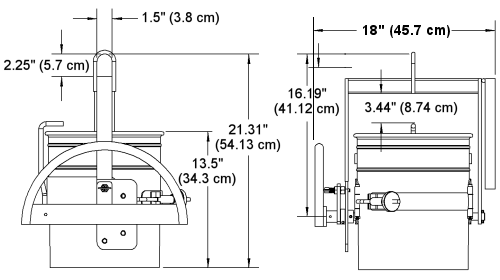

Dimensions of Model 85-5 PailPRO TM Below-Hook 5-Gallon Pail-Karrier

Dimensions of model 85-5 PailPRO Below-Hook 5-Gallon Pail Handler
Model 85-5 Below Hook 5-Gallon Pail-Karrier
