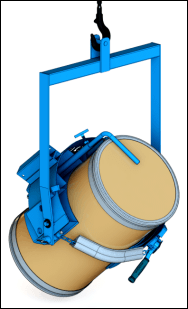

Below-the-Hook Drum Carrier with Diameter Adaptor for Smaller Drum
Below-the-Hook Drum Carrier model 85i accepts various sizes of Diameter Adaptor for Smaller Drum

drum carrier with Bracket Assembly Option for fiber drum
Model 85i drum carrier with Bracket Assembly Option installed for fiber or plastic drum

Below-Hook Drum Carriers
Kontrol-Karriers
pour above reach

below-hook drum carriers to pour drum above reach

800 Lb. Capacity

1500 Lb. Capacity


Drum Karriers
pour within reach
Drum-Karriers to pour within reach

5-Gallon Pail-Karrier
5-Gallon Pail-Karrier

Adjusto-Karriers
for diameter range
Adjusto-Karrier
Below-Hook Drum Carrier
Model 85i
below-hook drum carrier		 Stainless steel below-hook drum carrier - Model 185i-SS
Model 85i-SS
below-hook drum carrier
made of type 304 stainless steel

Below-hook drum carriers to lift, rotate and control drum pouring within your reach. Turn drum 360o in either direction by hand.

Below-Hook Drum Carriers with 800 Lb. Capacity

Morse Below-Hook Drum Carriers enable you to move and pour a drum within your reach. Dispense drum contents with your hoist or crane. Even lift and invert a drum with drum faucet in place.

You manually control drum tilting 360 in either direction. These drum carriers require that you manually grasp the drum to control the drum tilt. The drum carrier can be locked with drum in vertical position for transporting, or locked in the horizontal position to pour. Release tilt-locks on drum carrier for hand-controlled tilt at any angle.

Drum Carrier Capacity:

  • Full drum up to 800 Lb. (363 kg)
  • Half-full drum* up to 500 Lb. (227 kg)

Ship Dimensions: L39" W27" H9" (99 x 69 x 23 cm)


Model # Drum Carrier
Description		 Handle Ship Weight
85i Drum Karrier Models 85i and 85i-SS handle a standard steel 55-gallon (208 liter) drum with 22.5" (57.2 cm) diameter between ribs. Options to handle other drums: 43 Lb.
(19.5 kg)
85i-SS Drum Karrier made of
type 304 Stainless Steel		 41 Lb.
(19 kg)
85A Drum Karrier Steel 55-gallon drum (208 liter) with 22.5" (57.2 cm) diameter between ribs 41 Lb.
(19 kg)
85AM Drum Karrier with spark resistant parts Steel 55-gallon drum with 22.5" diameter between ribs 41 Lb.
(19 kg)
85G Drum Karrier with
3-piece drum holder		 Steel 55-gallon drum with 22.5" diameter between ribs 55 Lb.
(25 kg)
85C   Fiber or steel drum 21" to 23" diameter 41 Lb.
(19 kg)


Half-Full Drum Rating

* Half-Full Drum Rating is an indication of capacity for tilting unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than full drum.

Morse below-the-hook drum carriers

Important noteIMPORTANT - It is critical to use the correct holder and accessory to lift your drum type and dimensions.

NoteMorse below-the-hook drum handlers and pail handlers are manufactured by Morse Mfg. Co., Inc. in East Syracuse, NY 13057 USA. Every one is load tested at the factory at 125% of rated capacity as per American National Standard ANSI/ASME B30.20, and a load test certificate is enclosed with each unit when shipped. . . See Load Test Video

Morse drum lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:

  • Rated load markings and unit identification
  • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
  • Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
  • All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1
