The Specialist In Drum Handling EquipmentPhone: (315) 437-8475       Fax: (315) 437-1029

Counterweights to keep your below-hook drum handler level

counterweight 4623-P for model 185A
Counterweight kit numbers 4622-P, 4623-P, and 4622SS-P
install on Kontrol-Karriers with MORCINCH TM Drum Holder,
and replace the frame opposite the drum tilt control.

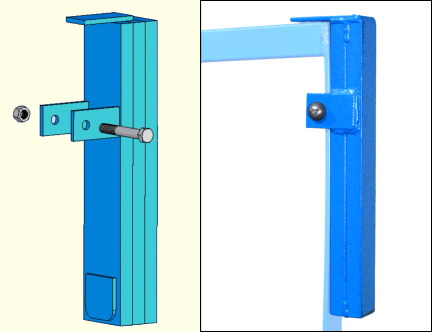

Counterweight to keep Kontrol-Karrier hanging level
Counterweight kits for older Morse models
bolt to the existing frame of the Kontrol-Karrier.
Part # 421-P, 461-P, 471-P and 481-P.

Install a counterweight to keep your below-hook Kontrol-Karrier level, even without a drum in the holder. Having the below-hook drum handler level makes loading your drum easier.


Counterweights for 800 Lb. (363 kg) Capacity Kontrol-Karriers

  • Option # 4623i-P (shown in blue)
    Factory Installed Counterweight on new unit

  • Kit # 4623-P
    Counterweight Kit for units made April 2009 to present
    (serial # 0409 to ____ )

  • Kit # 471-P
    Counterweight Kit for units made before April 2009
    (serial # ____ to 0309)

Counterweights for 1500 Lb. (680 kg) Capacity
Heavy-Duty Kontrol-Karriers

  • Option # 4622i-P
    Factory Installed Counterweight on new unit

  • Kit # 4622-P
    Counterweight Kit for units made March 2009 or later
    (serial # 0309 to ____)

  • Kit # 481-P Counterweight Kit for units made before March 2009
    (serial # ____ to 0209)


  • Option # 4622SSi-P
    Factory Installed Stainless Steel Counterweight on new unit


  • Kit # 4622SS-P
    Stainless Steel Counterweight Kit for model 185A-HDSS made March 2009 or later (serial # 0309 to ____)


  • Kit # 481SS-P
    Stainless Steel Counterweight Kit for units made before March 2009 (serial # ____ to 0209)

Counterweight for 2000 Lb. (907 kg) Capacity
Extra Heavy-Duty Kontrol-Karriers

  • Kit # 461-P
    Counterweight Kit for units made before June 2019 (serial # ____ to 0519)

Counterweight for 2500 Lb. (1134 kg) Capacity
Super-Duty Kontrol-Karrier

  • Part # 451-P
    Counterweight Kit for units made before July 2019 (serial # ____ to 0619)

Counterweights for Adjusto-Karrier Model 186

  • Kit # 421-P Counterweight for Adjusto-Karrier



Counterweight to keep Morse below-hook drum handlers level.


Last Updated: 08/14/19
