289C


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

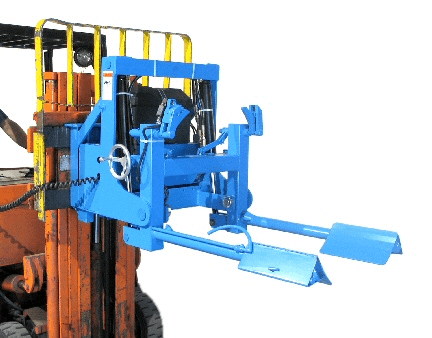

MORStak Carriage-Mount Drum Racker. 12V DC Battery power tilt for RIMMED 55-gallon (210L) steel or plastic drum. Includes battery and charger.


289C

Specific to model 289C...
  • Model 289C Mounts directly to your ITA Class 2 forklift carriage
All MORStak Forklift Mounted Drum Rackers...
  • Eliminate dangerous "bare fork" drum handling
  • Forklift attachment with self-contained 12V battery DC power drum tilt; includes battery and charger
  • Control drum tilt from your forklift
  • 2-button pendant reaches back to forklift operator to control tilt

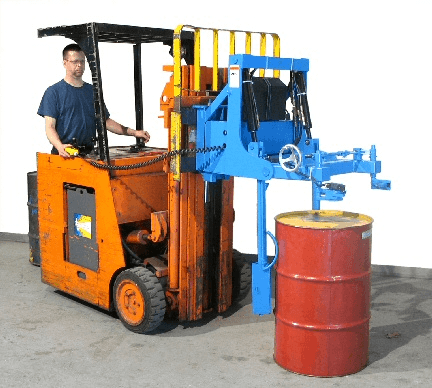

  • Lift and tilt a RIMMED upright 55-gallon (210 liter) steel or plastic drum
  • Place into rack in horizontal position
  • Retrieve horizontal drum, and return to upright position
  • Rack drums side-by-side with virtually no clearance
  • Handle drum with drum faucet in place, allowing your drum rack to serve as dispensing station
  • Move drums on and off racks, pallets, trucks, etc.
REQUEST QUOTE CLICK TO CALL

General

Full Capacity

800 Lb. (363.2 kg)

Shipping information

Ship length74" (187.96 cm)
Ship width48" (121.92 cm)
Ship height40" (101.6 cm)
Ship weight560 Lb. (254.24 kg)
Ship class92.5
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
Click serial range to download.
Operators Manual
Serial range

289C MORStak Carriage- Mounted Drum Racker

4804-P Wireless Remote Control

Battery Charger

Battery Charging Information

CE Declaration of Conformity - 289
Parts Diagram
Serial range

3955-P Drum Grab Assembly

Hydraulic Power Pack

Hydraulic Tilt Cylinder
Click serial range to download.
Material Safety data sheet
Serial range

388-P Battery Safety Data Sheet

NOCO Premium Plus Automatic Transmission fluid
4785X-P thumbnail image 4785X-P

Fully Enclosed Crate for export of 1 of model 289F or 289C. Crate is heat treated and certified IPPC compliant.

EB

OPTION: Factory Installed sealed 12V battery on NEW drum handler for export shipment

EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.

GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 year design life.

NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.

NC

OPTION: No Charger. Customer must obtain 12V charger.

PB

OPTION: Factory Installed premium 12V battery on NEW drum handler

4804I-P thumbnail image 4804I-P

OPTION: Factory Installed Wireless Tilt Control on NEW model 285A-BP, 285XBP, 289C or 289F

6748-P

KIT, SEAL, 2" CYL, 5522K-P

FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil
