Enclosures with Safety Interlock
for
Discontinued
End-Over-End Drum Rotators


NOTE: End-Over-End Drum Tumblers have been discontinued.
Please consider the new Drum Tumblers that will handle a plastic drum, steel drum, fiber drum, or even a smaller drum.

You may still purchase Safety Enclosures for your existing End-Over-End Drum Tumbler. They are equipped a safety interlock to automatically shut off the drum rotator when the gate is opened to meet OSHA requirements for all drum rotators.

Guard Enclosures are shown here with End-Over-End Drum Tumbler (sold separately).

Load drum into enclosure with your crane or hoist

Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."

Cage with safety interlock for Morse End-Over-End Drum Rotator - drum tumbler
Outside post-to-post dimensions:
  • Enclosures for Double End-Over-End Drum Tumblers:
    L92" W52" H63.25" (234 x 132 x 161 cm)

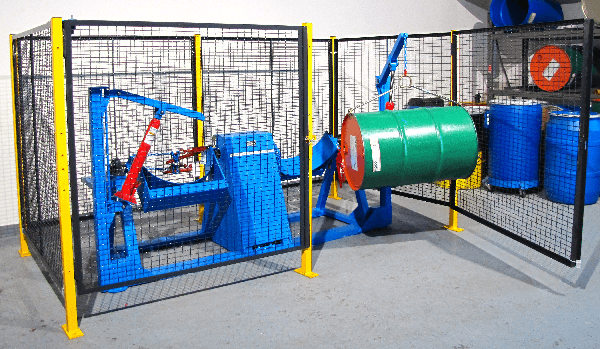

Double End-Over-End Drum Tumbler with Optional Load Cranes and Guard Enclosure with Safety InterlockLarger Guard Enclosure
with Safety Interlock for Drum Tumbler with Optional Load Cranes (sold separately).

Installing load cranes on the Drum Tumbler requires a larger enclosure than for drum tumbler alone.



Outside post-to-post dimensions:
 L132" x W64" x H63.25" (355 x 163 x 161 cm)
Enclosures with Safety Interlock for End-Over-End Drum Rotators
Guard Enclosure Kit #
for Field Installation
(Drum Tumbler Sold Separately)
Fits Drum Tumbler
Model #
(Sold Separately)
Gate Switch Enclosure Kit
Domestic
Ship Weight
Domestic
Ship Dimensions
of Enclosure Kit
GEK-1-300-1-115 1-300-1-115 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-1-230 1-300-1-230 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-230 1-300-3-230 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-460 1-300-3-460 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-575 1-300-3-575 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-A 1-300-A Air Switch 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E1-115 1-300-E1-115 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E1-230 1-300-E1-230 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E3-230 1-300-E3-230 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E3-460 1-300-E3-460 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-1-115 2-300-1-115 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-1-230 2-300-1-230 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-230 2-300-3-230 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-460 2-300-3-460 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-575 2-300-3-575 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-A 2-300-A Air Switch 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E1-115 2-300-E1-115 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E1-230 2-300-E1-230 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E3-230 2-300-E3-230 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E3-460 2-300-E3-460 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
Enclosures with Safety Interlock for 50Hz End-Over-End Drum Rotators
Guard Enclosure Kit #
for Field Installation
(Drum Tumbler Sold Separately)
Fits Drum Tumbler
Model #
(Sold Separately)
Gate Switch Enclosure Kit
Domestic
Ship Weight
Domestic
Ship Dimensions
of Enclosure Kit
GEK-1-300-1-220-50 1-300-1-220-50 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-220-50 1-300-3-220-50 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-380-50 1-300-3-380-50 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-3-440-50 1-300-3-440-50 AC 400 Lb.
(182 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E1-220-50 1-300-E1-220-50 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E3-220-50 1-300-E3-220-50 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E3-380-50 1-300-E3-380-50 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-1-300-E3-440-50 1-300-E3-440-50 AC Explosion proof * 450 Lb.
(205 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-1-220-50 2-300-1-220-50 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-220-50 2-300-3-220-50 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-380-50 2-300-3-380-50 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-3-440-50 2-300-3-440-50 AC 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E1-220-50 2-300-E1-220-50 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E3-220-50 2-300-E3-220-50 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E3-380-50 2-300-E3-380-50 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-E3-440-50 2-300-E3-440-50 AC Explosion proof * 500 Lb.
(227 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
Enclosures with Safety Interlock for End-Over-End Drum Rotators with Optional Load Cranes
Guard Enclosure Kit #
for Field Installation
(Drum Tumbler Sold Separately)
Fits Drum Tumbler
(Sold Separately)
Gate Switch Enclosure Kit
Domestic
Ship Weight
Domestic
Ship Dimensions
of Enclosure Kit
GEK-1-300-LC-AC AC Powered 1-300 with Load Cranes AC 500 Lb.
(227 kg)

GEK-1-300-LC-EXP Explosion-Proof AC Powered 1-300 with Load Cranes AC Explosion proof * 500 Lb.
(227 kg)

GEK-1-300-LC-AIR Air Powered 1-300 with Load Cranes Air Switch 500 Lb.
(227 kg)

GEK-2-300-LC-AC AC Powered 2-300 with Load Cranes AC 610 Lb.
(277 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-LC-EXP Explosion-Proof AC Powered 2-300 with Load Cranes AC Explosion proof * 610 Lb.
(277 kg)
L101" W31" H66"
(257 x 79 x 168 cm)
GEK-2-300-LC-AIR Air Powered 2-300 with Load Cranes Air Switch 610 Lb.
(277 kg)
L101" W31" H66"
(257 x 79 x 168 cm)

* Explosion Proof rated for Class I Group D, and Class II Groups F and G

Last Updated: 03/13/19

Enclosures for Morse End-Over-End Drum Rotators have a safety interlock
to automatically shut off the drum rotator when the gate is opened.
