Enclosures with Safety Interlock for Morse 5-Gallon Can Tumblers

Enclosures for Morse Morse PailPRO 5-gallon pail handlers Can Tumblers have a safety interlock to automatically shut off the drum rotator when the gate is opened.

Two ways to order an Enclosure for your Can Tumbler:

  1. Order Guard Enclosure Kit for you to field install on your Can Tumbler.

  2. Order Guard Enclosure Option factory installed on a new Can Tumbler.

Guard Enclosure for DOUBLE Can Tumbler

Enclosure with safety interlock for Morse Double Can Tumbler
Guard Enclosure shown installed with Double Can Tumbler (Can
Tumbler sold separately). Guard enclosures are interlocked with
the drive mechanism, so that when the enclosure is opened the
can tumbler automatically shuts off.

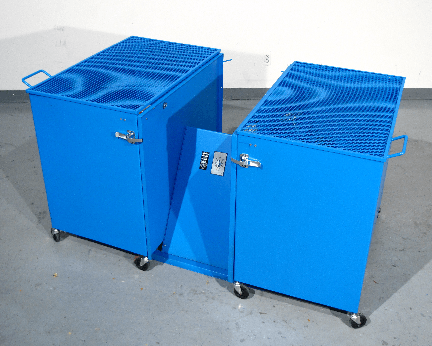

Can Tumbler inside safety enclosure with safety interlock
Guard Enclosure shown installed with Double Can Tumbler (Can
Tumbler sold separately).

Guard Enclosure for SINGLE Can Tumbler

Enclosure with Safety Interlock for Single Can Tumbler
Guard Enclosure shown installed with Single Can Tumbler (Can Tumbler sold separately).

Note: OSHA Requirement for enclosure with safety interlock IMPORTANT - OSHA holds the employer responsible for the suitability of design and application of tools and machinery.
Install all Morse Rotators in accordance with requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.

For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."
Guard Enclosure Kits for Field Installation
Guard Enclosure Kit #
for Field Installation
(Can Tumbler Sold Separately)		 Fits Can Tumbler
Model #
(Sold Separately)		 Gate Switch Domestic
Ship Weight of Kit		 Domestic
Ship Dimensions of Kit
GEK-2-305-1 2-305-1 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-1-50 2-305-1-50 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-1-230 2-305-1-230 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-3 2-305-3 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-3-50 2-305-3-50 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-575 2-305-575 AC 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-A 2-305-A Air Switch 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-E1 2-305-E1 AC Explosion proof * 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-E1-50 2-305-E1-50 AC Explosion proof * 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-E3 2-305-E3 AC Explosion proof * 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-E3-50 2-305-E3-50 AC Explosion proof * 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-2-305-E575 2-305-E575 AC Explosion proof * 250 Lb. (114 kg) 2 Pieces: L42" W42" H42"
(107 x 107 x 107 cm) each
GEK-1-305-1 1-305-1 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-1-50 1-305-1-50 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-1-230 1-305-1-230 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-3 1-305-3 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-3-50 1-305-3-50 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-575 1-305-575 AC 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-A 1-305-A Air Switch 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-E1 1-305-E1 AC Explosion proof * 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-E1-50 1-305-E1-50 AC Explosion proof * 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-E3 1-305-E3 AC Explosion proof * 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-E3-50 1-305-E3-50 AC Explosion proof * 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)
GEK-1-305-E575 1-305-E575 AC Explosion proof * 125 Lb. (57 kg) L42" W42" H42"
(107 x 107 x 107 cm)

Options for Factory Installed Enclosure with Safety Interlock
Option # Factory Installed on
Model #
(Sold Separately)		 Gate Switch Domestic Ship Weight
of Can Tumbler with Enclosure		 Domestic Ship Dimensions
of Can Tumbler with Enclosure
GEO-2-305-1 2-305-1 AC 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-1-230 2-305-1-230 AC 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-3 2-305-3 AC 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-575 2-305-575 AC 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-A 2-305-A Air Switch 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-E1 2-305-E1 AC Explosion proof * 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-E3 2-305-E3 AC Explosion proof * 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-2-305-E575 2-305-E575 AC Explosion proof * 600 Lb. (273 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-1 1-305-1 AC 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-1-230 1-305-1-230 AC 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-3 1-305-3 AC 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-575 1-305-575 AC 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-A 1-305-A Air Switch 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-E1 1-305-E1 AC Explosion proof * 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-E3 1-305-E3 AC Explosion proof * 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)
GEO-1-305-E575 1-305-E575 AC Explosion proof * 342 Lb. (155 kg) L72" W42" H46"
(183 x 107 x 117 cm)

Enclosures for Models with 50Hz Motor
Option # factory Installed on
Model #
(Sold Separately)		 Gate Switch Export Ship Weight
of Can Tumbler with Enclosure		 Export Ship Dimensions
of Can Tumbler with Enclosure
GEO-2-305-1-50 2-305-1-50 AC 600 Lb. (273 kg) L74" W43" H45"
(188 x 109 x 114 cm)
GEO-2-305-3-50 2-305-3-50 AC 600 Lb. (273 kg) L74" W43" H45"
(188 x 109 x 114 cm)
GEO-2-305-E1-50 2-305-E1-50 AC Explosion proof * 600 Lb. (273 kg) L74" W43" H45"
(188 x 109 x 114 cm)
GEO-2-305-E3-50 2-305-E3-50 AC Explosion proof * 600 Lb. (273 kg) L74" W43" H45"
(188 x 109 x 114 cm)
GEO-1-305-1-50 1-305-1-50 AC 342 Lb. (155 kg) L53" W43" H45"
(135 x 109 x 114 cm)
GEO-1-305-3-50 1-305-3-50 AC 342 Lb. (155 kg) L53" W43" H45"
(135 x 109 x 114 cm)
GEO-1-305-E1-50 1-305-E1-50 AC Explosion proof * 342 Lb. (155 kg) L53" W43" H45"
(135 x 109 x 114 cm)
GEO-1-305-E3-50 1-305-E3-50 AC Explosion proof * 342 Lb. (155 kg) L53" W43" H45"
(135 x 109 x 114 cm)

* Explosion Proof motors are rated for Class I Group D, and Class II Groups F and G.

Air powered models require plant air at 40 psi and flowing at a rate of 22 scfm. Filter, Regulator, Lubricator and valve (part # 90010-P) should be installed in the air line ahead of the motor.

Enclosures for Morse Morse PailPRO 5-gallon pail handlersCan Tumblers have a safety interlock to automatically shut off the drum rotator when the gate is opened.
