Drum dumper shown with Top Rim Clamp Option for rimmed 55-gallon plastic drum
Top Rim Clamp Option
for rimmed 55-gallon plastic drum
Drum dumper shown with Bracket Assembly Option for rimless plastic drum, and recommended for fiber drum
Bracket Assembly Option
for rimless plastic drum,
and recommended for fiber drum
Drum dumper shown with Optional Diameter Adaptor for smaller drum
Optional Diameter Adaptors
for various sizes of smaller drum
Option G-400 3-Piece Drum Holder
Option # G-400
3-Piece Drum Holder for handling ONLY a 22.5" (57.2 cm) diameter 55-gallon (210 liter) ribbed steel drum. Hinges on sides and toggle clamp closure.

Lift, Move and Dump Drum with
Air Power Lift and Tilt Controls

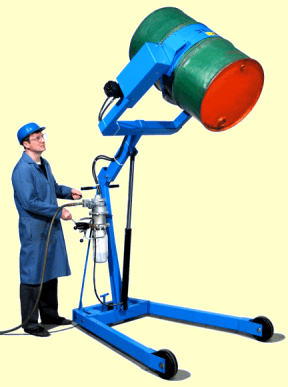

Dump drum with Morse Hydra-lift drum carrier with 96" air power lift and tilt controls
These ergonomic drum dumpers have air powered lift and tilt. Option 114 allows you to easily lift and pour a heavy drum. Simply attach to your plant airline, and you are ready to lift and pour a 55-gallon (208 liter) steel drum weighing up to 800 Lb. (363 kg).

Use model 400A-72-114 (shown) to dump drum up to 72" (183 cm) high. Maximum dispensing height is measured from floor to lowest side of horizontal 55-gallon (210 liter) drum.

Model 400A-96-114 can dump drum up to 96" (244 cm) high.

Air Motor Power-Lift and Power-Tilt to dump drum

  • Air motor powered hydraulic lift and tilt
  • Separate handles to control drum lift and drum tilt
  • Third handle controls drum lowering
  • Vane type air motor requires 40 psi at 40 scfm. Do NOT exceed 60 psi. See Air Motor Technical Info.
  • Filter, regulator, lubricator and valve (FRL) are available at extra cost.
    • Part # 3869i-P is FRL option on new unit.
    • Part # 3869-P is FRL Kit for field installation on unit with serial # 0802 or later.
    • Part # 90020-P is FRL Kit for field installation on unit with serial # 0702 or earlier.
[an error occurred while processing this directive]

Maximum drum dump height on Morse drum dumpersAvailable to dump drum at 2 different lift heights... 72" or 96" (183 or 244 cm)

Maximum lift height is measured from the floor to the lowest point of a horizontal 55-gallon (210 liter) steel drum. Hydra-Lift drum dumpers are available with 96" or 72" (244 or 183 cm) maximum lift height.


Model # Maximum Lift Height Description
400A-96-114 96" (244 cm) Air powered lift and tilt
400A-72-114 72" (183 cm) Air powered lift and tilt

Models with Spark resistant parts
Spark resistant parts reduce the possibility of mechanical sparks as a possible source of ignition.

Model # Maximum Lift Height Description
400AM-96-114 96" (244 cm) Air powered lift and tilt
400AM-72-114 72" (183 cm) Air powered lift and tilt
Air Power Lift and Tilt
Controls for air power lift and tilt to dump drum - Option 114

Controls for Air Power-Lift and Power-Tilt to dump drum

  1. Hold lever to activate LIFT and TILT controls
  2. Control TILT to dump drum
  3. Control to LIFT drum
  4. Control to LOWER drum
Options and Accessories
Option # Description
4560-P Top Rim Clamp for rimmed 55-gallon plastic drum
4560M-P Spark Resistant Top Rim Clamp for rimmed 55-gallon plastic drum
4556-P Bracket Assembly required for rimless 55-gallon drum
4556M-P Spark Resistant Bracket Assembly required for rimless 55-gallon drum
55/30 Series Diameter Adaptors for various sizes of smaller drum
55/30M Series Spark Resistant Diameter Adaptors for various sizes of smaller drum
G-400 3-Piece Drum Holder

Last Updated: 03/13/19



Air powered lift and tilt option provides an ergonomic method to lift and dump drum.
