Drum dumper shown with Top Rim Clamp Option for rimmed 55-gallon plastic drum
Top Rim Clamp Option
for rimmed 55-gallon plastic drum
Drum dumper shown with Bracket Assembly Option for rimless plastic drum, and recommended for fiber drum
Bracket Assembly Option
for rimless plastic drum,
and recommended for fiber drum
Drum dumper shown with Optional Diameter Adaptor for smaller drum
Optional Diameter Adaptors
for various sizes of smaller drum
MORStop Tilt-Brake Option # 3900i-P
Option # 3900i-P
MORStop Tilt-Brake

automatically prevents
uncontrolled drum tilting
Option G-400 3-Piece Drum Holder
Option # G-400
3-Piece Drum Holder for handling ONLY a 22.5" (57.2 cm) diameter 55-gallon (210 liter) ribbed steel drum. Hinges on sides and toggle clamp closure.

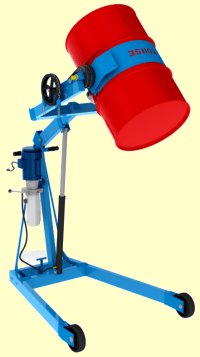

Hydra-Lift drum carrier with electric powered drum lift - model 400A-72-120
Model 400A-72-120
Hydra-Lift drum carrier
with 72" lift height and
electric powered drum lift

Electric Power Lift
Hydra-Lift Drum Karriers

Morse drum carriers with electric powered lift option provide an ergonomic method to lift and control the pouring your heavy drums. Simply plug into 115V power and you are ready to lift and pour a 55-gallon (210 liter) steel drum weighing up to 800 Lb. (363 kg).

This option retains manual tilt control of the drum with hand crank or chain wheel and pull chain. See manual tilt control options below.

Electric Power-Lift with Manual-Tilt

  • 115V AC motor powered hydraulic lift
  • Power lift makes drum handling easier and faster
  • Hold switch to control drum lift
  • Use handle to control drum lowering
  • Plug and 8' (2.4 m) cord are included

Stainless Steel Hydra-Lift Karrier - Model 400A-60SS-120

Model 400A-72SS-120

Stainless Hydra-Lift Karrier with electric power lift, and optional hand crank manual tilt.

[an error occurred while processing this directive]

Lift heights available on Morse drum dumpersAvailable in 2 different lift heights

Hydra-Lift drum dumpers are available with 72" or 96" (183 or 244 cm) maximum lift height.

Maximum lift height is measured from the floor to the lowest point of a horizontal 55-gallon (210 liter) steel drum.

Model # Lift Height Description
400A-96-120 96" (244 cm) AC Power Drum Lift, Chain Wheel Drum Tilt
400A-72-120 72" (183 cm) AC Power Drum Lift, Chain Wheel Drum Tilt
400A-60-120 72" (183 cm) AC Power Drum Lift, Hand Crank Drum Tilt

Drum Dumpers with Spark Resistant Parts
Spark resistant parts reduce the possibility of mechanical sparks as a possible source of ignition.

Model # Lift Height Description
400AM-96-121 96" (244 cm) Single Phase Explosion Proof AC Motor Powered Lift, Chain Wheel Drum Tilt
400AM-72-121 72" (183 cm) Single Phase Explosion Proof AC Motor Powered Lift, Chain Wheel Drum Tilt
400AM-60-121 72" (183 cm) Single Phase Explosion Proof AC Motor Powered Lift, Hand Crank Drum Tilt
400AM-96-122 96" (244 cm) 3 Phase Explosion Proof AC Motor Powered Lift, Chain Wheel Drum Tilt
400AM-72-122 72" (183 cm) 3 Phase Explosion Proof AC Motor Powered Lift, Chain Wheel Drum Tilt
400AM-60-122 72" (183 cm) 3 Phase Explosion Proof AC Motor Powered Lift, Hand Crank Drum Tilt

Electric Power Lift

Controls for electric power lift - Option 120

Control for Electric Power-Lift

  1. Switch to control drum LIFT
  2. Control to LOWER drum

You can also convert your existing manual lift model to AC power lift

Power Lift Kits for field installation
Printable Sheet of kits
for field installation
on your Morse drum dumper
Options and Accessories
Option # Description
4560-P Top Rim Clamp for rimmed 55-gallon plastic drum
4556-P Bracket Assembly required for rimless 55-gallon drum
55/30 Series Diameter Adaptors for various sizes of smaller drum
3900i-P MORStop Tilt-Brake
X02-400-72 Simple Hand Crank for 72" manual tilt models
X02-400-96 Simple Hand Crank for 96" manual tilt models
X03-400-72 16" Hand Wheel for 72" manual tilt models
X03-400-96 16" Hand Wheel for 96" manual tilt models
G-400 3-Piece Drum Holder
Parts Diagrams for X01, X02 and X03 Manual Tilt Control Options

Options and Accessories for Models with Spark Resistant Parts
Option # Description
4560M-P Spark Resistant Top Rim Clamp for rimmed 55-gallon plastic drum
4556M-P Spark Resistant Bracket Assembly required for rimless 55-gallon drum
55/30M Series Spark Resistant Diameter Adaptors for various sizes of smaller drum

Last Updated: 11/06/19

Electric powered lift provides an ergonomic method to lift and control dispensing of your drum.
