The Specialist In Drum Handling EquipmentPhone: (315) 437-8475       Fax: (315) 437-1029

Model 82A pouring 55-gallon steel drum
Model 82A drum palletizer

Model 82A with Top Rim Clamp Option handling rimmed 55-gallon plastic drum
Model 82A with Top Rim Clamp Option for handling your rimmed 55-gallon (210 liter) plastic drum

Model 82A with Bracket Assembly Option for handling fiber drum
Model 82A with Bracket Assembly Option required for handling a rimless 55-gallon (210 liter) plastic drum, and recommended to more secure hold a fiber drum

Diameter Adaptor for smaller drum
Select the correct size Diameter Adaptor
for each smaller diameter drum



82A Series

Drum Palletizers that pour

Morse Drum Palletizers allow you to move drums on and off shipping pallets, spill containment pallets,  and drum dollies. The V-shaped base is designed so you can raise and place a drum at the corners of a pallet. Manually tilt drum to pour at up to 26" (66 cm) high without the safety risks of manhandling heavy drums. You can rotate your drum 360 degrees end-over-end. Lock drum at horizontal to dispense, or lock drum upright to prevent spills while transporting.

Models are available with ergonomic power-lift to raise your drum with AC, DC or Air power-lift.

Lift, transport, pour and palletize drum

Drum palletizers that pour handle a 22.5" to 23.5" (57.2 to 59.7 cm) diameter drum

  • Lift upright drum up to 20" (50.8 cm) above floor.
  • Maximum dispensing height: 26" (66 cm) with horizontal drum
  • 55-Gallon (210 liter) steel drum in horizontal position reaches 18.5" (47 cm) beyond the wheels of the V-shaped base
  • Place or retrieve a drum at the corner of  pallets
  • Straddle a pallet up to 41" (104 cm) wide and 7" (17.8 cm) tall
  • Capacity: 600 Lb. (272 kg)

Effort to Tilt Drum
Effort required to tilt drum depends on several factors. A balanced 600 Lb. (272 kg) drum will pivot on the fulcrum far easier than a bottom heavy unbalanced drum of the same weight.

Options to Handle other drums
(shown left)

Base Dimensions of drum palletizers

  • 48.5" (123 cm) wide, 39" (99 cm) long
  • Overall length including handle: 42.5" (108 cm)
  • Legs are 9" (22.9 cm) high and reach 20.75" (52.7 cm) in front of upright stanchion
  • Turning radius: 53" (134.6 cm)
  • (2) 4" (10.2 cm) swivel casters at back
  • (2) 6" (15.2 cm) wheels at front
  • Counterweighted for stability

Drum mover, pourer and palletizer
Model # 82A
Drum palletizer / pourer with manual hand pump drum lift

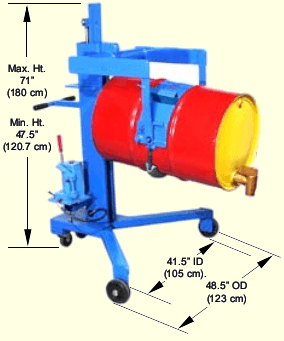

Mobile drum palletizer dimensions
Drum palletizer / pourer with battery power drum lift - Model 82A-125
Model# 82A-125
Drum palletizer / pourer
with battery power drum lift
Drum Mover / Palletizer spanning 36" pallet Straddle Pallets
Morse drum palletizers that pour drum will straddle a pallet up to 41" (104 cm) wide and 7" (17.8 cm) tall. It is shown here spanning 36" (91.4 cm) wide pallet.

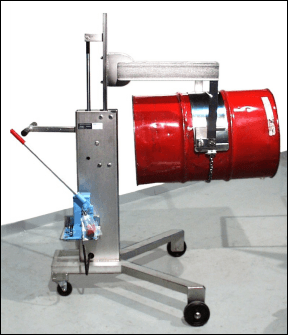

Model 82A-SS Stainless Steel Drum Mover / Pourer / Palletizer

Stainless Steel Drum Palletizers

Stainless steel models are available with DC, AC or air power lift. Model 82A-SS shown here has hand pump drum lift, and manual drum tilt.

Convert 82A Series (above)
into
82H Series (shown here)
Model 82H drum mover to lift an upright drum on and off pallets.

Install Kit # 4724-P to convert 82A Series
into 82H Series (shown here)

  • 82A Series lift, pour and palletize drum. Has band drum holder around drum.
  • 82H Series drum palletizer to move upright drum. Has jaws to grip drum top rim.

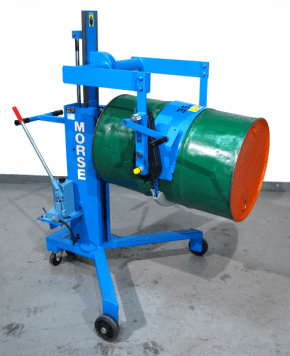

Custom drum mover / pourer / palletizer
with hand crank geared drum tilt
Custom drum mover / pourer / palletizer with hand crank drum tilt
Drum Movers - Drum Palletizers that Pour
Model # Description Power Lift Domestic
Ship
Weight
Domestic Ship
Dimensions
82A Drum Palletizer with Hand Pump Hydraulic Lift, Manual Drum Tilt - 504 Lb.
(229 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-120 Drum Palletizer with 60Hz AC Power Hydraulic Lift, Manual Drum Tilt 1PH/115V/60Hz, TEFC AC Motor 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-127 Drum Palletizer with 50Hz AC Power Hydraulic Lift, Manual Drum Tilt 1-Phase 50Hz Motor 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-124 Drum Palletizer with Air Power Lift, Manual Drum Tilt Pneumatic Cylinder and Valve 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-125 Drum Palletizer with Battery Power Hydraulic Lift *, Manual Drum Tilt 12V, DC* Motor 551 Lb.
(250 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-SS Stainless Steel Drum Palletizer with Hand Pump Hydraulic Lift, Manual Drum Tilt - 504 Lb.
(229 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-SS-120 Stainless Steel Drum Palletizer with AC Power Hydraulic Lift, Manual Drum Tilt 1PH/115V/60Hz, TEFC AC Motor 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-SS-124 Stainless Steel Drum Palletizer with Air Power Lift, Manual Drum Tilt Pneumatic Cylinder and Valve 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82A-SS-125 Stainless Steel Drum Palletizer with Battery Power Hydraulic Lift *, Manual Drum Tilt 12V, DC* Motor 551 Lb.
(250 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
* 12V DC Power Lift includes battery, and 100/220V 50/60Hz AC charger
  Options and Accessories
Part # Description Domestic
Ship Weight
Domestic
Ship Dimensions
4560-P Top Rim Clamp for your 55-Gallon Rimmed Plastic or Fiber Drum 11 Lb.
(5 kg)
L20" W9" H17"
(51 x 23 x 43 cm)
4556-P Bracket Assembly for Rimless Plastic Drum, and recommended to more securely handle Fiber Drum 18 Lb.
(8 kg)
L41" W15" H7"
(104 x 38 x 18 cm)
55/30 Series Diameter Adaptors for your smaller drums - - - -
4724-P Kit to convert 82A to 82H Drum Palletizer / Mover 35 Lb.
(16 kg)
L29" W19" H30"
(74 x 48 x 76 cm)
Morse Green Battery Option # GB Green Battery
  • Environmentally friendly Lithium Iron Phosphate Rechargeable Battery - No harmful gas or acid leaks and spills
  • Lighter than conventional lead-acid starting battery
  • Up to 2000 cycles, providing up to 8 times longer cycle life than lead-acid battery
  • No maintenance - Store up to 1 year without recharge
  • Typical design life of 5 years

Environmentally friendly battery contains no poisonous lead, no acid, and does not create gasses during charge, which regular lead-acid batteries do. Compared to lead-acid, green battery is super light, has much lower self-discharge, and does not sulfate.

Rechargeable 12.8V 19.2Ah 245.76Wh Battery requires no change to lead acid battery charging system.

Last Updated: 02/21/17
