83

Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

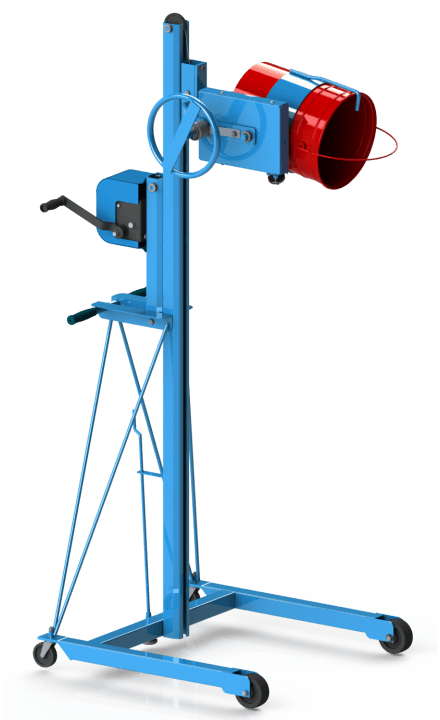

PailPRO 5-Gallon Pail Handler. Hand crank pail lift. Hand wheel pail tilt control up to 60" high.

83

Specific to model 83...
  • Dispense Pail Between Legs
  • Hand crank to raise pail
  • Works with 11" to 12" (28 to 30.5 cm) diameter pail. Measure pail diameter half-way down where holder will engage.
All Mobile Pail Handlers...
  • Safety Conscious and Ergonomic Pail Handling
  • Pour 5-gallon (19 liter) can or pail at up to 5 feet (1.5 m) high
  • Hand wheel to control pour angle
  • Adjustable Top Bracket to prevent pail from slipping length-ways
  • Handle 11” to 12” (28 to 30.5 cm) diameter pail
  • Turn can 360o in either direction
  • Step-Down Floor Lock to hold position while pouring
REQUEST QUOTE CLICK TO CALL

General

Full Capacity

150 Lb. (68.1 kg)
Dispense height60.0" (152.4 cm)
Lift styleManual lift
Tilt styleManual tilt

Shipping information

Ship length48" (121.92 cm)
Ship width40" (101.6 cm)
Ship height82" (208.28 cm)
Ship weight180 Lb. (81.72 kg)
Ship class92.5
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
1Spec Sheet
Click serial range to download.
Operators Manual and Parts Diagram
Serial range
3797-P Winch
edit icon0204 - 0311

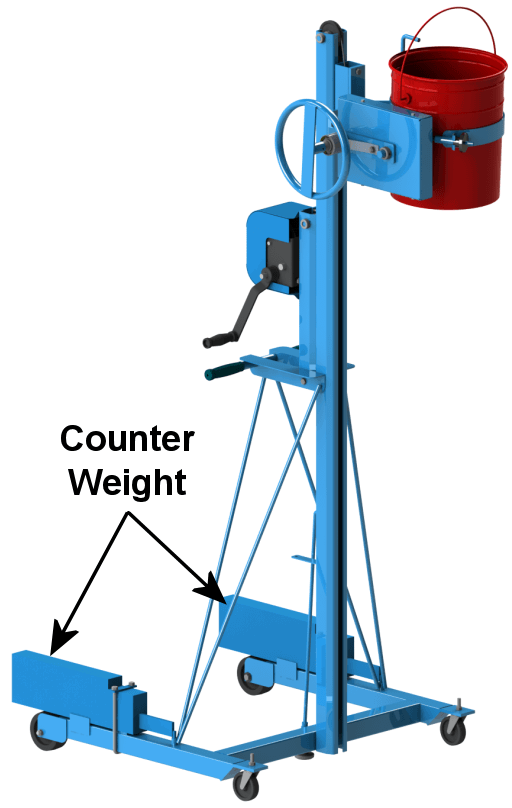

3930-P Counterweight Kit
edit icon0204 - Current
5063-P Winch
edit icon0411 - Current
83 5-Gallon Pail Handler
edit icon415107 - Current
edit icon405230 - 415106
edit icon0819 - 0822
edit icon0317 - 0719
edit icon1014 - 0217
edit icon0411 - 0914
edit icon1105 - 0311
edit icon1104 - 1005
edit icon0204 - 1004
Operators Manual
Serial range
CE Declaration of Conformity - 83
edit icon400000 - Current
1Certificate of Compliance
1Recommended Spare Parts Kit
4644X-P thumbnail image 4644X-P

Fully Enclosed Crate for export of 1 of model 83 set up. Crate is heat treated and certified IPPC compliant.

California Proposition 65 Information

...
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
