Drum Lifters with under drum support and positive grip around drum

Morse Model 86 and 86-SS Below-Hook Drum Lifters

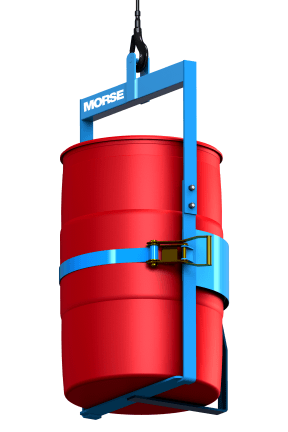

Below-the-Hook Drum Lifter - Model 86

Worry about Safely Moving Drums?

Model 86 Drum Lifter

Use this safety-conscious device to lift a drum with your crane or hoist.
Your drum is supported underneath, and secured with a positive grip web strap around the drum.

Lift a steel, plastic or fiber drum:
23" to 38" (58.4 to 96.5 cm) tall
22" to 23.5" (55.9 to 59.7 cm) diameter
Capacity: 1000 Lb. (454 kg)

Every Morse below-hook drum handler is load tested at the factory, and a load test certificate is shipped with each unit.

Model # 86 is made of carbon steel painted blue.

Drum Lifter made of type 304 stainless steel Model 86-SS Stainless Steel Drum Lifter

Need corrosion resistant materials?

Model # 86-SS Below-Hook Drum Lifter, made of type 304 stainless steel, has the same design and is designed for the same types of drums as model 86.

What's it Good for?

- Marine applications
- Food, pharmaceutical and chemical facilities
   - Provides wash-down capability
   - Eliminates the possibility of paint chipping




Options
Option 6318i-P Cinch Chain Factory Installed on Model 86 Option # 6314i-P
Cinch Chain and Ratchet
Factory installed on new model 86


This option is often preferred in applications with caustic or abrasive materials. The alloy cinch chain is a longer lasting option, more resistant to wear, heat, chemicals, etc.

Kit # 6314-P
Cinch Chain and Ratchet
for customer to install on model 86
Kit # 6314-P Cinch Chain and Ratchet to install on model 86
Diameter Adaptor to adapt from 22.5" to 19" diameter55/30 Series Diameter Adaptors for smaller drums

Morse model 86 and 86-SS Below-Hook Drum Lifters with under-drum support and no tilt function.
