Drum Cradles to move, position and dispense drum

Drum Cradle Trucks / Tilting Drum Stands
Drum Carts / Drum Upender / Drum Tipper

Model 40 and Model 40-30 55-Gallon Drum Cradles / Drum Stands / Drum Carts
Drum Cradle Truck model 40 shown with Tipping Lever model 31 to break over and dispense drum
Model 40 and Model 40-30 Drum Cradles / Drum Carts. Use as shown with model 31 Tipping Lever (sold separately) to position drum for dispensing

Drum Cradle Trucks for drum up to 700 Lb. (318 kg)

Model 40 55-Gallon Drum Cradle / Drum Stand - Use as shown with Model 31 Tipping Lever (sold separately) to position drum for dispensing



Model 40  -  55-Gallon (210 Liter) Drum Cradle Truck

  • Designed for a standard 55-gallon (210 liter) drum
  • Four MORTUF polyolefin wheels, 3" (7.6 cm) diameter
  • Rugged angle iron construction
  • Use with Model 31 Tipping Lever (sold separately) to assist loading and to break over and dispense drum
  • Capacity: 700 Lb. (318 kg)

Morse Model 40 Drum Cradle Dimensions Dimensions
The top rim of a 55-gallon (210 liter) steel drum is 18.5" (47 cm) from the floor when in horizontal position on the model 40.

Shipping Information

Ship weight:
32 Lb. (14.5 kg)

Ship dimensions:
L34" W21" H4"
(86 x 53 x 10 cm)

Model 40-30  -  30-Gallon (114 Liter)  Drum Cradle Truck (not shown)

30-gallon drum stand - Use with Model 31 Tipping Lever

  • Drum Cradle for your 30-gallon (113.5 liter) steel drum
  • Capacity: 700 Lb. (318 kg)

Domestic ship weight: 31 Lb. (14 kg)
Domestic ship dimensions: L33" W21" H4" (84 x 53 x 10 cm)

Model 31  Tipping Lever for Use with Model 40 or 40-30


Model 31 Tipping Lever is sold separately.

Use with model 40 55-Gallon Drum Cradle Truck or with model 40-30 30-Gallon Drum Cradle Truck

Tipping Lever to facilitate one-man loading drum onto model 40 or model 40-30 Drum Cradles. Assists in pulling over a heavy drum from upright onto the drum cradle. Constructed with 40" (101.6 cm) steel tubing with malleable iron double hook to engage the upper rim of drum.

Ship weight: 5 Lb. (2.3 kg)
Ship dimensions: L41" W15" H7" (104 x 38 x 18 cm)

Model 36 and Model 36-SS  55-Gallon Drum Cradle Trucks with Retractable Tipping Lever
Morse model 36 Drum Cradle Truck - 55-gallon barrel tipper
Model 36
55-Gallon barrel tipper

Model 36  55-Gallon Drum Cradle Truck

Model 36-SS  Stainless Steel 55-Gallon Drum Cradle Truck

Rock-over style drum cradle trucks are intended for use with a drum up to 500 Lb. They include a retractable tipping lever, an all-welded frame, and 4 MORTUF polyolefin 3" wheels. This 55-gallon barrel tipper is shipped complete. In pouring position to dispense drum, the top rim of a 55-gallon (210 liter) steel drum is 15.5" (39.4 cm) from the floor.

  • Designed to dispense a standard 55-gallon (210 liter) drum
  • Capacity: 500 Lb. (227 kg)
  • Domestic ship weight: 30 Lb. (14 kg)
  • Domestic ship dimensions: L29" W19" H30" (74 x 48 x 76 cm)
  • Ship by UPS

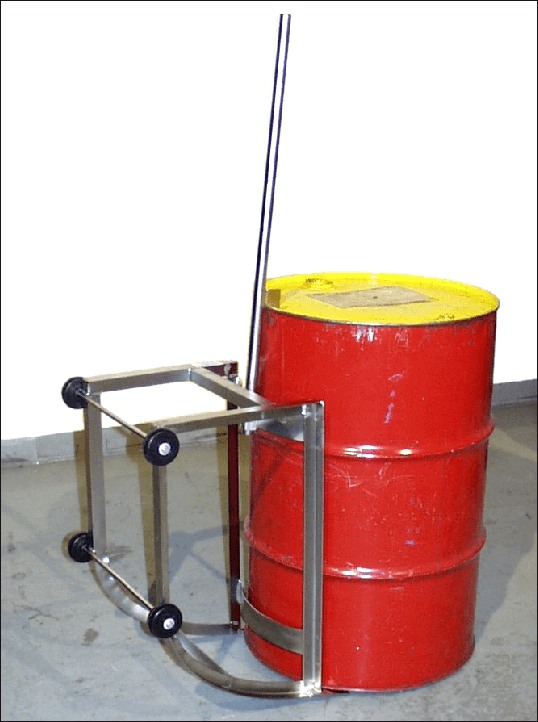

Custom stainless steel 55-gallon drum cradle / barrel tipper
Model 36-SS
Stainless Steel Drum Cradle

Model 46 Drum Cradle Truck for 15-Gallon Drum (57 liter drum)
15-gallon Drum Cradle Truck - Model 46
15-Gallon Cradle Truck

Model 46 Drum Cradle Truck to dispense from a 15-Gallon (57 liter) Drum

This steel framed drum cradle truck is specifically designed to handle a 15-gallon (57 liter) drum. Ergonomic 2-stage rock-over loading eliminates drum lifting. In pouring position, the drum rim will be 13.75" (35 cm) above floor for dispensing into your 5-gallon pail.

Model 46 15-Gallon Drum Cradle has 4 MORTUF chemically resistant polyolefin wheels mounted outside the frame, for added stability.

  • Capacity: 500 Lb. (227 kg)
  • Ships ready-to-use via UPS

Welded steel frame: L22" W18" H17" (56 x 46 x 43 cm)
Wheels: 3" diameter x 1" wide (7.6 x 2.5 cm)
Domestic ship weight: 20 Lb. (9 kg)
Domestic ship dimensions: L24" W19" H18" (61 x 48 x 46 cm)


Model 32 Drum Upender / Drum Tipper

Model 32 Drum Upender / drum tipper

Model 32 Drum Upender / Drum Tipper
Designed to help move a drum laying on its side on the floor, to upright position

The Morse Drum Upender / drum tipper provides leverage to raise a horizontal drum to vertical position.

IMPORTANT: The Drum Upender is NOT designed to safely lower an upright drum, to horizontal position.

Capacity: 500 Lb.
Overall length of Drum Upender: 38.25" (97.2 cm)

Domestic ship weight: 12 Lb. (5.44 kg)
Domestic ship dimensions: L41" W15" H7" (104 x 38 x 18 cm)



Last Updated: 08/28/17
