Adjust walkie leg straddle from 38" to 50" (96.5 to 127 cm) in 4" (10.16 cm) increments to work with various size pallets.

Internal 24V battery plugs into standard 110V AC outlet. Fully charge from empty in about 8 hours.


Option # EBC-900
Option for Export Battery and 230V 50Hz Charger

Morse < PILOT > Power-Propelled Drum Handler Logo
Power-Propelled Walk-Behind Drum Handlers Improve Productivity


The new Morse < PILOT > Self-Propelled Drum Handlers feature intuitive, industry-standard throttle, steering and drum positioning controls.

  • Lift up to a 1500 Lb. (680 kg) drum
  • Control power-propelled walkie travel speed with ergonomic twist grip
  • Raise drum up to 10.5 feet (3.2 m) high
  • Raise or lower control handle to actuate walkie brake, and feather for accurate payload positioning
  • Built-in Safety Systems
    • When released, the walkie handle returns to upright position and applies the "dead-man" brake
    • A "Belly-button" switch helps prevent operator being pinned. Upon contact, it activates low speed reverse direction.
PILOT Power-Propelled Drum Pourer
Power-Propelled Drum Pourer Video
Walkie Drum Handler from the Perspective of the Drum
Video from the Drum's Perspective
Morse < PILOT > Power-Propelled Drum Handler Logo
Drum Movers / Pourers
Morse < PILOT > Power-Propelled Drum Handler Logo MORStakTM
Drum Mover / Racker
Morse < PILOT > Power-Propelled Drum Handler Logo MORSPEEDTM
Drum Mover / Stacker
Morse < PILOT > Power-Propelled Drum Pourer Morse < PILOT > Power-Propelled Drum Racker Morse < PILOT > Power-Propelled Drum Mover / Stacker

< PILOT > Model # 900

Lift and Pour a Drum up to 10.5 feet (3.2 m) high.

Power-propelled drum handler to transport, lift and dispense a drum up to 10.5 feet (3.2 m) high! Fully invert your drum in just 8 seconds with familiar ergonomic controls.

Capacity is 1500 Lb. (680 kg) for a full drum,
and 800 Lb. (363 kg) for a half-full drum*

< PILOT > Model # 905
Scale-Equipped Drum Pourer

Adds the ability to weigh while you pour, so you can dispense just the amount you need.

Scale-equipped self-propelled walkie drum handlers allow you to weigh your drum while you pour to dispense precise amounts as needed. They eliminate the need for a separate weighing station. You control the drum pouring angle and height while you dispense.

Capacity is 800 Lb. (363 kg) for a full drum,
and 500 Lb. (227 kg) for a half-full drum*

< PILOT > Drum Pourers Feature the
MORCINCHTM Drum Handling System

It's a Cinch to handle almost any drum, with the
MORcinch Drum Handling System

Drum Handling System


  • Drum holder automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter drum
  • Accepts MORCINCH TM Options to handle your plastic drum
  • Accepts Diameter Adaptors for your smaller drums
  • Includes safety covered gears for your protection
  • Has durable stress-relief weld joints for years of service
  • Cinch chain has flexible chain cover to help protect drum sidewall
  • Polyester Web Strap and Ratchet Option

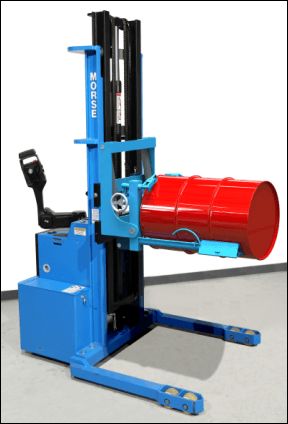

< PILOT > Model # 910

Rack a Drum Horizontally up to 10.5 feet (3.2 m) high.

Power-propelled walkie stacker to rack your 55-gallon (208 liter) steel or plastic drum with top rim up to 10.5 feet (3.2 m) high! This safety conscious self-propelled MORStakTM Drum Racker, allows you to move drums on and off racks, pallets, trucks, etc. Lift an upright drum and place in horizontal position.

Rack rimmed 55-gallon steel or plastic drums side by side with virtually zero clearance between them. Handle your drum with a drum faucet in place allowing your drum rack to serve as a dispensing station.

Capacity is 800 Lb. (363 kg).

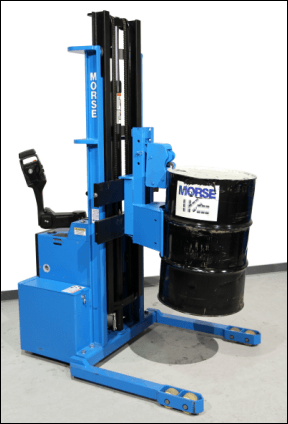

< PILOT > Model # 915

Move and Stack an Upright Drum up to 10 feet (3 m) high.

Power-propelled walkie stacker to lift and transport an upright drum up to 10 feet (3 m) high. The MORSPEEDTM drum grabber is a proven, safety conscious way to handle drums.

Lift and move almost any rimmed steel, fiber or plastic drum, regardless of diameter. This self-propelled walkie stacker requires no manual contact with drum, utilizing a completely mechanical and automatic drum grab as you raise against the side of your drum. Mechanism automatically releases drum when you set it down on floor, shelf, pallet, etc.

Note: Requires a minimum drum height of 24" (61 cm), and minimum drum weight of 75 Lb. (34 kg) to activate the drum gripping mechanism.

Capacity is 1500 Lb. (680 kg).

* Half-full rating is an indication of capacity for tilting an unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than a full drum.
