Modelo 620-115

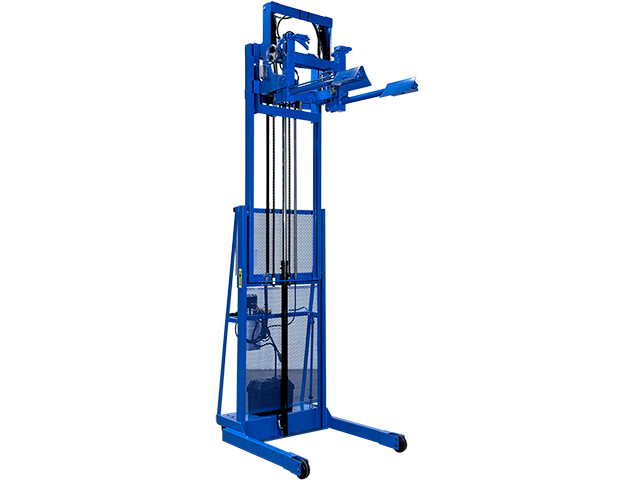

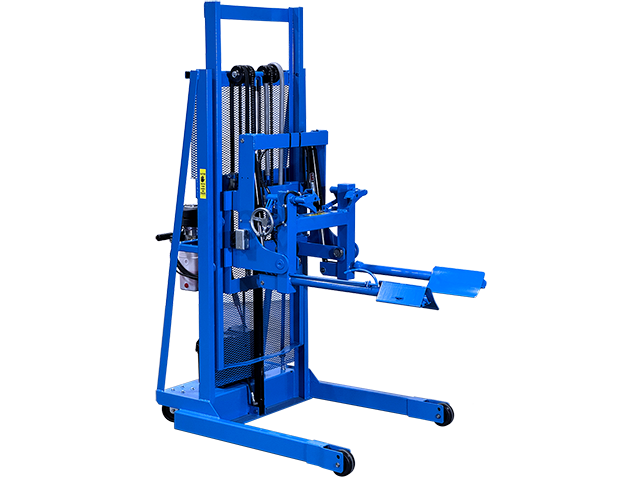

El modelo 620-115 tiene una batería de 12 V de corriente continua para levantar e inclinar; incluye batería y cargador Eleva e inclina un bidón vertical de acero o plástico de 210 litros, lo inclina hasta la posición horizontal y lo coloca uno al lado del otro en la estantería Tiene un bastidor de 2 etapas con una altura máxima de estantería de 2,59 m Apila los bidones uno al lado del otro sin dejar prácticamente ningún espacio libre Tiene un radio de giro de 174 cm (68,25")

Todo sobre Modelo 620-115
Específico para Modelo 620-115
Todos MORStak Drum Rackers - Rack Up to 8.5' High
  • Elimina la peligrosa manipulación de bidones con horquillas desnudas Coloque un bidón RIMMED de acero o plástico de 55 galones (210 litros) uno al lado del otro sin dejar prácticamente espacio libre Coloque un bidón en posición HORIZONTAL Coloque el bidón con el grifo en su sitio Dispone de control motorizado de elevación e inclinación del bidón
No image available EB

OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment

EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.

GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life.

No image available NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.

No image available NC

OPTION: No Charger. Customer must obtain 12V charger.

No image available PB

OPTION: Factory Installed Premium 12V Battery on NEW drum handler

No image available TB-600

OPTION: Factory Installed extra battery and charger on NEW 600 Series MORStak Drum Racker to double duty cycle

No image available TPB-600

OPTION: Factory Installed 2 premium batteries and 2 chargers on 600 Series MORStak Drum Racker. Doubles duty cycle.

No image available 1111i-p

option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold.

4173Xi-P thumbnail image 4173Xi-P

Fully enclosed crate for export of 515, 525, 611 or 620 Series. Crate is heat treated and certified IPPC compliant.

No image available 6659-P

SEAL KIT FOR 1-1/2" CLYINDER

No image available 6748-P

KIT, SEAL, 2" CYL, 5522K-P

No image available FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil

No image available LTC4

Load test one unit at Morse factory and ship with Load Test Certificate. NOT for Below-Hook model.

No image available SCW-600

OPTION: Factory Installed static conductive wheels and casters on NEW 600 Series. Have conductive rubber tread.

No disponible.
sticky note Los números de serie de 4 dígitos son simplemente el mes y el año de fabricación.
Ejemplo: 1120 es noviembre de 2020
Material Safety data sheet
Serie

388-P Battery Safety Data Sheet

NOCO Premium Plus Automatic Transmission fluid
Pneumatic / Hydraulic Schematic
Serie

611-115 & 620-115 Hydraulic Schematic
Parts Diagram
Serie

Base Assembly

DC Power Lift and Tilt Components

Drum Grab Assembly

Hydraulic Lift Cylinder

Hydraulic Power Pack

Hydraulic Tilt Cylinder

Yoke / Carriage Assembly
Operators Manual
Serie

Battery Charger

Battery Charging Information

CE Declaration of Conformity - 620

MORStak Drum Racker
611
611 Vídeo
Click to play

Especificaciones

Capacidad máxima

363.20 kg (800 Lb.)

Eslora del barco 187.96 cm (74")
Anchura del barco 121.92 cm (48")
Altura del barco 210.82 cm (83")
Peso del buque 457.63 kg (1008 Lb.)
Clase de buque 150
