Modello 91

Sollevatore di fusti a gancio inferiore per fusti in acciaio da 22,5"-26" (57,2-66 cm). Posiziona il fusto d'acciaio da 55 g. nel sovraimballaggio/fusto per il recupero. Viene fornito con certificato di prova di carico.

Tutto su Modello 91

Specifico per Modello 91

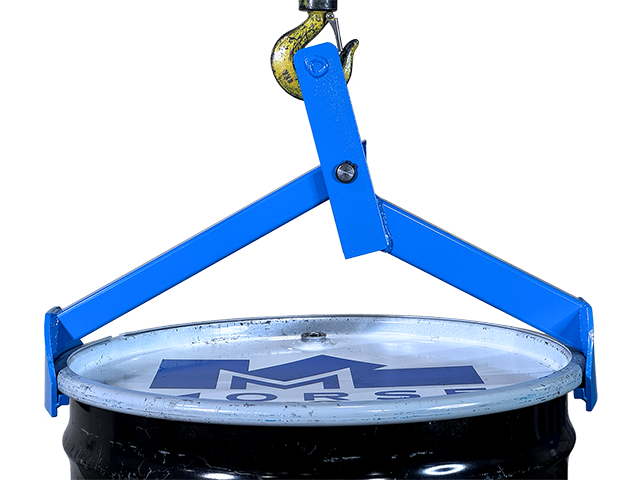

  • Lift an upright RIMMED Steel 55-gallon (210L) Drum with your hoist
  • Lift drum with 22.5" to 26" (57.2 to 66 cm) diameter under the top rim

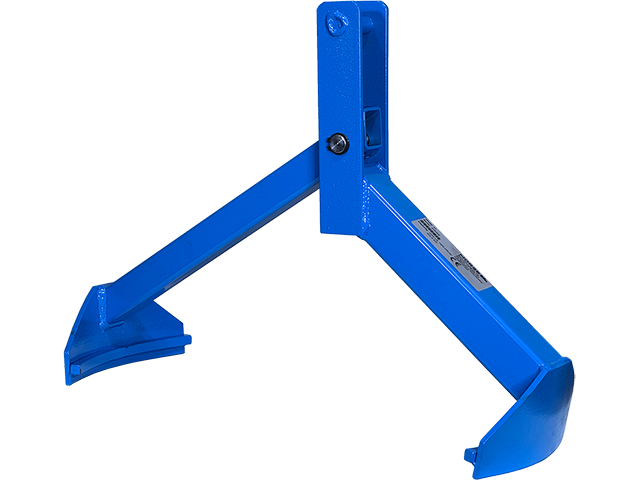

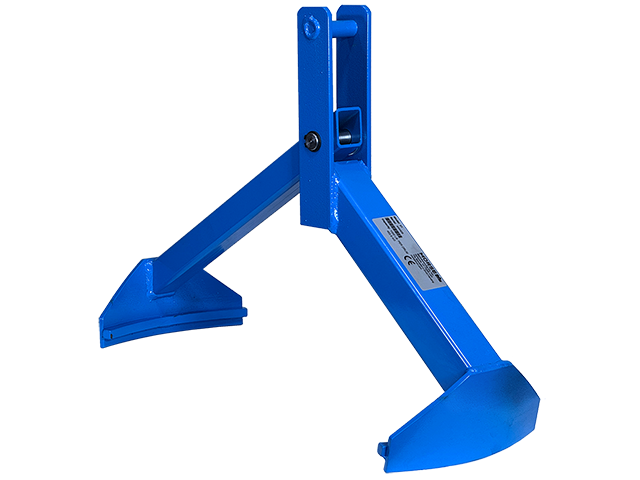

  • Simple tong-like geometry with narrow profile drum lifter with broad faced grip pads
  • Place steel 55-gallon (210 liter) drum into overpack or salvage drum

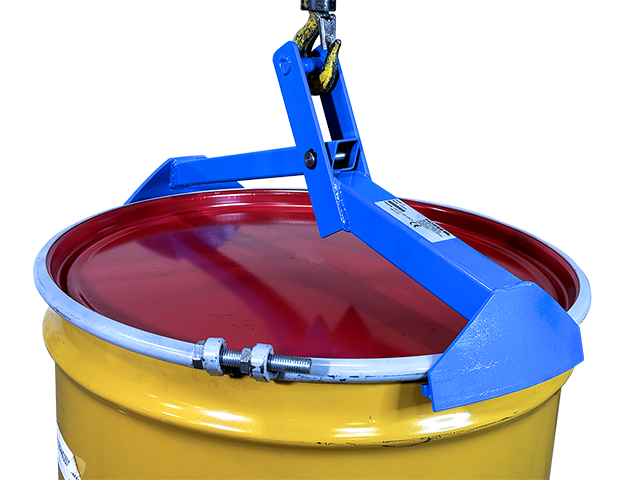

  • Lift steel 85-gallon (322 liter) overpack drum
  • Every unit is individually load tested at the factory at 125% of rated capacity, and ships with load test certificate
Tutti Drum Lifters
  • Each Morse below-hook drum lifter is load tested and ships with load test certificate
  • Complies with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:
  • Rated load markings and unit identification
  • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
  • Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
  • All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1
  • Comply with ANSI/ASME B30.20 standard. They are ASME BTH-1 DESIGN CATEGORY B and ASME BTH-1 SERVICE CLASS 1.
2832X-P thumbnail image 2832X-P

Cassa completamente chiusa per l'esportazione di 1 modello 91 o 92. La cassa è trattata termicamente e certificata conforme alla normativa IPPC.
Non disponibile.
1Spec Sheet
1Dimensions
1Certificate of Compliance
Operators Manual
Gamma seriale
Dichiarazione di conformità CE
edit icon400000 - Attuale
Drum Lifter
edit icon0414 - Attuale
Parts Diagram
Drum Lifter
edit icon0414 - Attuale
Operators Manual and Parts Diagram
Drum Lifter
edit icon0000 - 0314

Non ci sono video disponibili.

Specifiche tecniche

Piena capacità

454.00 kg (1000 Lb.)
Lunghezza della nave 53.34 cm (21")
Larghezza della nave 25.40 cm (10")
Altezza della nave 45.72 cm (18")
Peso della nave 8.63 kg (19 Lb.)
Classe della nave 100
