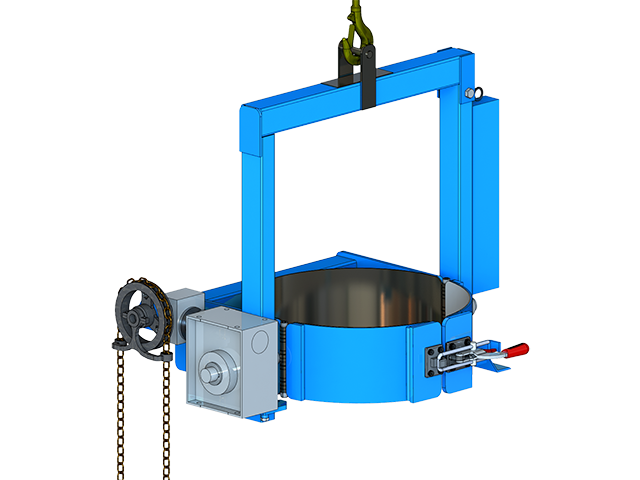

Super-Duty Below-Hook Drum Carrier with Spark Resistant Parts - Model 185XMGR

Model 185XMGR

Super-Duty Below-Hook Kontrol-Karrier with Spark Resistant Parts. Lift and pour drum with your crane. 3-Piece drum holder specifically designed for a 55-gallon (210 liter) steel drum.

Specifications

Full capacity

1,135.00 kg (2500 Lb.)
Half capacity 567.50 kg (1250 Lb.)

Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
Ship length 106.68 cm (42")
Ship width 106.68 cm (42")
Ship height 38.10 cm (15")
Ship weight 118.04 kg (260 Lb.)
Ship class 77.5
All about Model 185XMGR
  • Model 185XGR has Spark Resistant Parts to reduce the risk of mechanical sparking in environments with flammable or explosive materials
  • 3-Piece Drum Holder to secure a 22.5" (56 cm) diameter 55-gallon (210 liter) steel drum
  • Worm gear speed reducer for drum tilt control with 150:1
  • Morse Kontrol-Karriers provide safety conscious high-level drum pour with your crane
  • Pull Chain Manual Drum Tilt Control
  • Geared drum drum rotation 360° in either direction
  • Lift and invert drum with drum faucet in place
  • Safety-conscious drum handling by one person
  • IMPORTANT: Each Morse below-hook drum handler is individually load tested at the factory at 125% of rated capacity, and ships with Load Test Certificate enclosed
2998X-P thumbnail image 2998X-P

Fully enclosed crate for export of 185GR Series or model 185XGR. Heat treated and certified IPPC compliant.
X03-185GR thumbnail image X03-185GR

OPTION: Factory installed 10" diameter hand wheel on NEW model 185A-GR or 185XGR. Replaces pull chain drum tilt control.
Not available.
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
1Spec Sheet
Operators Manual
Serial range
Boston Speed Reducers
edit icon1298 - 0722
Super-Duty Kontrol-Karrier
edit icon404516 - Current
Parts Diagram
Serial range
Counterweight Kit
edit icon1010 - 0619
Drum Holder Assembly
edit icon404516 - Current
Speed Reducer
edit icon0798 - 0519
Super-Duty Kontrol-Karrier
edit icon404516 - Current
Operators Manual and Parts Diagram
Serial range
Super-Duty Kontrol-Karrier
edit icon0719 - 0722
1Certificate of Compliance
