Model 92-5

PailPRO Below-Hook Lifter for 11-15" (27.9-38.1 cm) diameter steel, plastic or fiber pail or can. Ships with load test certificate.

Specifications

Full capacity

454.00 kg (1000 Lb.)

All about Model 92-5

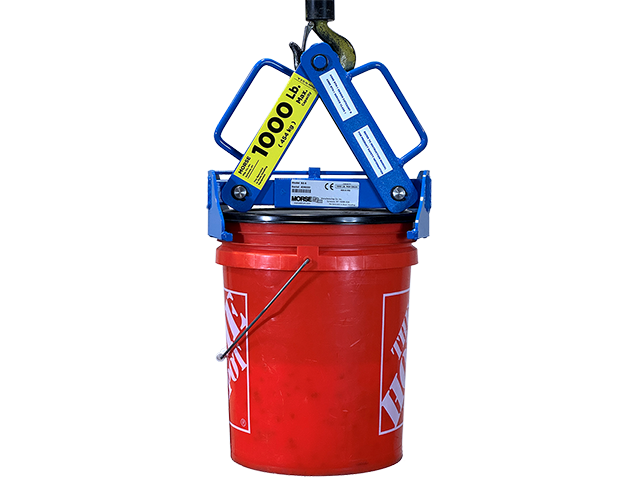

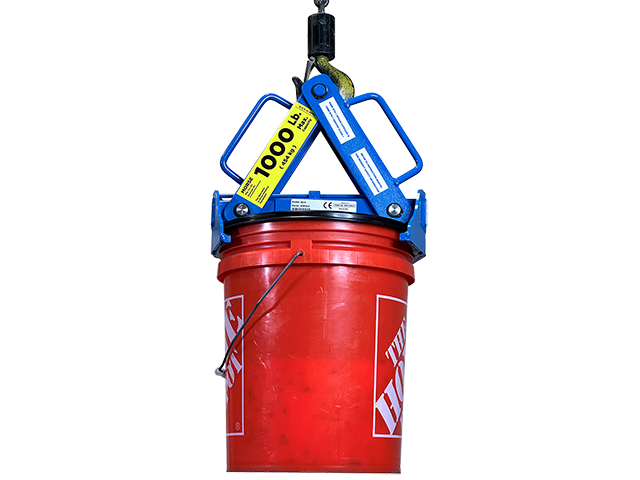

Lift an upright RIMMED steel, plastic or fiber 5-gallon (20 Liter) can or pail with your hoist
Lift drum with 11" to 15" (27.9 to 38.1 cm) diameter under top rim
Drum lid MUST be on and secure
Self-adjusting tong-like action when you raise the hook
Every unit is individually load tested at the factory at 125% of rated capacity, and ships with load test certificate

Morse Below-Hook Drum Lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:
- Rated load markings and unit identification
- Minimum design safety factor of 3, based on yield strength, for load bearing structural components
- Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
- All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1
