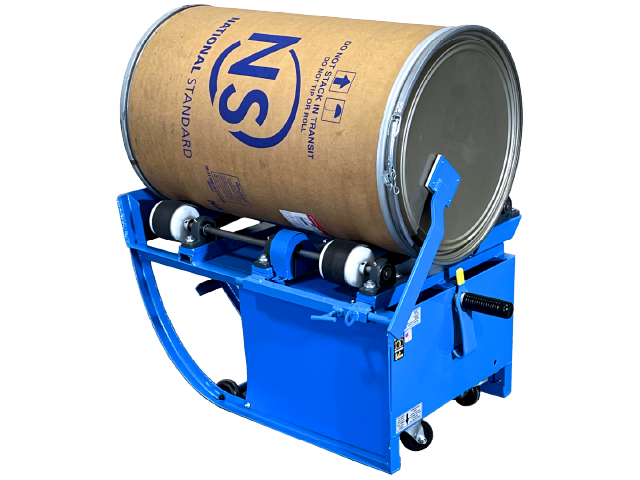

Model 201BVS-1-50

Belted Portable Drum Roller, Variable Speed. Fiber drum ONLY. 1-Phase 110/220V 50Hz Motor. CE REQUIRES Enclosure with Interlock.

Specifications

Drum RPM	13 to 20 RPM RPM is based on 22.5" (57.15 cm) diameter drum.
Liquid capacity	136.20 kg (300 Lb.)
Dryload capacity	136.20 kg (300 Lb.) A shifting dry load exerts greater stress on the drum rotator than the fluid motion of a liquid load.

Motor Controls sold separately.

All about Model 201BVS-1-50

Model 201BVS-1-50 has 1/2 HP single-phase 110/220V 50Hz motor
ONLY for country with 50Hz power supply
Roll FIBER drum on two 6.35 cm (2.5") wide belts
Vary drum rolling speed from 15 to 24 RPM, based on 57 cm (22.5") diameter
ONLY for rolling a FIBER drum
- With 41 to 58 cm (16” to 23”) diameter
- Up to 89 cm (35") tall
REQUIRES Electric Controls to Start / Stop Rotator
Electric Control Package sold separately
- Model CP-201-1-220-50 for single-phase 220V 50Hz power supply
Safety Enclosure with Interlock sold separately as Kit GEK-201-1

IMPORTANT: OSHA, CSA and EU REQUIRE Safety Enclosure with Interlock
Mix contents of a closed drum with a Compact, Portable Drum Roller
Roll closed drum on its side to blend ingredients
Tipping lever assists tilting drum onto roller. Engages drum 30" (76.2 cm) or taller.
Maximum ambient operating temperature for Electric models: 140F (60C) and AIR models 195F (90.5C).
Factors to consider
- Ribs of rigid steel drum prevent traveling length-ways on roller
- Soft sided plastic drums require support of extra wheels and end stop to prevent drum travel
- Fiber drums require a belted drum roller with end stop

	2836X-P Fully enclosed crate for export of 285, 285HD Series or 201+CP(NO GEK). Crate is heat treated and certified IPPC compliant.
	CP-201-1-220-50 Control Package for 201 Portable Drum Roller. 1-Phase 220V 50Hz. Timer, Start/Stop, Emergency Stop, Lockable Fused Disconnect.
	GEK-201-1 Kit: Enclosure with Safety Interlock for CUSTOMER to install with 201 1-Phase AC Portable Drum Roller. SHIPS SEPARATELY W/ 2ND FREIGHT BILL
	2844Xi-P Fully enclosed crate for export of 201 Series. Heat treated and certified IPPC compliant.
	4109Xi-P Fully enclosed crate for export of 201 Series with Enclosure Kit (NOT set up). Crate is heat treated and certified IPPC compliant.
