85I
Model 85i Below-Hook Drum Carrier
Model 85i
Model 85i shown with Bracket Assembly Kit 4556-P installed. Kit 4556-P sold separately.
Model 85i shown with Diameter Adapter 55/30-17.5 for 17" to 17.5" diameter drum. Adapter sold separately.
85i
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

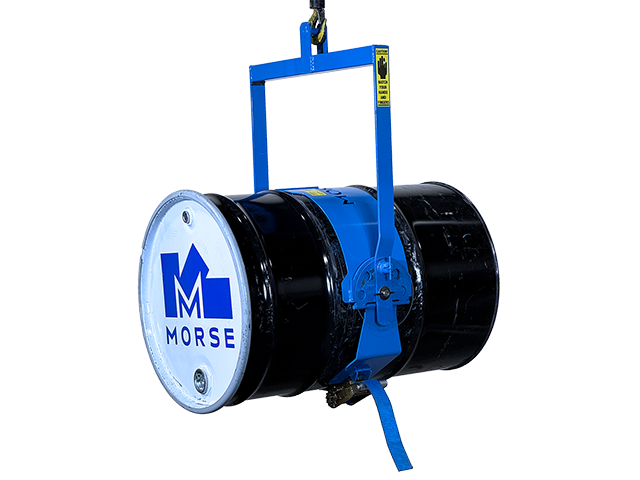

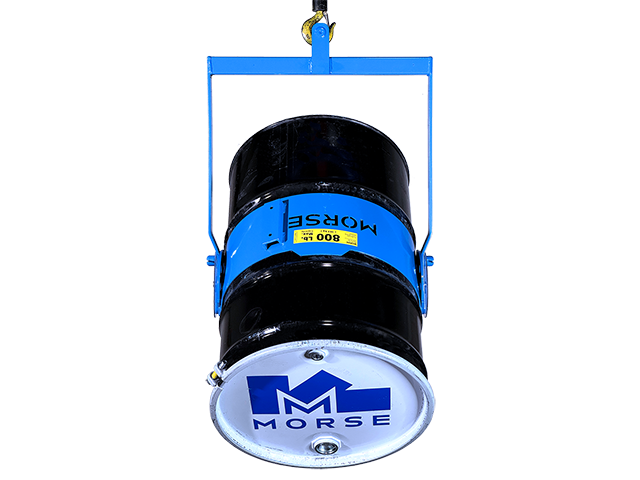

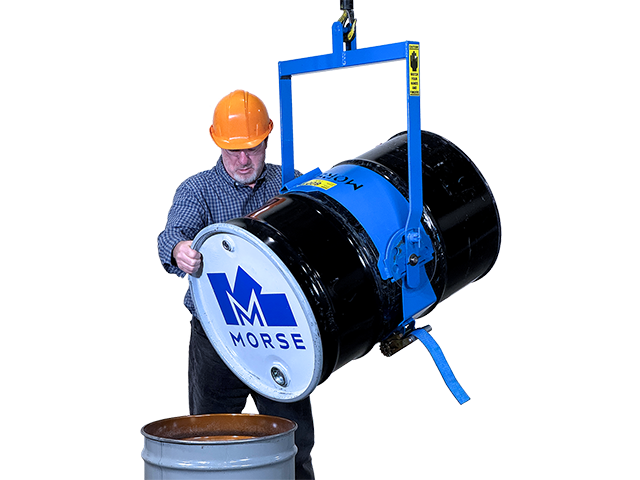

Porta bidones con gancho inferior Eleva y vierte un bidón de acero estándar de 210 litros (55 galones) con un diámetro de 57,2 cm (22,5") entre las costillas Correa de red con trinquete para asegurar el bidón Agarre el bidón con la mano y gire 360o para verterlo Bloquee el bidón en posición horizontal o a 45o para verter Bloquear con el bidón en posición vertical para transportarlo Instale los KIts MORCINCHTM para manipular un bidón de plástico o de fibra Inserte el diámetro correcto Adaptador de un bidón más pequeño Probado en fábrica y enviado con certificado de prueba de carga
85I
General
| Capacidad total | 800 Lb. (363.2 kg) |
Dimensiones de envío
| Capacidad semi llena | 39" (99.06 cm) |
| Anchura del buque | 27" (68.58 cm) |
| Altura del buque | 10" (25.4 cm) |
| Peso del buque | 50 Lb. (22.7 kg) |
| Clase de buque | 77.5 |
Los números de serie de 4 dígitos son simplemente el mes y el año de fabricación. Ejemplo: 1120 es noviembre de 2020
 |
55/30-14.5 Diameter Adapter for 14"-14.5" (35.6 -36.8 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
 |
55/30-16 Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
 |
55/30-17.5 Diameter Adapter for 17"-17.5" (43.2 -44.5 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
 |
55/30-19 Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
55/30-20.5 Diameter Adapter for 20"-20.5" (50.8-52.1 cm) diameter drum. Measure diameter 1/2-way down drum. |
 |
55/30-22 Diameter Adapter for 21.5-22" (54.6-55.9 cm) diameter drum. Measure diameter 1/2-way down drum. |
 |
4556-P Kit: Bracket to prevent plastic or fiber drum from slipping length-ways |
 |
55/30-32G Diameter Adapter for 32-Gallon (121 liter) Rubbermaid Brute Model 2632. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted. |
|
55/30-44G Diameter Adapter for 44-Gallon (167 liter) Rubbermaid Brute Model 2643. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted. |
 |
4560B-P KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping |
 |
6075I-P OPTION: Factory Installed cinch chain in place of ratchet web strap on NEW 80i, 85i or 82A Series |
 |
6315-P Fork Pocket Kit: Add fork pockets to below-hook drum lifter |
Información de la Proposición 65 de California
Para obtener más información, visite www.P65Warnings.ca.gov
Opciones populares
View all options
Kit: Bracket to prevent plastic or fiber drum from slipping length-ways
Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum.
KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping
Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
