MORCINCH Drum Handling System

MORCINCH Kits to Handle a Plastic Drum, a Fiber Drum, or a Smaller Drum


Key features

  • The MORCINCHTM Drum Holder Automatically Adjusts for a 22" to 23.5" (55 to 59.7 cm) diameter drum
  • Install the correct MORCINCHTM Kit to handle a plastic or fiber drum with the same Morse drum handler
    • Top Rim Clamp Kit to handle a RIMMED 55-gallon (210 liter) plastic drum
    • Bracket Assembly Kit is required to safely handle a RIMLESS 30 to 55-gallon (114 to 210 liter) plastic drum
  • Insert the correct size Diameter Adapter to handle a smaller diameter drum
  • Web Strap and Ratchet Option to secure drum in MORCINCHTM drum holder

Request Quote Model Chart



MORCINCHTM Kits allow you to handle a 55-gallon (210 liter) plastic drum, a steel drum, a fiber drum, or even a smaller drum with one Morse drum handler. Many Morse drum handlers accept MORCINCHTM Kits to handle your 55-gallon plastic drum. A well designed plastic drum handler must take into consideration the fact that plastic drums are flexible and lack the supporting ribs that are on most steel drums. MORCINCHTM Kits are designed to prevent a plastic drum from slipping through the drum holder. To ensure safety, choose the correct 55-gallon plastic drum holder for your particular drum.



MORCINCH Top Rim Clamp

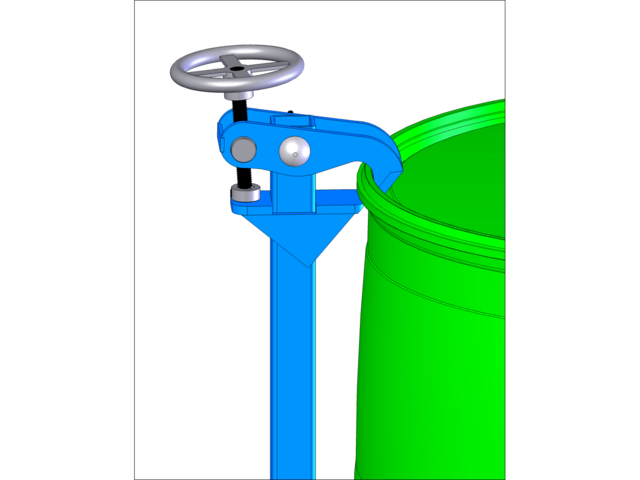

MORCINCHTM Top Rim Clamp
Top Rim Clamp grips the upper rim of a RIMMED 55-gallon (210 liter) plastic drum to prevent it from slipping. It bolts onto the MORCINCHTM Drum Holder.
  • Kit # 4560-P (shown) Rim Clamp Kit for customer to install on MORCINCHTM Drum Holder
  • Kit # 4560M-P Spark Resistant Rim Clamp Kit for customer to install on MORCINCHTM Drum Holder
  • Kit # 4560SS-P Stainless Steel Rim Clamp Kit for customer to install on MORCINCHTM Drum Holder



MORCINCH Bracket Kit

MORCINCHTM Bracket Kit
The Bracket is required to safely handle RIMLESS plastic drum, and recommended to more securely handle a fiber drum. Braces at top and bottom of drum prevent it from slipping.
  • Kit # 4556-P (shown) Bracket Kit for customer to install on MORCINCHTM Drum Holder
  • Kit # 4556M-P Spark Resistant Bracket Kit for customer to install on MORCINCHTM Drum Holder
  • Kit # 4556SS-P Stainless Steel Bracket Kit for customer to install on MORCINCHTM Drum Holder




MORCINCH Bracket for use with a Drum Cone

MORCINCHTM Bracket for use with Drum Cone
The Bracket for use with Drum Cone on drum prevents a plastic drum from slipping. It has a bracket under the drum, and a hook that engages the Clamp Collar that holds the Drum Cone on the drum.
  • Kit # 4556C-P (shown) Bracket Kit for customer to install on MORCINCHTM Drum Holder for use with Drum Cone
  • Kit # 4556CM-P Spark Resistant Bracket Kit for customer to install on MORCINCHTM Drum Holder for use with Drum Cone
  • Kit # 4556CSS-P Stainless Steel Bracket Kit for customer to install on MORCINCHTM Drum Holder for use with a Drum Cone. This Bracket has a copper alloy hook to engage the Cone Clamp Collar.



MORCINCH Web Strap and Ratchet Option

MORCINCHTM Factory Installed Web Strap and Ratchet Option
Web Strap has broad polyester belt that conforms to drum and is gentle to drum finish. To secure drum, operate ratchet quickly and simply with large handle.

Factory Installed Web Strap and Ratchet Options

Kits for customer to Convert Existing MORCINCHTM Drum Holder
  • Kit # 5115-P Web Strap and Ratchet for customer to install on MORCINCHTM drum holder
  • Kit # 5115M-P Web Strap with Spark Resistant parts for customer to install on spark resistant MORCINCHTM drum holder
  • Kit # 5115SS-P Web Strap with Stainless Steel Ratchet for customer to install on stainless steel MORCINCHTM drum holder


Diameter Adapters to Handle a Smaller Drum
Diameter Adapters to handle a smaller drum with the same drum handler. Insert correct size Diameter Adapter into drum holder for each size drum. Adapters for 17.5” (44.5 cm) diameter and smaller have brackets at top and bottom of the drum. The brackets adjust for a drum up to 38” (96.5 cm) tall.



Diameter Adapter

Diameter Adapters
Spark Resistant Diameter Adapters


Stainless Steel Diameter Adapter

Stainless Steel Diameter Adapters


Model chart

Product Description
4556-P Kit: MORCINCH Bracket Assembly required for a RIMLESS plastic drum, or to more securely hold a fiber drum. Prevents drum from slipping lengthways through the drum holder. Adjusts for 31" to 39" (79 to 99 cm) tall drum.
4560-P Kit: MORCINCH Top Rim Clamp to safely handle a RIMMED 55-gallon (210 liter) plastic drum. Prevents drum from slipping lengthways through the drum holder.
55/30-14.5 Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-16 Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-17.5 Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-19 Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-19GR Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. For use only with 185G, 285G, 185GR, 285GR or 300 Series. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-20.5 Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30-22 Diameter Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
4556C-P Kit: MORCINCH Bracket Assembly for use with Drum Cone attached to drum. Prevents drum from slipping lengthways in the drum holder.
4556S-P KIT; CUSTOM MORCINCH BRACKET TO PREVENT DRUM FROM SLIPPING IN DRUM HOLDER. LIKE 4556-P; EXCEPT... THIS CUSTOM ITEM IS NON-RETURNABLE.
5115-P KIT for Customer to Install 2" x 3' (5 x 91 cm) Web Strap and Ratchet on EXISTING MORCINCH Drum Holder. Replaces cinch chain around drum. NOT for spark resistant model.
5115I-P OPTION: Factory Installed 2" x 3' (5 x 91 cm) Web Strap and Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum. NOT for spark resistant model.
55/30S-NP 55/30S; 55/30-22 No Paint
55/30SS-14.5 Stainless Steel Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30SS-16 Stainless Steel Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30SS-17.5 Stainless Steel Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30SS-19 Stainless Steel Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30SS-20.5 Stainless Steel Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30SS-22 Stainless Steel Diameter Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
4556SS-P Kit: Bead Blast Stainless Steel MORCINCH Bracket Assembly to prevent drum from slipping length-ways.
4560SS-P Kit: Bead Blast Stainless Steel MORCINCH Top Rim Clamp to safely handle a rimmed 55-gallon (210 liter) plastic drum. Prevents drum from slipping length-ways.
5115SS-P KIT for Customer to Install 2" x 3' (5 x 91 cm) Web Strap and Stainless Steel Ratchet on EXISTING MORCINCH Drum Holder. Replaces cinch chain around drum.
5115ssi-p OPTION: Factory Installed 2" x 3' (5 x 91 cm) Web Strap and Stainless Steel Ratchet on NEW Stainless Steel MORCINCH Drum Holder. Replaces standard cinch chain around drum.
55/30M-14.5 Spark Resistant Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30m-16 Spark Resistant Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30M-17.5 Spark Resistant Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30M-19 Spark Resistant Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30M-20.5 Spark Resistant Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
55/30M-22 Spark Resistant Diameter Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
4556CM-P MORCINCH Bracket Assembly Kit with spark resistant parts for use with Drum Cone attached to drum. Prevents plastic drum from slipping.
4556M-P Kit: MORCINCH Bracket Assembly with Spark Resistant Parts required for rimless plastic drum, or to more securely hold a fiber drum. Prevents drum from slipping lengthways through the drum holder. Adjusts for 31" to 39" tall drum.
4560M-P Kit: MORCINCH Top Rim Clamp with Spark Resistant Parts to safely handle a rimmed 55-gallon (210 liter) plastic drum. Prevents the drum from slipping lengthways through the drum holder.
5115M-P KIT for Customer to Install 2" x 3' Web Strap and Ratchet on EXISTING Spark Resistant MORCINCH Drum Holder. Replaces cinch chain around drum.
