Model 82HM
DRUM-LIFTER/PALLETIZER, RIMMED DRUM, MANUAL LIFT, SPARK RESISTANT PARTS, 1000 Lb. CAPACITY
Specifications
| Full capacity | 454.00 kg (1000 Lb.) |
| Ship length | 127.00 cm (50") |
| Ship width | 127.00 cm (50") |
| Ship height | 142.24 cm (56") |
| Ship weight | 213.83 kg (471 Lb.) |
| Ship class | 92.5 |
All about Model 82HM
4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
- Model 82HM has Hand Pump manual drum lift

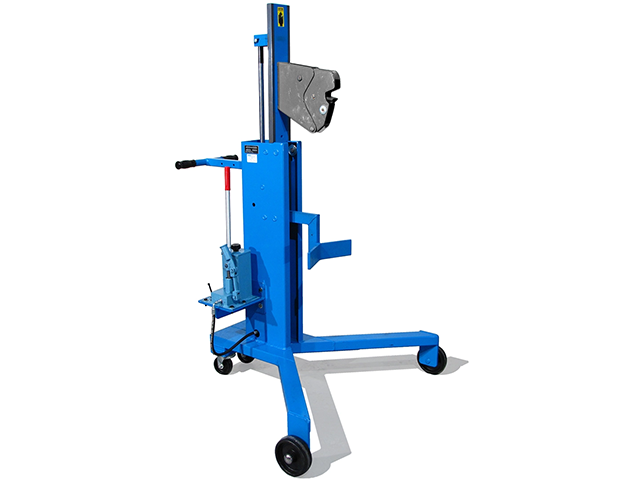

- Has Spark Resistant Parts to reduce the risk of mechanical sparking in environments with flammable or explosive materials

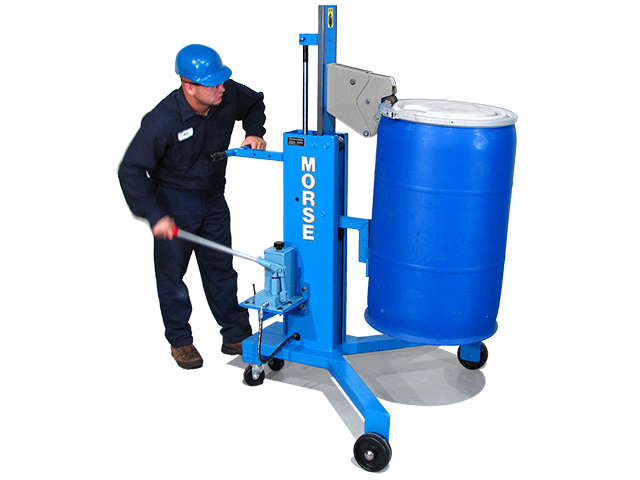

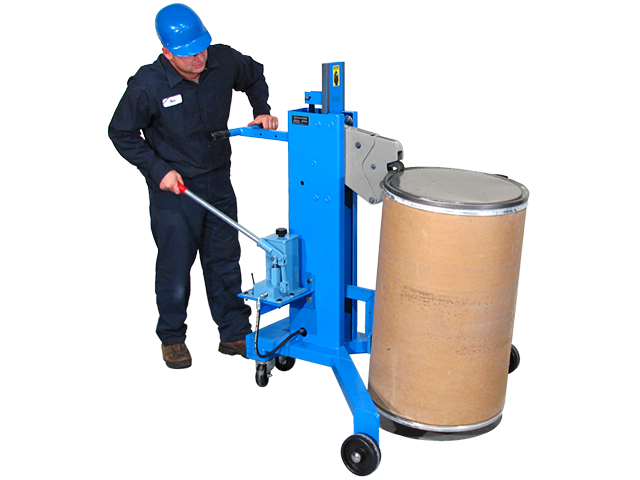

- Handle virtually any RIMMED steel, fiber or plastic drum
- Jaws grip drum top rim
- Completely mechanical and automatic drum grip
- Transport, palletize and depalletize various diameter drums
- Requires drum to be minimum of 22.5" (57.15 cm) tall
- Raise drum up to 19" (48.3 cm) from floor
- Requires at least 75 Lb. (34 kg) drum weight to activate jaws
- Place or retrieve a drum at the corner of pallets
- Straddles pallet up to 41" (104 cm) wide and 7" (18 cm) tall
| 3588Xi-P
Fully enclosed crate for export of 82 Series. Heat treated and certified IPPC compliant. |
|
| 6747-P
KIT, SEAL, 1" CYL, 3611K-P |
|
| FGO
OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil |
|
| SCW-82
OPTION: Factory Installed static conductive wheels and casters on NEW 82 Series. Have conductive rubber tread. |
RP82-01
Optional Kit: Recommended Spare Parts for 82H Series. Click image for list of parts)
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
Parts Diagram
Serial range
Base Assembly
Drum Lift Assembly
Hand Pump
Hand Pump Mount Detail
Head Assembly
Hydraulic Cylinder
Operators Manual
Serial range
CE Declaration of Conformity
Hand Pump
Mobile Drum Palletizer
Operators Manual and Parts Diagram
Serial range
Hand Pump
Mobile Drum Palletizer
