195GM-A

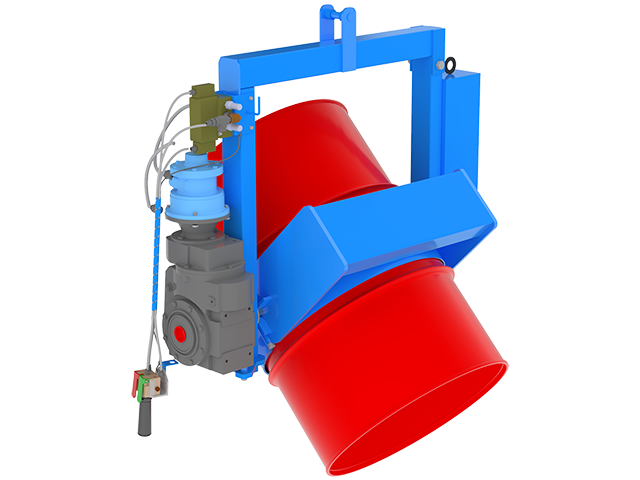

Below-Hook Kontrol-Karrier with Spark Resistant Parts, 3-Piece Drum Holder and AIR power drum tilt control. Lift and pour a 55-gallon (210 liter) steel drum with your hoist.
195GM-A
- Safety conscious below-hook drum handler
- Lift, move and dispense a heavy drum with your monorail, crane, or chain block
- Motorized drum rotation 360o in both directions to control high level pouring
- Pendant extends to control drum tilt angle from below
- Designed for 22.5" (57 cm) diameter 55-gallon (210 liter) steel drum
- IMPORTANT: Each Morse below-hook drum handler is individually load tested at the factory at 125% of rated capacity, and ships with a Load Test Certificate enclosed
- Capacity:
- 1500 Lb. (680 kg) Full Drum
- 800 Lb. (363 kg) Half-Full Drum - Based on tilt mechanism’s capacity to handle an unbalanced, bottom-heavy drum, which is harder to tilt than full drum
- Model 195G-A has Spark Resistant Parts and AIR motor for power drum tilt

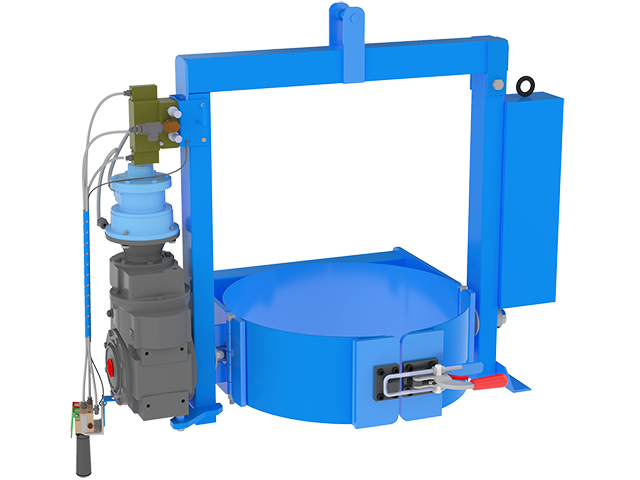

- 3-Piece Drum holder has two hinged metal bands and toggle clamp to secure a 55-gallon (210 liter), 22.5" (57 cm) diameter steel drum
- Insert Diameter Adapter 55/30-19GR for 30-gallon drum with 18.5" to 19" (47 to 48.3 cm) diameter
General
Full Capacity | 1500 Lb. (681 kg) |
Half-full Capacity | 800 Lb. (363.2 kg) Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum. |
Shipping dimensions
Ship length | 51" (129.54 cm) |
Ship width | 27" (68.58 cm) |
Ship height | 45" (114.3 cm) |
Ship weight | 530 Lb. (240.62 kg) |
Ship class | 77.5 |
Example: 1120 is November 2020
Click a serial range to download.
Document
Serial range
195 Series Power-Tilt Drum Carriers
Spec Sheet
Spec Sheet
Click a serial range to download.
Document
Serial range
195 Series Certificate of Compliance
Click a serial range to download.
Document
Serial range
195GM-A Below-Hook Kontrol-Karrier with Power Tilt
Operators Manual and Parts Diagram
Operators Manual and Parts Diagram
290-A-2P Air Motor
Operators Manual and Parts Diagram
Operators Manual and Parts Diagram
Air Motor Technical Information
Operators Manual and Parts Diagram
Operators Manual and Parts Diagram
4067-P Speed Reducer
Parts Diagram
Parts Diagram
