Model 42
Below-Hook Drum Lifter for 55- and 85-Gallon Steel Drums
The Model 42 below-hook drum lifter handles 55- and 85-gallon steel drums up to 2000 lbs. Offers horizontal fixed and off-vertical tilt modes for safe transport and controlled positioning. Each unit is factory load tested at 200% capacity and meets ANSI/ASME B30.20 standards, shipping with a load test certificate. Ideal for industrial and manufacturing drum handling.
All about Model 42
- Designed to lift 55- and 85-gallon steel drums using a hoist or crane
-
Two lifting modes for flexible drum handling:

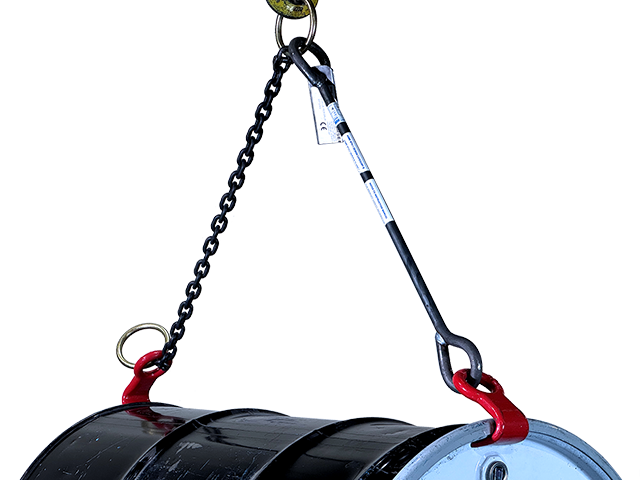

- Horizontal Mode - lift and transport drum in a fixed horizontal position
- Off-Vertical Mode – tilt drum to or from upright for controlled positioning/li>
- Each unit is factory load tested to 200% of rated capacity and ships with a load test certificate
- Morse Below-Hook Drum Lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:
- Rated load markings and unit identification
- Minimum design safety factor of 3, based on yield strength, for load bearing structural components
- Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
- All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1
No options available.
42 Heavy Duty Drum Lifter Video
Click to play
Specifications
| Full capacity |
2000 Lb. (908.00 kg) |
WARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
| Ship length | 26" (66.04 cm) |
| Ship width | 5" (12.70 cm) |
| Ship height | 4" (10.16 cm) |
| Ship weight | 10 Lb. (4.54 kg) |
| Ship class | 60 |
