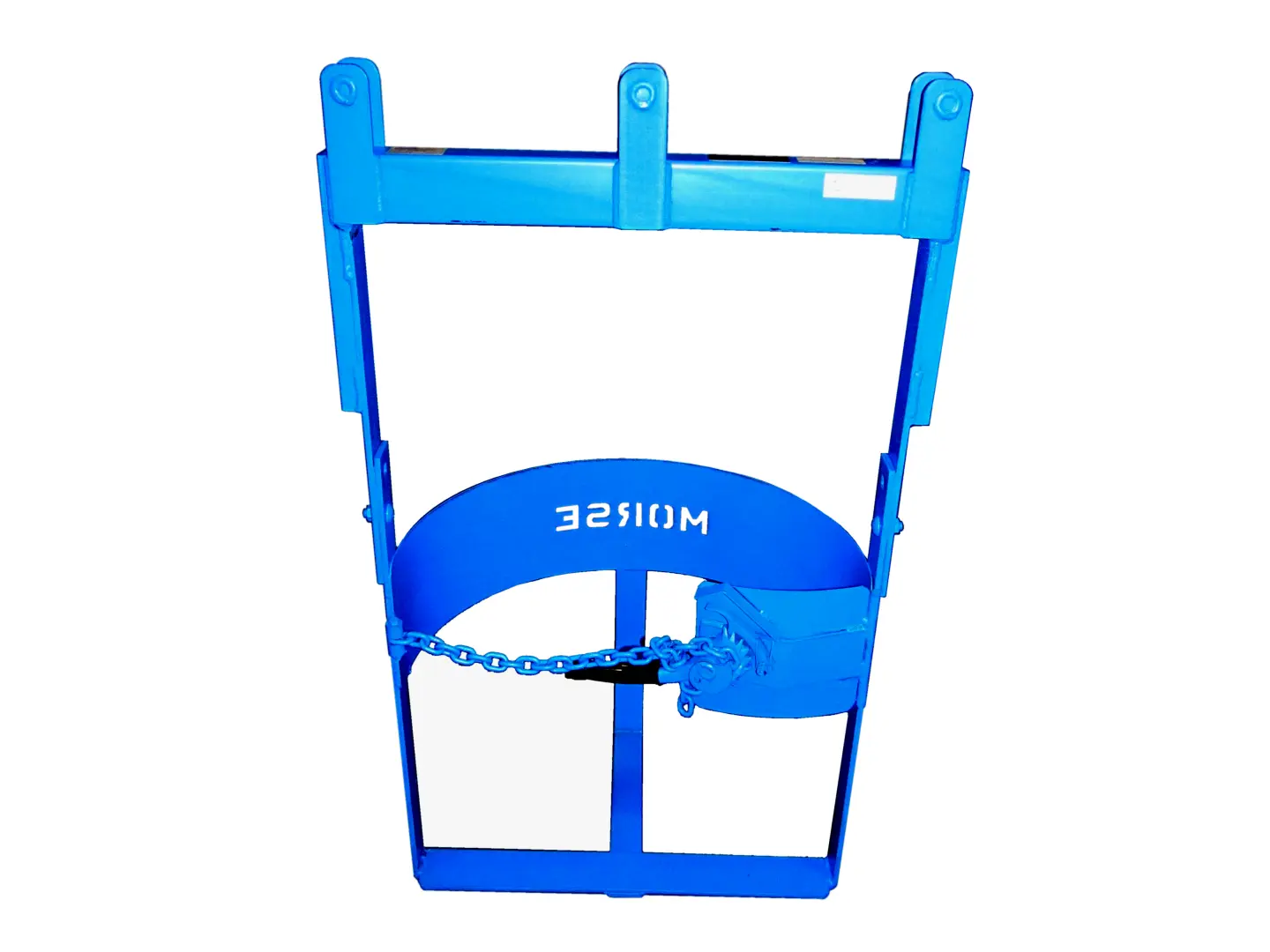

Model 86S-3LP

Custom Below-Hook Drum Lifter with three lifting points and under drum support. Has no tilt function.

All about Model 86S-3LP
Specific to Model 86S-3LP
  • Has THREE lifting points
  • NO tilt function
  • Web Strap to secure around drum
  • Lift 23" to 38" (59 to 96 cm) tall drum with 22" to 23.5" (56 to 59.7 cm) diameter
  • Ships with Load Test Certificate
All Drum Lifters - Barrel Lifters
  • Morse Below-Hook Drum Lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:
    • Rated load markings and unit identification
    • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
    • Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
    • All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1
55/30-14.5 thumbnail image 55/30-14.5

Diameter Adapter for 14"-14.5" (35.6 -36.8 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30-16 thumbnail image 55/30-16

Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30-17.5 thumbnail image 55/30-17.5

Diameter Adapter for 17"-17.5" (43.2 -44.5 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30-19 thumbnail image 55/30-19

Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum.
55/30-20.5 thumbnail image 55/30-20.5

Diameter Adapter for 20"-20.5" (50.8-52.1 cm) diameter drum. Measure diameter 1/2-way down drum.
55/30-22 thumbnail image 55/30-22

Diameter Adapter for 21.5-22" (54.6-55.9 cm) diameter drum. Measure diameter 1/2-way down drum.
3616X-P thumbnail image 3616X-P

Fully enclosed crate for export of model 86, 86-SS or asymmetric drum cone. Heat treated and certified IPPC compliant.
6314I-P thumbnail image 6314I-P

OPTION: Factory Installed Cinch Chain and Ratchet on NEW model 86. Replaces standard Web Strap around drum.
Not available.
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

No videos available.

Specifications

Full capacity

1000 Lb. (454.00 kg)

Proposition 65 warningWARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ship length 31" (78.74 cm)
Ship width 17" (43.18 cm)
Ship height 31" (78.74 cm)
Ship weight 72 Lb. (32.69 kg)
Ship class 77.5
