Model 195A-A Below-Hook Kontrol Karrier with Air Power-Tilt
Model 195A-A Power Tilt Below-Hook Kontrol-Karrier with air power tilt. Models with electric power tilt are also available.


Drum Holder Styles
Power-Tilt Kontrol-Karrier Drum Holder has 2 Web Straps and Ratchets to secure the drum
195A Series
The Drum Holder of Morse 195A Series Power-Tilt Kontrol-Karriers has 2 polyester Web Straps and Ratchets to secure the drum
3-Piece Drum Holder
195G Series
The drum holder of Morse 195G Series have a 3-Piece Drum Holder. The metal band goes all the way round the drum, with 2 hinges on the sides, and a toggle clamp to secure the drum.

Powered Drum Handler
Power Tilt Below-Hook Kontrol-Karriers

Lift, rotate and pour a heavy drum with your hoist or crane

Morse engineers have designed these below-hook lifting devices with motor driven drum tilt for below hook applications. More than just a 55-gallon drum dumper (210 liter drum dumper, you have full 360 degree control of the powered drum rotation to dispense with this industrial lifting equipment.

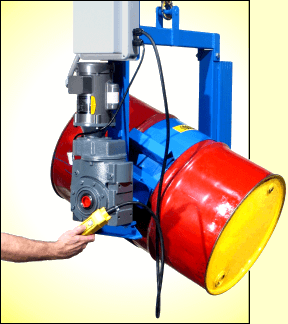

Power Tilt Kontrol-Karrier with AC power drum tilt

Power Tilt Kontrol-Karriers
Model 195A-1-115 shown has Power Tilt Kontrol-Karrier with AC power tilt control has a two-button control pendant.
  • Motorized drum rotation 3600 in both directions
  • AC Power Tilt models have 2-button pendant on 7 foot cord (2.1 m cord)
  • Air Power Tilt models have 3 position control valve on 12 foot (3.6 m) coiled hose
  • Available with single phase AC motor, 3-phase AC motor, or air motor
  • Designed for 22.5" (57 cm) diameter 55-gallon steel drum (210 liter steel drum). See options below for other drum types and sizes.
  • Capacity: 1500 Lb. (680 kg) Full drum, 800 Lb. (363 kg) Half-full drum
  • Order the correct size Diameter Adaptor for each smaller drum



NoteMorse below-the-hook drum handlers and pail handlers are manufactured by Morse Mfg. Co., Inc. in East Syracuse, NY 13057 USA. Every one is load tested at the factory at 125% of rated capacity as per American National Standard ANSI/ASME B30.20. . . See Load Test Video

Each Morse below-hook drum handler ships with a Load Test Certificate.

Morse drum lifters comply with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:

  • Rated load markings and unit identification
  • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
  • Welding is performed by certified welders who have passed the ANSI/AWS D14.1 welding qualification test
  • All welding is in accordance with ANSI/AWS D14.1 and ASME BTH-1



Custom Power Tilt
Drum Carrier

Custom stainless steel power tilt below-hook drum carrier
Custom stainless steel
power tilt below-hook drum carrier

Options for 195A Series
Option # 6218i-P (Factory Installed)
Cinch Chain and Ratchet Option # 6218i-P
Option 6218i-P Replaces the 2 webs straps on 195A Series with a metal alloy cinch chain and ratchet to secure the drum. It includes a PVC cinch chain cover to help protect the drum sidewall.
55/30 Series Diameter Adaptors
Diameter Adaptor for smaller drum - Model 55/30-16 Diameter Adaptors for smaller drum - 55/30 Series
Select the correct size Diameter Adaptor for each smaller diameter drum. There are Diameter Adaptors sized for a drum as small as 14" (35.6 cm) diameter.
Option # 4556-P
Bracket Assembly
HDPS Bracket
The Bracket Assembly is REQUIRED for a rimless 55-gallon (210 liter) plastic drum, and recommended for a fiber drum. Adjusts for a 31" to 37" (78.7 to 94 cm) tall drum.

Option for 195G Series   Accessories
Model # 55/30-19GR
Diameter Adaptor
Diameter Adaptor for 30-gallon steel drum
Model 55/30-19GR Diameter Adaptor for 19" (48.3 cm) diameter 30-gallon (114 liter) steel drum.
  Asymmetric Drum Cones
Asymmetric Drum Cone with slide gate valve - Morse model # 5-SG-90-23
Asymmetric Drum Cones. Shown with Slide Gate (Kit SG) to start and stop material flow.
Stainless Steel
Asymmetric Drum Cones
Custom asymmetric stainless steel drum cone
Stainless Steel Asymmetric Drum Cones. Shown with Iris Valve (Kit IV) to control product flow.
Model # 195A Series Power Tilt Kontrol-Karriers Ship
Weight
Domestic
Ship Dimensions
195A-1-115 Kontrol-Karrier, AC Power Tilt, 1 phase/115V 60Hz motor, 1500 Lb. (680 kg) capacity 480 Lb.
(218 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195A-1-220-50 Kontrol-Karrier, AC Power Tilt, 1 phase/220V 50Hz motor, 1500 Lb. (680 kg) capacity 480 Lb.
(218 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195A-3-230 Kontrol-Karrier, AC Power Tilt, 3 phase/230V 60Hz motor, 1500 Lb. (680 kg) capacity 480 Lb.
(218 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195A-3-460 Kontrol-Karrier, AC Power Tilt, 3 phase/460V 60Hz motor, 1500 Lb. (680 kg) capacity 480 Lb.
(218 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195A-A Kontrol-Karrier, Air Motor * Power Tilt, 1500 Lb. (680 kg) capacity 470 Lb.
(213 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
Options for 195A Series
Part # Description Ship
Weight
Domestic
Ship Dimensions
6218i-P Factory Installed Cinch Chain and Ratchet to secure drum
6218KIT-P Kit to convert 2 web straps to Cinch Chain and Ratchet to secure drum
4556-P Bracket Assembly for Rimless Plastic Drum, or to more securely handle Fiber Drum 18 Lb.
(8 kg)
L41" W15" H7"
(104 x 38 x 18 cm)
55/30 Series Diameter Adaptors for smaller drums

Model # 195G Series Power Tilt Kontrol-Karriers with 3-Piece Drum Holder Ship
Weight
Domestic
Ship Dimensions
195G-1-115 Kontrol-Karrier with 3-Piece Drum Holder, AC Power Tilt,1 phase/115V 60Hz motor, 1500 Lb. (680 kg) capacity 540 Lb.
(245 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195G-3-230 Kontrol-Karrier with 3-Piece Drum Holder, AC Power Tilt, 3 phase/230V 60Hz motor, 1500 Lb. (680 kg) capacity 540 Lb.
(245 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195G-3-460 Kontrol-Karrier with 3-Piece Drum Holder, AC Power Tilt, 3 phase/460V 60Hz motor, 1500 Lb. (680 kg) capacity 540 Lb.
(245 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195G-A Kontrol-Karrier with 3-Piece Drum Holder, Air Motor * Power Tilt, 1500 Lb. (680 kg) capacity 530 Lb.
(240 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
195GM-A Kontrol-Karrier, Air Motor * Power Tilt, spark resistant parts, 1500 Lb. (680 kg) capacity 530 Lb.
(240 kg)
L51" W27" H45"
(130 x 69 x 114 cm)
Option for 195G Series
Part # Description Ship
Weight
Domestic Ship
Dimensions
55/30-19GR Diameter Adaptor only for 19" (48.3 cm) diameter 30-gallon steel drum 50 Lb.
22.7 kg
L31" x W26" x H11"
(79 x 66 x 28 cm)
* Air Motor Technical Info
 Half-Full Drum Rating

Half-Full Drum Rating is an indication of capacity for tilting unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than full drum.

Morse below-the-hook drum lifters

Important noteIMPORTANT - It is critical to use the correct holder and accessory to lift your drum type and dimensions.
