82A - Drum Palletizers that Pour
Morse 82A Series Drum Palletizers allow you to move drums onto and off shipping pallets, spill containment and drum dollies
82a-125 Video
82A-125 Drum Palletizer and Pourer
82A-125 Drum Palletizer and Pourer
Model 82A-125 Drum Palletizer and Pourer

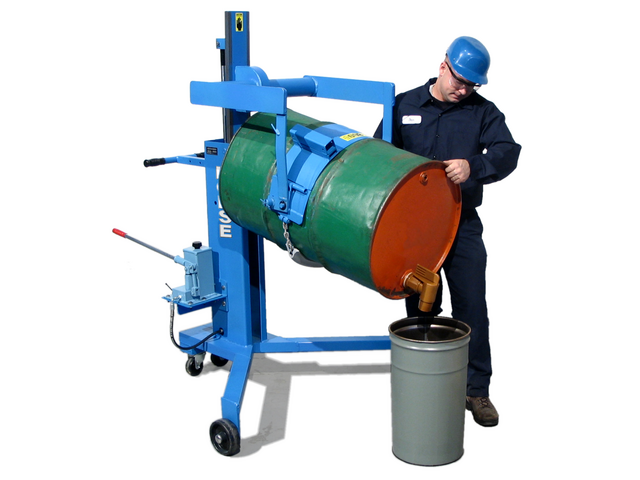

Grasp drum by hand to turn. Model 82A-125 shown.
82a
Install Top Rim Clamp Kit 4560-P to prevent a RIMMED plastic drum from slipping
82a
Install Bracket Assembly Kit 4556-P to safely pour a plastic or fiber drum
82a-ss
Stainless Steel Drum Mover, Pourer and Palletizer with hand pump drum lift. Grasp drum to tilt by hand. - Model 82A-SS
82a
V-Shaped Base of 82A Series allows access to drum on pallet
82a-gt-125
82 Series Base spans a pallet up to 41" (104 cm) wide and 7" (18 cm) tall
Key features
- Drum palletizers that pour handle a 55-gallon (210 liter) steel drum
- Add MORCINCHTM Options for plastic or fiber drum
- Add correct size Diameter Adapter for a smaller drum
- Lift upright drum up to 20" (50.8 cm) above floor
- Grasp drum by hand to tilt
- Maximum dispensing height is 26" (66 cm) with horizontal drum
- V-shaped base provides access to place or retrieve drum at pallet corners
- Straddle pallet up to 41" (104 cm) wide and 7" (17.8 cm) tall
- Capacity: 600 Lb. (272 kg)
Reduce the safety risks of manhandling heavy drums. Morse 82A Series Drum Palletizers allow you to lift and pour a drum. Move drums on and off shipping pallets, spill containment pallets, and drum dollies. The V-shaped base provides access to place and retrieve a drum at pallet corners.
Grab drum by hand to manually tilt to pour up to 26" (66 cm) high. Rotate drum 360 degrees end-over-end. Lock drum at horizontal to dispense, or lock drum upright to prevent spills while transporting.
Models are available with ergonomic power-lift to raise drum with AC Motor, 12V DC Battery or Air Motor power-lift, and manual drum tilt. 12V DC Power Lift includes battery, and 115V 50/60Hz AC charger. Models also available with Hand Pump Hydraulic Lift and Manual Tilt.
Install the correct MORCINCHTM Option to handle a plastic or fiber drum, or Diameter Adapter for a smaller drum
Grab drum by hand to manually tilt to pour up to 26" (66 cm) high. Rotate drum 360 degrees end-over-end. Lock drum at horizontal to dispense, or lock drum upright to prevent spills while transporting.
Models are available with ergonomic power-lift to raise drum with AC Motor, 12V DC Battery or Air Motor power-lift, and manual drum tilt. 12V DC Power Lift includes battery, and 115V 50/60Hz AC charger. Models also available with Hand Pump Hydraulic Lift and Manual Tilt.
Install the correct MORCINCHTM Option to handle a plastic or fiber drum, or Diameter Adapter for a smaller drum
- Top Rim Clamp Kit # 4560-P for a 55-Gallon (210 liter) RIMMED Plastic or Fiber Drum
- Bracket Assembly Kit # 4556-P for a RIMLESS Plastic Drum, and recommended to more securely handle Fiber Drum
- Install the correct size Diameter Adapter for a smaller drum
82A Series Drum Palletizers and Pourers
Grasp Drum by Hand to Turn for Pouring
Grasp Drum by Hand to Turn for Pouring
- Model 82A-125 with Battery Power Drum Lift
- Model 82A-124 with AIR Power Drum Lift
- Model 82A-120 with plug-in Electric Power Drum Lift
- Model 82A-127 with plug-in Electric Power Drum Lift with single-phase 50Hz motor for use ONLY in countries with 50Hz power supply
- Model 82A (shown) with Manual Hand Pump Drum Lift
82H-SS Series Stainless Steel Drum Palletizers and Pourers
Grasp Drum by Hand to Turn for Pouring
Grasp Drum by Hand to Turn for Pouring
- Model 82A-SS-125 with Battery Power Drum Lift
- Model 82A-SS-124 with AIR Power Drum Lift
- Model 82A-SS-120 with plug-in Electric Power Drum Lift
- Model 82A-SS (shown) with Manual Hand Pump Drum Lift
Model Chart
| Product | Description |
|---|---|
| 82a | Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has hand pump drum lift and manual drum tilt. |
| 82a-120 | Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has single-phase 60Hz electric power drum lift, and manual drum tilt. |
| 82a-124 | Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has air power drum lift, and manual drum tilt. |
| 82A-125 | Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has 12V battery power drum lift, and manual drum tilt. Includes battery and charger. |
| 82A-127 | Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has single-phase 50Hz electric power drum lift, and manual drum tilt. |
| 82A-SS | Stainless Steel Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has hand pump drum lift and manual drum tilt. |
| 82A-SS-120 | Stainless Steel Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has single-phase 60Hz electric power drum lift, and manual drum tilt. |
| 82A-SS-124 | Stainless Steel Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has air power drum lift and manual drum tilt. |
| 82A-SS-125 | Stainless Steel Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has 12V battery power drum lift, and manual drum tilt. Includes battery and charger. |
