Custom Drum Handlers

Morse engineers design custom drum handling equipment to fit your specific requirements. If a standard drum handler will not meet your need, please Request a Quote on a custom drum handler for your unique application, or you may even suggest a new idea.

Our CAD system and flexible manufacturing plant enable us to design and fabricate custom drum handlers to address your need. Please contact us, or your Morse dealer, for a quote on your unique drum handling requirements. . . even altogether new designs.

2  3  NEXT >>

Custom drum handling applications:

  • Handling non-standard size or type drums
  • Greater capacity for a heavier drum
  • Mobile drum handlers with greater straddle width,
    or with extra reach beyond front wheels, or extra lift height
  • Unit for special fork sizes or spacing
  • Extra reach or lift height
  • Special finishes: FDA compliant silver powder coat finish
Many Morse models have stainless steel construction.
Others are available on a custom basis.
Custom Forklift Attachments Custom Below-Hook Drum Handlers
1.

Custom fork mount drum handler
Custom model # 185S-HD-FP
Lift and pour drum below forks of forklift or walkie stacker. Works when forks do not spread wide enough to accommodate a drum between them. Also use lifting eye to handle drum with crane or hoist.

2.

Custom stainless steel below-hook drum carrier
Custom model # KF-185S2-HD
Below-hook drum carrier made of type 304 stainless steel for handling up to a 1,000 Lb. (454 kg) 55-gallon plastic or steel drum

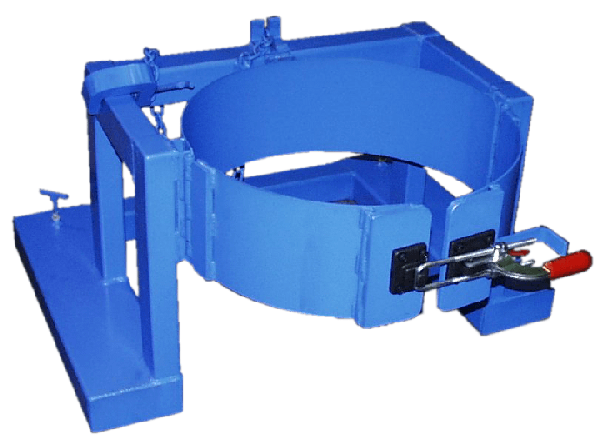

3. Model # 285S-OC Custom forklift attachment with pouring controls on the opposite side
Custom Model # 285S-OC
Forklift attachment with the drum pouring controls on the opposite side
4.

Custom model 86S-FP with fork pockets has 1000 Lb. capacity
Custom model # 86S-FP
with 1,000 Lb. capacity, has fork pockets
under the drum, and a lifting eye on top.

5. Custom Forklift-Karrier with 3,000 Lb. capacity and no tilt function
Custom Forklift Attachment with NO Tilt
with 3,000 Lb. capacity and with no tilt function
6. Custom model # 86S-FPHD with fork pockets has 2000 Lb. capacity
Custom model # 86S-FPHD
with 2,000 Lb. capacity, has fork pockets
under the drum, and a lifting eye on top.
7. Custom MORSpeed Forklift Attachment for 2500 Lb. (1134 kg) drum
Custom Heavy-Duty MORSpeed TM Forklift Attachment
for handling up to a 2500 Lb. (1134 kg) drum.
8. Custom 2-Drum Lifter
Custom model # 86S-2D
double drum lifter with center lifting eye,
and adjustable lifting eye to use when
lifting 2 different drums.
9. Custom Fork Hook with larger opening
Custom Fork Hook model # 284L
with larger opening
10. Custom Below-Hook Drum Carrier with longer arms to accommodate a drum cone
Custom model # 185S-LA
shown with Option # X02-185 Hand Crank
below-hook drum carrier with more overhead
space to turn drum, even with a
Morse drum cone attached
11. Custom adaptor to securely hold a 44-gallon Brute container
Custom Diameter Adaptor with brackets
to securely hold a 44-gallon Rubbermaid Brute container
in any Morse drum handler equipped with the MORcinch Drum Holder. This custom adaptor fits new Below-Hook Kontrol-Karriers with MORcinch Drum Holder Forklift-Karriers with MORcinch Drum Holder Hydra-Lift Karriers with MORcinch Drum Holder

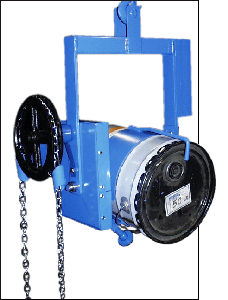

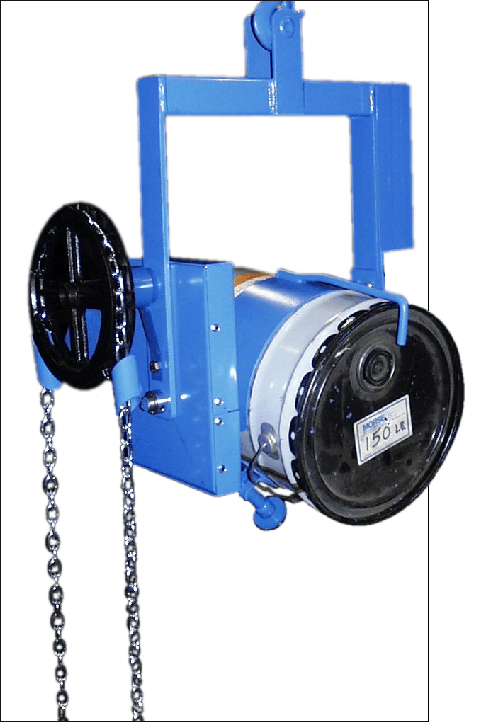

12. Custom below-hook 5-gallon pail carrier with pull chain controlled tilt
Custom model # 185S-5
below-hook 5-gallon pail carrier
with pull chain controlled tilt
13.   14. Custom stainless steel power tilt below-hook drum carrier
Custom stainless steel
power tilt below-hook drum carrier
15.   16. Custom below-the-hook drum lifter for 2000 Lb. drum
Custom heavy-duty version drum lifter
Below-the-hook drum lifter made to lift up to a 2000 Lb. (907 kg) drum.
17.   18.

2  3  NEXT >>

Custom drum handlers to suit your application.
