Mobile Pail Handlers

PailPRO 5-Gallon (19 liter) Pail Handlers.
Ergonomic Pail Handling Equipment to lift, move and pour up to 5 feet (1.5 m) high.
Handle 5-Gallon (19 liter) metal can or plastic pail.


Key features

  • Safety Conscious and Ergonomic way to lift and pour 5-gallon (19 liter) pails
  • Lift, tilt and dispense a heavy pail with ease
  • Hand wheel to control pour angle
  • Pour up to 5 feet high (1.5 m)
  • Turn pail 360o in either direction
  • Easily maneuverable and fits through standard doorway
  • Adjustable floor lock

Request Quote Model Chart



Ergonomics Brings Customers to Morse for Pail Handling Equipment. Our PailPRO TM 5-gallon pail handlers provides ergonomic advantage to reduce risks due to repetitive motion or heavy lifting. Specific applications include food, pharmaceutical, paint and coating, and processing industries.

Morse PailPRO TM 5-Gallon Pail Handler is designed to lift and pour a 5-gallon (19 liter) metal can or plastic pail weighing up to 150 Lb. (68 kg). Pour up to 5 feet (1.5 m) high. Pail handling is made easier in tight spaces with this maneuverable pail handler. Easily maneuver through tight spaces and standard doorways on the compact base with casters and wheels.

Secure an 11" to 12" (28 x 30.5 cm) diameter pail in the holder with minimal effort using the clamp-screw mechanism. Elevate pail up to 5 feet above the floor. Use hand wheel to turn pail for dispensing. The MORStopTM Tilt-Brake prevents your pail from turning out of control. The pail ONLY tilts when you turn the hand wheel.

Set the floor lock to prevent the unit from rolling while you dispense. Safety-oriented pail handling design has enclosed moving parts to eliminate pinch points.

Ergonomic Pail Handling
  • Compact base: L33" x W33" (84 x 84 cm)
  • 4" tall legs straddle 26" (66 cm) width
  • 48" (122 cm) Turning radius
  • 80" (203 cm) Overall height
  • Handles 11" to 12" (28 x 30.5 cm) diameter 5-gallon (19 liter) metal can or plastic pail
  • Pour at up to 5 feet (1.5 m) high (measured from floor to side of horizontal pail)
The MORStopTM Tilt-Brake, between the hand wheel and the gearing, is standard on this pail handler. This safety-focused device prevents an unbalanced pail from turning on its own. The pail automatically remains where you stop turning, until you turn the hand wheel again.



Model 83-125

Model 83-125
PailPRO Mobile 5-Gallon Pail Handler with Battery Power Lift and Hand Wheel Tilt
Shown with Morse 100th Anniversary *GOLD* Finish
Capacity: 75 Lb. (34 kg)



Model 83 PailPRO 5-Gallon Pail Handler

Model 83
Pours can between the legs.
Capacity: 150 Lb. (68 kg)



Model 83S-XR-125 Battery Power Lift Extended Reach 5-Gallon Pail Handler

Model 83S-XR-125
Battery Power Lift Extended Reach 5-Gallon Pail Handler pours can beyond front wheels.
Capacity: 75 Lb. (34 kg)

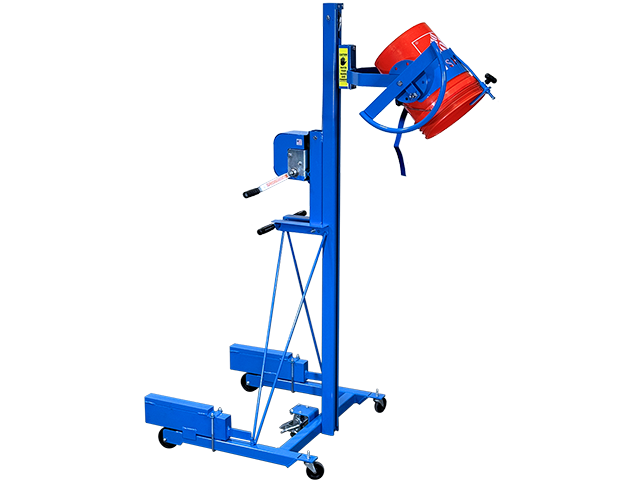

Model 83S-XR Extended Reach PailPRO 5-Gallon Pail Handler

Model 83S-XR
Extended Reach 5-Gallon Pail Handler pours can beyond front wheels.
Capacity: 75 Lb. (34 kg)


Model Chart

Product Description
83 PailPRO Mobile 5-Gallon (20L) Pail Handler with hand crank pail lift and hand wheel pail tilt control. Lift and pour up to 5-feet (1.5 m) high.
83-125 PailPRO Mobile 5-Gallon (20L) Pail Handler with Battery Power Lift and Hand Wheel tilt control. Lift and pour up to 5-feet (1.5 m) high.
83S-XR PailPRO Extended Reach Mobile 5-Gallon (20L) Pail Handler with hand crank pail lift and hand wheel pail tilt control. Lift and pour up to 5-feet (1.5 m) high.
83S-XR-125 PailPRO Extended Reach Mobile 5-Gallon (20L) Pail Handler with Battery Power Lift and Hand Wheel tilt control. Lift and pour up to 5-feet (1.5 m) high.
