Load Drum with your hoist and Model 92 Drum Lifter

Screw down the two top clamps on top of drum

Tighten the ratchet strap around the drum

Model 2-309-E3

Double Drum Tumbler. Exp-Proof 3-PH 208/230/460V 60Hz Motor. REQUIRES Controls to Start/Stop. OSHA, CSA & EU REQUIRE Enclosure with Interlock.

All about Model 2-309-E3

Specific to Model 2-309-E3

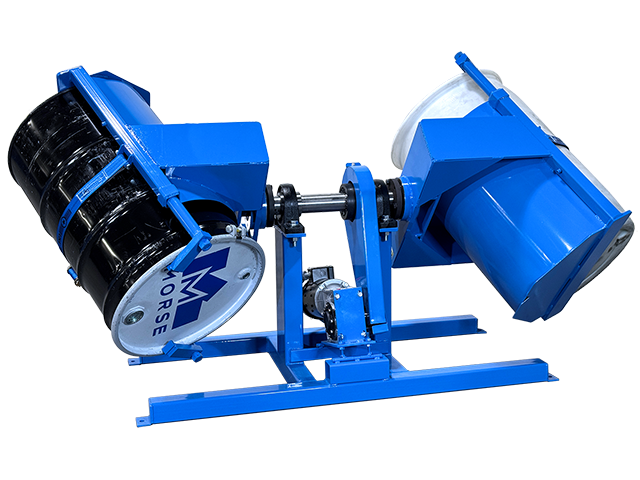

Rotate 1 or 2 drums end-over-end
Model 2-309-E3 has explosion-proof 3-phase 208/230/460V 60Hz motor
Rotates drums at 14 RPM
REQUIRES Electric Control Box to Start / Stop Rotator
Electric Control Package sold separately
- Model CP-2-309-E3-208 Explosion-Proof Control Box for 3-phase 208V 60Hz
- Model CP-2-309-E3-230 Explosion-Proof Control Box for 3-phase 230V 60Hz
- Model CP-2-309-E3-460 Explosion-Proof Control Box for 3-phase 460V 60Hz

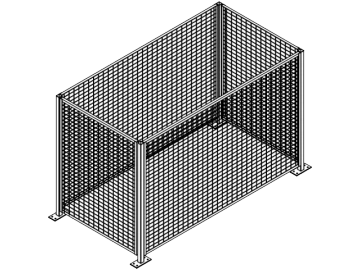

Guard Enclosure Kit sold separately as model GEK-2-309-E3

All 309 Series Drum Tumblers - Barrel Mixers

IMPORTANT: OSHA, CSA and EU require Enclosure with Safety Interlock
Barrel mixers blend contents inside CLOSED drum to reduce hazards and worker exposure
Prevent messy cleanup of insertion mixers
Incorporate sediment and homogenize stratified valuable ingredients
Lift upright drum to load into tumbler with:
- Your hoist and model 92 Below-Hook Drum Lifter
Mix products inside a closed steel, plastic or fiber drum
- 29" to 37" (74 to 94 cm) tall
- 18" to 23.5" (46 to 60 cm) in diameter
- Typical 30 to 55 gallon (114 to 210 liter) size drum

	CP-2-309-E3-230 Control Package for 2-309-E3 Tumbler Explosion-Proof 3-PH 230V 60Hz 14 RPM. Start/Stop, Run Jog Switch. Consult electrician for wiring.
	CP-2-309-E3-460 Control Package for 2-309-E3 Drum Tumbler. Explosion-Proof 3-PH 460V 60Hz 14 RPM. Start/Stop, Run/Jog. Consult electrician for wiring.
	CP-2-309S SPL CONTROL PKG, 2-309 SERIES
	GEK-2-309-E3 Kit: Enclosure with Safety Interlock for CUSTOMER to install with 2-309 Exp-Proof 3-PH AC Double Drum Tumbler. SHIPS SEPARATELY W/ 2ND FREIGHT BILL.
	6589W-P Top hold down bar for drum holder 5801-P used on 309, 310 and 311 Series Drum Tumblers.
	6637I-P OPTION: Factory Installed cinch chain on drum holder 5801-p used on 309, 310 & 311 drum tumblers. Replaces ratchet web strap.
	6712Xi-P Fully enclosed crate for export of 2-309 Series with GEK (NOT set up). Crate is heat treated & certified IPPC compliant.
	FAT-309 OPTION: Complete Factory Acceptance Test form FAT-309 and ship completed form in literature packet with NEW 309 Series Drum Tumbler.

RP2-309-01

OPTIONAL KIT, RECOMMENDED SPARE

4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

1Spec Sheet

1Certificate of Compliance

5Operators Manuals and Parts Diagrams

Parts Diagram

Serial range

Clamp Screw Assembly

400000 - Current

Double Drum Tumbler

400000 - Current

Drum Holder (Saddle) Assembly

400000 - Current

Operators Manual

Serial range

Double Drum Tumbler

400000 - Current

Keyless Hub Detail

295663 - Current

1Recommended Spare Parts Kit

No videos available.

Specifications

Drum RPM	14 RPM RPM is based on 22.5" (57.15 cm) diameter drum.
Full capacity	800 Lb. (363.20 kg)
Half capacity	400 Lb. (181.60 kg) Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.

Proposition 65 warning WARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Phase	3
Power	1.11855 kw
Style	(Totally enclosed fan cooled)
Explosion proof	Yes
Frequency	60Hz
Voltage / Amp draw	208v / 4.6
Voltage / Amp draw	230v / 4.6
Voltage / Amp draw	460v / 2.3
