Morse 540 Power-Propelled Vertical-Lift Drum Handling Equipment

Model 545

Name: Morse 545 PILOT™ Power-Propelled Scale-Equipped Vertical-Lift Drum Pourer | Drum Handler
Brand: Morse
SKU: 545

FEATURED

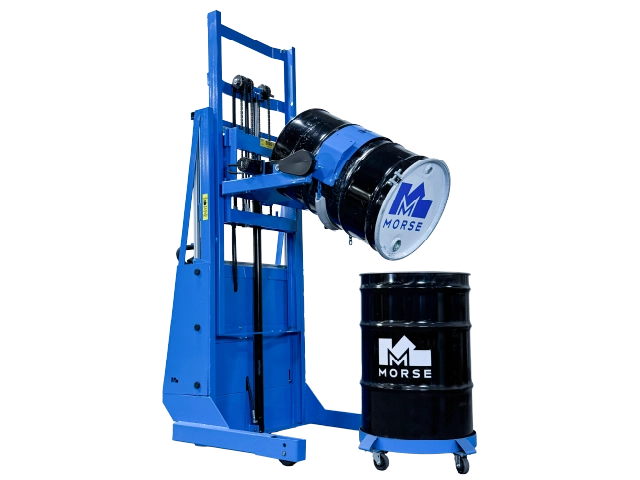

Scale‑Equipped PILOT™ Power-Propelled Vertical-Lift Drum Pourer

The Morse Model 545 combines all the capabilities of the Model 540 with an integrated scale for weighing while dispensing. Ideal for batching, filling, and material transfer applications, the Model 545 helps operators transport, lift, weigh, and pour drums using a single piece of equipment.

All fields required unless noted.

All about Model 545

Specific to Model 545

Scale-equipped PILOT™ Power-Propelled Vertical-Lift Drum Pourer
Weigh drum contents while dispensing material
Scale accuracy of ±0.2% of displayed weight
Display resolution of 0.1 Lb. / kg
Dispense precise quantities without a separate floor scale
Ideal for batching, filling, and controlled dispensing applications

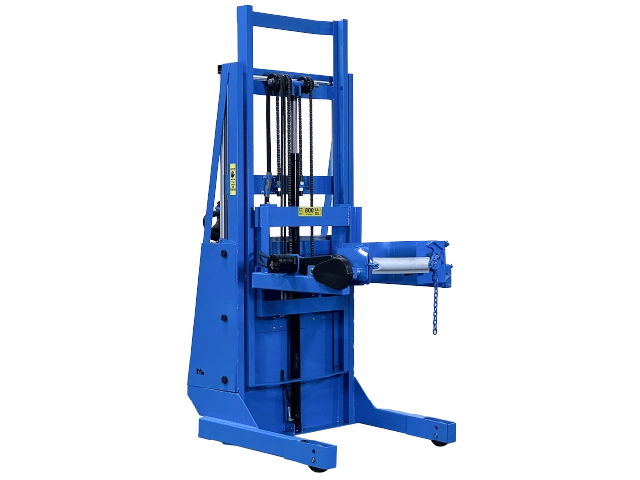

All PILOT™ Power-Propelled Drum Handlers

Power-propelled transport reduces operator effort
Powered drum lift and 360° drum rotation

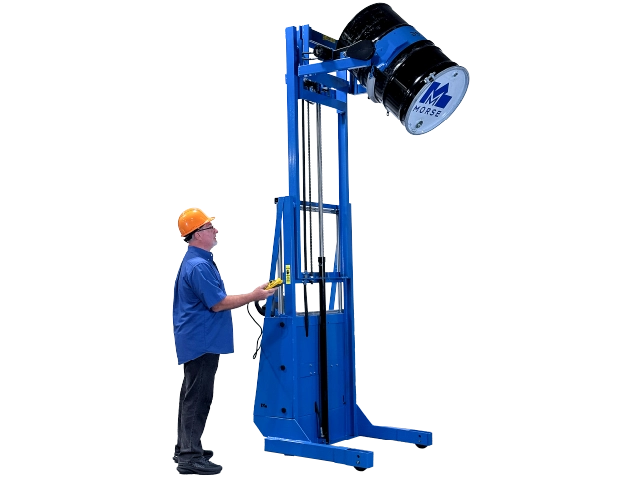

Lift and pour drums up to 106" (2692 mm) high

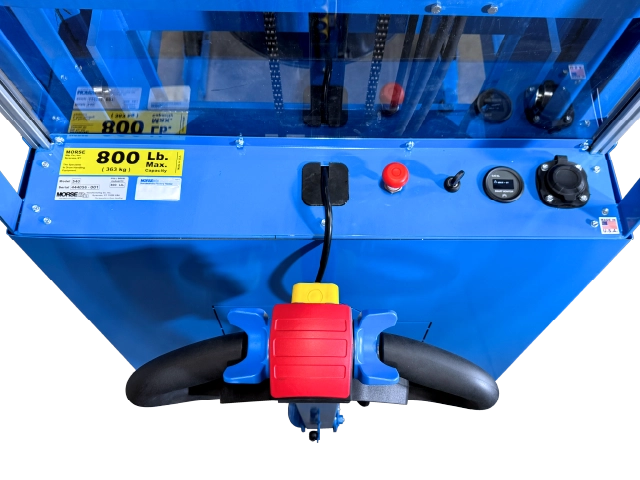

Handle drums weighing up to 800 Lb. (363 kg)
Extended-reach pouring beyond the straddle legs
MORCINCH™ system secures a wide range of drum types
Adaptable for steel, plastic, and fiber drums
Tight turning radius for excellent maneuverability
Integrated operator protection and braking systems
Rechargeable 24V battery-powered operation

	4556-P Kit: Bracket to prevent plastic or fiber drum from slipping length-ways
	4560B-P KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping
	4904I-P OPTION: Factory Installed 1/4" Thick Neoprene Liner on NEW 5000-P MORCINCH drum holder
	5115I-P OPTION: Factory Installed 2" x 3' (5 x 91 cm) Web Strap and Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum. NOT for spark resistant model.
	55/30-14.5 Diameter Adapter for 14"-14.5" (35.6 -36.8 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-16 Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-17.5 Diameter Adapter for 17"-17.5" (43.2 -44.5 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-19 Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum.
	55/30-19B Diameter Adapter for 18.5"-19" drum. Includes brackets for poly and fiber drum. IMPORTANT: Measure outside diameter 1/2-way down drum.
	55/30-20.5 Diameter Adapter for 20"-20.5" (50.8-52.1 cm) diameter drum. Measure diameter 1/2-way down drum.
	55/30-22 Diameter Adapter for 21.5-22" (54.6-55.9 cm) diameter drum. Measure diameter 1/2-way down drum.
	55/30-32G Diameter Adapter for 32-Gallon (121 liter) Rubbermaid Brute Model 2632
	55/30-44G Diameter Adapter for 44-Gallon (167 liter) Rubbermaid Brute Model 2643
	55/30S CUSTOM DIAMETER ADAPTER...
	6349-P KIT, SEAL, 6318-P, 6319-P
	6388-P Adapter for use with 4556-P Bracket Assembly in order to handle 55 gallon Rubbermaid Brute 2655
	6659-P SEAL KIT FOR 1-1/2" CLYINDER

RP545-01

KIT, SPARE PARTS, 545

1Spec Sheet

2Operators Manuals and Parts Diagrams

Parts Diagram

Serial range

Drum Holder, MORCINCH

445158 - Current

Operators Manual

Morse 540 Series PILOT™ Power-Propelled Drum Pourer Operator's Manual

400000 - Current

Morse 540 Series Power-Propelled Drum Handler Video
Click to play

Recommended Products

MORCINCH Drum Handling System

Drum Diameter Adapters

Specifications

Material	Standard Steel
CE marked	No

Proposition 65 warning WARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
