Model 82H-XR

Extended Reach Drum Palletizer for RIMMED steel, plastic or fiber drum. Hand Pump drum lift to raise drum up to 19" (48.25 cm). 600 Lb. capacity.

All about Model 82H-XR

Specific to Model 82H-XR

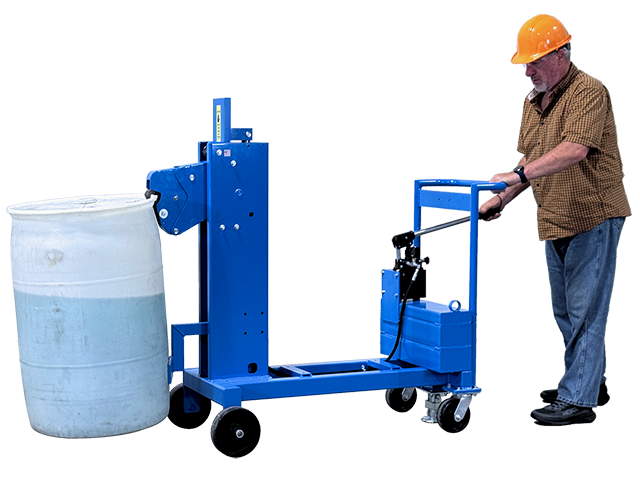

  • Hand pump drum lift
All 82H-XR Extended Reach Palletizers

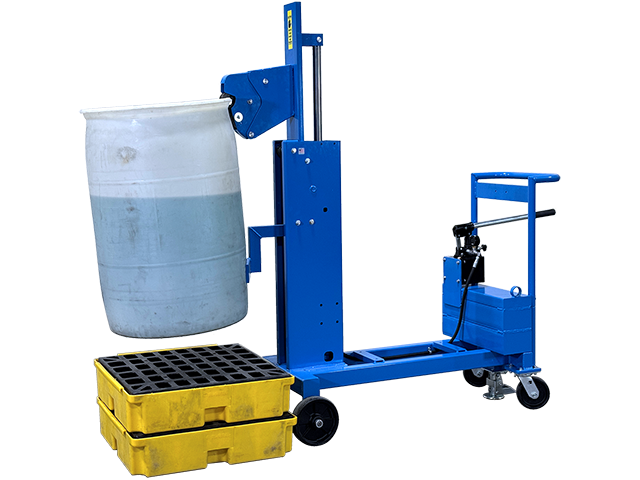

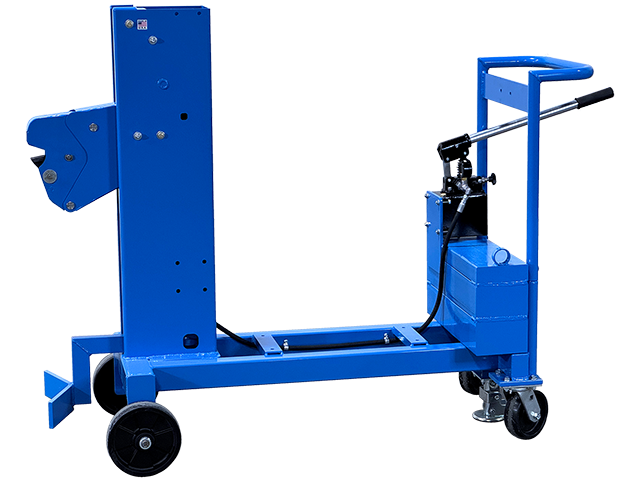

  • Extended reach drum handler to access drum on pallet, spill containment, cabinet, etc.
  • Efficiently move upright drum onto and off pallets and floor

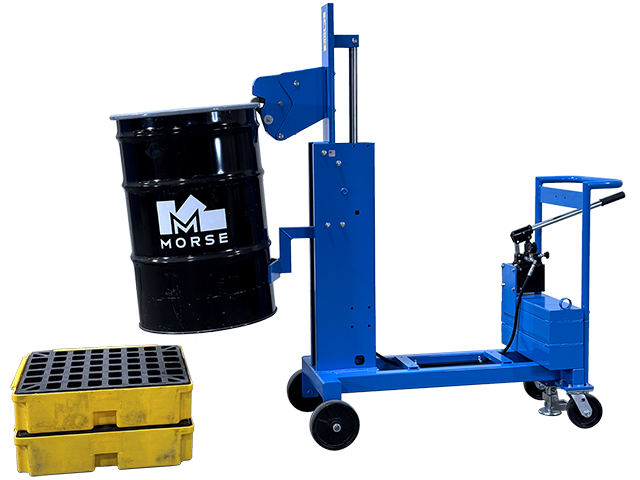

  • Handle virtually any RIMMED steel, fiber or plastic drum... tight head or securely clamped top in place
  • Completely mechanical automatic drum grip

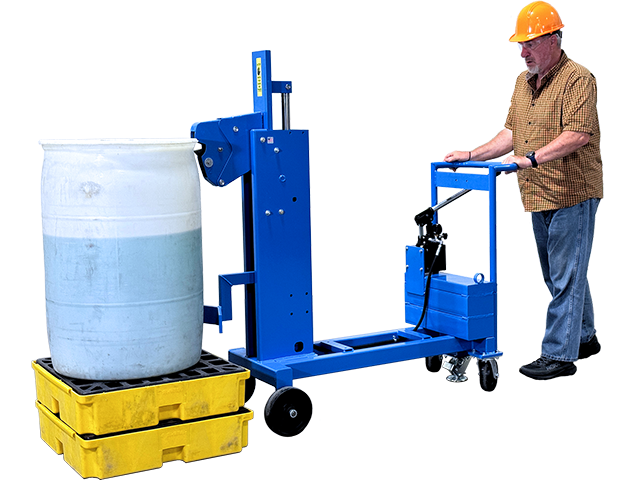

  • Raise a 34-7/8” (886 mm) tall drum up to 19” (483 mm) above the floor

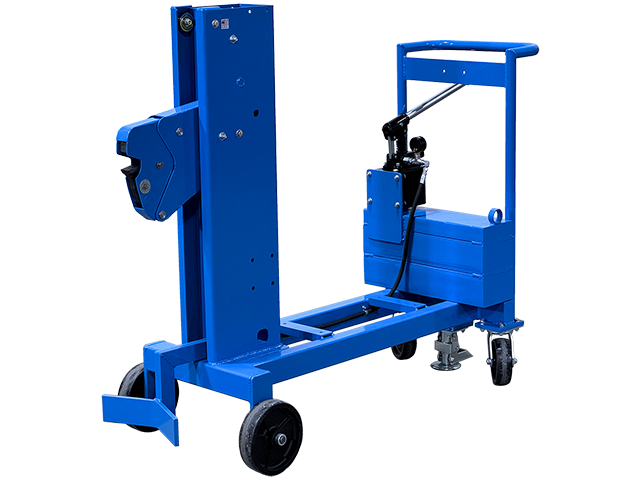

  • Bottom of drum is held 4" (101.6 mm) beyond the front wheels
  • Handle various drum sizes
  • Requires drum at least 22” (558.8 mm) tall
  • Requires 50 Lb. (22.7 kg) minimum drum weight to activate jaws
  • Rolls on 6" (152.4 mm) Rear casters and 8" (203.2 mm) front wheels
  • Step-down floor lock to hold in place
  • 24” (609.6 mm) wide base to fit in tighter areas
  • Rear counterweight for stability
No image available 3049WBi-P

OPTION: Two 6" Swivel Casters with Side Brake installed on 82h-xr series.
No image available 6746-P

while supplies last
Not available.
1Spec Sheet
Parts Diagram
Serial range
Base Assembly
edit icon446203 - Current
edit icon339245 - 446202
Extended Reach Drum Palletizer
edit icon346395 - Current
Operators Manual
Extended Reach Drum Palletizer
edit icon346395 - Current

No videos available.

Specifications

Proposition 65 warningWARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ship length 60" (152.40 cm)
Ship width 28" (71.12 cm)
Ship height 54" (137.16 cm)
Ship weight 602 Lb. (273.31 kg)
Ship class 100
