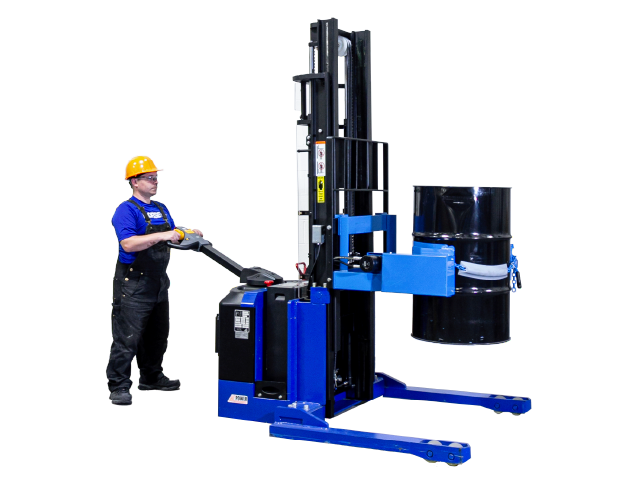

PILOT Power-Propelled Walk-Behind Drum Handler. Pour drum at up to 10 feet (3.2 m) high - Model # 900 shown

Lift, transport and pour a drum with Morse < PILOT > Power-Propelled Drum Pourer

Dispense a drum with Morse < PILOT > Self-Propelled Drum Pourer

Control Handle of Morse Power-Propelled Drum Handler

Lift and Tilt Control Levers of Morse Power-Propelled Drum Pourer

Model 900

< PILOT > Power-Propelled Drum Mover / Pourer. Dispense 55-gallon (210L) drum up to 10 feet (3 m) high.

All about Model 900

Specific to Model 900

Lift, Transport and Dispense a drum up to 10 feet (3 m) high
Pour 55-gallon (210L) drum 7.7" (19.6 cm) beyond front wheels
Rotate drum 360 degrees forward and back
MORCINCH^TM Drum Handling System
- Drum holder automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
- Install correct MORCINCH^TM Kit to safely handle plastic or fiber drum
- Insert correct size Diameter Adapter for each smaller drum

All < PILOT > Power-Propelled Drum Handlers

Power-Propelled Drum Handler
Familiar controls for power and steering, plus Raise and Lower buttons
- Adjust travel speed with ergonomic twist grip
- Tilt the control handle to actuate brake, and feather for accurate payload positioning
Set leg straddle from 42" to 50" (106.7 to 127 cm) in 4" (10.16 cm) increments
Internal 24V battery plugs into standard 110V AC outlet to fully charge in about 8 hours
Built-in Safety Systems
- Released handle returns to upright and applies "dead-man" brake
- "Belly-button" switch helps prevent operator being pinned. Upon contact, it activates low speed reverse direction.
Powered by absorbed glass-mat (AGM) sealed battery. The spill-proof design to pass transportation regulations. Can ship by air, mail, etc.
Battery charger is for 100 – 240VAC, 50/60Hz
Add correct adapter to plug into 50Hz outlets

	55/30-14.5 Diameter Adapter for 14"-14.5" (35.6 -36.8 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-16 Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-17.5 Diameter Adapter for 17"-17.5" (43.2 -44.5 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
	55/30-19 Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum.
	55/30-19B Diameter Adapter for 18.5"-19" drum. Includes brackets for poly and fiber drum. IMPORTANT: Measure outside diameter 1/2-way down drum.
	55/30-20.5 Diameter Adapter for 20"-20.5" (50.8-52.1 cm) diameter drum. Measure diameter 1/2-way down drum.
	55/30-22 Diameter Adapter for 21.5-22" (54.6-55.9 cm) diameter drum. Measure diameter 1/2-way down drum.
	6846X-P Fully enclosed crate for export of 900 Series. Crate is heated treated and certified IPPC compliant.
	4556-P KIT: MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust for 31"-39" tall drum. NOT a complete drum handler.
	55/30-32G Diameter Adapter for 32-gallon Rubbermaid Brute model 2632
	55/30-44G Diameter Adapter for 44-gallon Rubbermaid Brute model 2643
	4560B-P KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30 to 55 gallon drum.
	4904I-P OPTION: Factory Installed 1/4" Thick Neoprene Liner on NEW 5000-P MORCINCH drum holder
	5115I-P OPTION: Factory installed 2"x3' Web Strap and Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain. NOT for spark resistant model.
	6349-P KIT, SEAL, 6318-P, 6319-P
	6388-P Adapter for use with 4556-P Bracket Assembly in order to handle 55 gallon Rubbermaid Brute 2655
	G-400 OPTION: Factory Installed 3-piece drum holder on NEW 400 or 500 Series drum handler

RP900-01.02

KIT, SPARE PARTS, 900

4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

1Spec Sheet

1Certificate of Compliance

16Operators Manuals and Parts Diagrams

Operators Manual

Serial range

Accessories - MORCINCH Drum Holder

0209 - Current

CE Declaration of Conformity

400000 - Current

Power-Propelled Drum Handler

417867 - Current

294521 - 417866

262703 - 294520

Operators Manual and Parts Diagram

Serial range

Base Assembly

417867 - Current

262703 - 417866

Parts Diagram

Serial range

Drum Holder, MORCINCH

420550 - Current

0613 - 0124

1210 - 0513

0209 - 1110

Hydraulic Motor

0319 - Current

1084 - 0219

Yoke Assembly

420125 - Current

303419 - 420124

262703 - 303418

4Recommended Spare Parts Kit

Recommended Spare Parts Kit

Serial range

Recommended Spare Parts Kit

420126 - Current

303419 - 420125

262703 - 303418

Specifications

Full capacity	1500 Lb. (681.00 kg)
Half capacity	800 Lb. (363.20 kg) Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
Dispense height	126.0" (320.04 cm)
Lift style	Power lift
Tilt style	Power tilt
