81
Lower handle to lift drum on and off a pallet
81 Palletize Drum
Model 81 Drum Palletizer
81
81 Drum Palletizer
Lower drum palletizer handle to lift a drum from the floor or a pallet up to 6" high
Move drum onto and off pallet up to 6" (15 cm) tall
V-shaped base gives access to a drum at pallet corners
Drum Spotter to palletize a RIMMED 55-gallon steel, plastic or fiber drum
Steel hooks engage underneath drum top rim

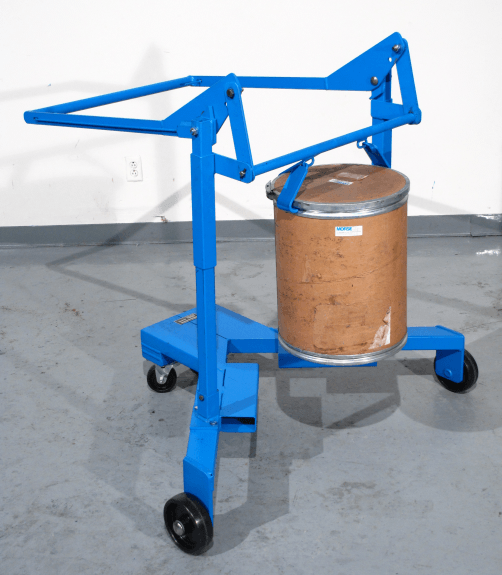

Model 81 Drum Spotter
81 Drum Palletizer Video
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.
Drum Spotter / Palletizer for RIMMED 55-gallon (210L) steel, plastic or fiber drum. Hooks engage UNDER drum top rim.
81
- Model 81 is made of carbon steel with durable blue powder coat finish
- Lift, move and palletize a RIMMED 55-gallon (210L) plastic, steel or fiber drum
- Raise handle and engage two hooks under top rim of drum
- Lower handle to lift drum from corner of pallet or from floor
- Handle various RIMMED 55-gallon (210L) drums
- 22" to 23.5" (56 to 60 cm) diameter UNDER drum rim
- 34" to 36" (86 to 92 cm) tall
- Closed 55-gallon (210 liter) steel tight-head or removable top drum
- Many RIMMED 55-gallon (210 liter) plastic drums
- Many fiber drums with clamp-on lids
- Maximum pallet height: 6" (15 cm)
- Built-in counterweight for stability
- Simple to operate
General
| Full Capacity | 800 Lb. (363.20 kg) |
Shipping information
| Ship length | 51" (129.54 cm) |
| Ship width | 36" (91.44 cm) |
| Ship height | 19" (48.26 cm) |
| Ship weight | 245 Lb. (111.23 kg) |
| Ship class | 70 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
|
2975X-P
Fully enclosed crate for export of 195 Series or model 81. Heat treated and certified IPPC compliant. |
| 4853X-P
Fully enclosed crate for export of 2 of 81-PART-A and 2 of 81-PART-B. Heat treated and certified IPPC compliant. |
|
| 6465KIT-P
Kit: Spacers for customer to install on model 81 or 81M to handle 2" taller drum |
|
| SCW-81
OPTION: Factory Installed static conductive wheels and casters on NEW 81 Series. Have conductive rubber tread. |
