Drum transporter model 82H-125 used to palletize drums
Model 82H-125 drum transporter and palletizer has
battery power drum lift to ergonomically palletize drums.

Jaws of drum transporter grip the drum rim
These drum and barrel movers have
jaws to grip the top rim of the drum.

Model 82H drum transporter to lift and move a rimmed upright drum on and off pallets.
Lift a rimmed drum with a hand pump with model 82H drum mover. Add a Power-Lift Option for a more ergonomic means of raising a drum.



82H Series

Drum Transporters / Drum Palletizers / Drum Movers

Transport drums, and move rimmed drums on and off pallets up to 19" high.

Pallet loading barrel movers

Lift and transport drums and barrels. Move drums on and off pallets, spill containment pallets in upright position, and drum dollies. Lift an upright drum 19" (48.3 cm) high. The V-Shaped base of these drum movers allows you to raise and place a drum at the corner of  pallets. The base of the drum mover will straddle a pallet up to 41" (104 cm) wide and 7" (18 cm) tall.

Equip your drum transporter with Power-Lift Options for more ergonomic means to raise drums. Drum movers are available with AC, DC or Air power-lift options. Model 82H-125 drum transporter / palletizer shown has battery-powered lift. It is supplied with a separate charger.

Transporters to lift and move an upright drum

These drum movers and palletizers / depalletizers have jaws to grip the top rim of an upright drum, allowing you to efficiently lift a drum onto and off pallets and transport drum. The completely mechanical, automatic grip has wide jaws and is built to last.

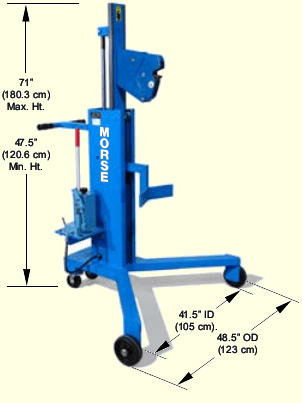

Drum transporter / palletizer dimensions Transport and Palletize Drums

  • Handle virtually any rimmed steel, fiber or plastic drum.
  • Transport, palletize and depalletize various diameter drums
  • Raise drum up to 19" (48.3 cm) from floor
  • Place or retrieve a drum at the corner of  pallets
  • Straddle a pallet up to 41" (104 cm) wide and 7" (18 cm) tall
  • Capacity: 1,000 Lb. (454 kg)
  • Requires a drum to be a minimum of 22.5" (57.15 cm) tall

Dimensions of drum movers / palletizers

  • Overall width: 48.5" (123.2 cm)
  • Overall length: 43" (109.2 cm)
  • Legs are 9" (22.9 cm) high and reach 20.75" (52.7 cm) in front of upright stanchion
  • Turning radius: 53" (135 cm)
  • (2) 4" (10.2 cm) swivel casters at back
  • (2) 6" (15.2 cm) wheels at front
  • Counterweighted for stability
Drum Mover / Palletizer spanning 36" pallet
Drum Mover / Palletizer spanning 36" pallet.
Custom drum transporter / palletizer made of type 304 stainless steel

Stainless Steel Drum Movers - Drum Palletizers

Stainless steel models are available with DC, Ac or air power drum lift.
Model # 82H-SS shown here has hand pump drum lift

Convert 82H Series (above)
into
82A Series (shown here)

Model 82A pouring 55-gallon steel drum

Install Kit # 4725-P to convert 82H Series
into 82A Series (shown here)

  • 82H Series drum palletizer to move upright drum. Has jaws to grip drum top rim.
  • 82A Series lift, pour and palletize drum. Has band drum holder around drum.

Custom Drum Drum Palletizer

Custom drum mover / palletizer
Custom drum transporter / drum palletizer
with silver powder coat finish
  Drum Movers - Drum Palletizers
Model # Pallet Loading Barrel Mover Description Motor Type Domestic
Ship Weight
Domestic
Ship Dimensions
82H Drum Transporter / Palletizer / Depalletizer with Hand Pump Drum Lift   456 Lb.
(207 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-120 Drum Transporter / Palletizer / Depalletizer with AC Power Drum Lift 1-Phase/115V/60Hz, TEFC 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-124 Drum Transporter / Palletizer / Depalletizer with Air Power Drum Lift   440 Lb.
(200 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-125 Drum Transporter / Palletizer / Depalletizer with Battery Power Drum Lift * 12V, DC * 512 Lb.
(233 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82HM Drum Transporter / Palletizer / Depalletizer with Hand Pump Drum Lift, and Spark Resistant Parts   448 Lb.
(204 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82HM-124 Drum Transporter / Palletizer / Depalletizer with Air Power Drum Lift, and Spark Resistant Parts   440 Lb.
(200 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-SS Stainless Steel Drum Transporter / Palletizer / Depalletizer with Hand Pump Drum Lift   456 Lb.
(207 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-SS-120 Stainless Steel Drum Transporter / Palletizer / Depalletizer with AC Power Lift Drum 1-Phase/115V/60Hz, TEFC 525 Lb.
(239 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-SS-124 Stainless Steel Drum Transporter / Palletizer / Depalletizer with Air Power Drum Lift   440 Lb.
(200 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
82H-SS-125 Stainless Steel Drum Transporter / Palletizer / Depalletizer with Battery Power Drum Lift 12V, DC * 512 Lb.
(233 kg)
L50" W50" H56"
(127 x 127 x 142 cm)
* 12V DC power Lift includes battery, and 100/200V 50/60Hz AC charger
  Options and Accessories
Part # Description Domestic
Ship Weight
Domestic
Ship Dimensions
4725-P Kit to convert 82H Drum Mover / Palletizer to 82A Drum Palletizer that Pours 126 Lb. (57 kg) L37" W33" H37"
(94 x 84 x 94 cm)
Morse Green Battery Option # GB Green Battery
  • Environmentally friendly Lithium Iron Phosphate Rechargeable Battery - No harmful gas or acid leaks and spills
  • Lighter than conventional lead-acid starting battery
  • Up to 2000 cycles, providing up to 8 times longer cycle life than lead-acid battery
  • No maintenance - Store up to 1 year without recharge
  • Typical design life of 5 years

Environmentally friendly battery contains no poisonous lead, no acid, and does not create gasses during charge, which regular lead-acid batteries do. Compared to lead-acid, green battery is super light, has much lower self-discharge, and does not sulfate.

Rechargeable 12.8V 19.2Ah 245.76Wh Battery requires no change to lead acid battery charging system.
