82H-125
Model 82H-125 drum palletizer
82H-125
82H-125 Drum Palletizer with Battery Power Lift
Lift, move and palletize a rimmed plastic drum

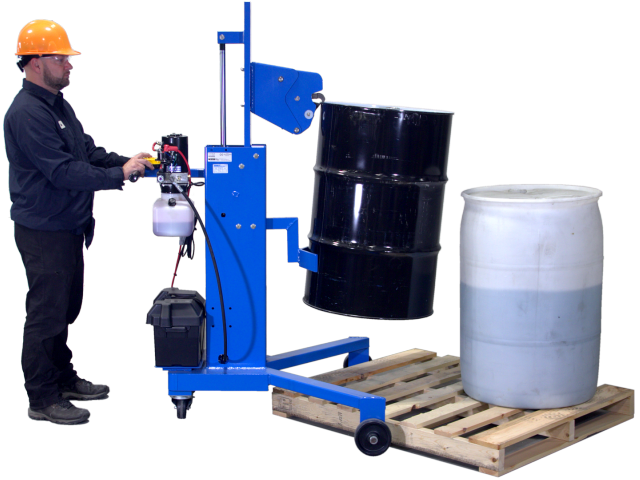

Drum Palletizer with battery power drum lift and V-shaped base to get drums on and off pallets - Model 82H-125 shown
Model 82H-125 Controls
2-Button Pendant
Head with Jaws gripping RIMMED plastic drum
Model 82H-125 has durable, wide jaws which securely grip top rim of drum
Grasp Top Rim of Fiber Drum
Jaws securely grip top rim of a RIMMED fiber, plastic or steel drum - Model 82H
82 Series Base spans a pallet up to 41" (104 cm) wide and 7" (18 cm) tall
82H Series Dimensions
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.
Drum Lifter / Palletizer for RIMMED drum. Has 12V Battery Power lift to raise drum up to 19" (48.25 cm). Includes battery and charger.
82H-125
- Model 82H-125 has 12V Battery Power drum lift
- Valve raises and lowers drum
- Battery and charger are included
- Handle virtually any RIMMED steel, fiber or plastic drum
- Jaws grip drum top rim
- Completely mechanical and automatic drum grip
- Transport, palletize and depalletize various diameter drums
- Requires drum to be minimum of 22.5" (57.15 cm) tall
- Raise drum up to 19" (48.3 cm) from floor
- Requires at least 75 Lb. (34 kg) drum weight to activate jaws
- Place or retrieve a drum at the corner of pallets
- Straddles pallet up to 41" (104 cm) wide and 7" (18 cm) tall
General
| Full Capacity | 1000 Lb. (454.00 kg) |
Shipping information
| Ship length | 50" (127 cm) |
| Ship width | 50" (127 cm) |
| Ship height | 56" (142.24 cm) |
| Ship weight | 517 Lb. (234.72 kg) |
| Ship class | 92.5 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
| EB
OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment |
|
|
EC
OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug. |
|
GB
OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life. |
| NB
OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle. |
|
| NC
OPTION: No Charger. Customer must obtain 12V charger. |
|
| PB
OPTION: Factory Installed Premium 12V Battery on NEW drum handler |
|
| 1111i-p
option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold. |
|
| 3588Xi-P
Fully enclosed crate for export of 82 Series. Heat treated and certified IPPC compliant. |
|
| 6747-P
KIT, SEAL, 1" CYL, 3611K-P |
|
| FGO
OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil |
