201B/20-E3

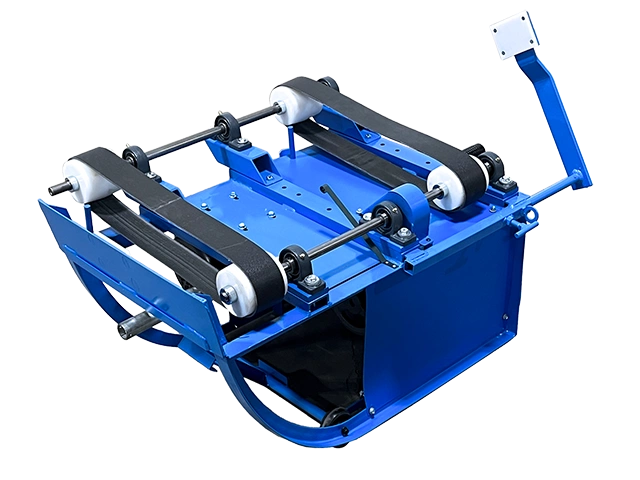

Belted Portable FIBER Drum Roller
201B Belted FIBER Drum Mixers
201 B Series Portable FIBER Drum Rollers
Belted Portable Drum Roller ONLY for Fiber Drum
Belted Portable FIBER Drum Roller
Place drum onto base plate
Engage top rim hook and secure chain around drum
Extend handle and release kick stand
Tilt drum over onto roller
Tilt drum over onto roller
Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.
Belted Portable Roller, Fixed Speed. ONLY for fiber drum. Exp-Proof 3-PH 208-230/460V 60Hz Motor. REQUIRES Start/Stop Controls, OSHA Enclosure.
201B/20-E3
- Model 201B/20-E3 has explosion-proof 3-phase 208-230/460V 60Hz motor
- Roll FIBER drum on two 2.5" (6.35 cm) wide belts at 20 RPM, based on 22.5" (57 cm) diameter
- ONLY for rolling a FIBER drum
- With 16” to 23” (41 to 58 cm) diameter
- Up to 35" (89 cm) tall
- REQUIRES Electric Controls to Start / Stop Rotator
- Electric Control Package sold separately
- Model CP-201-E3-208 for 3-phase 208V 60Hz power supply
- Model CP-201-E3-230 for 3-phase 230V 60Hz power supply
- Model CP-201-E3-460 for 3-phase 460V 60Hz power supply
- Safety Enclosure with Interlock sold separately as Kit GEK-201-E3
- IMPORTANT: OSHA, CSA and EU REQUIRE Safety Enclosure with Interlock
- Mix contents of a closed drum with a Compact, Portable Drum Roller
- Roll closed drum on its side to blend ingredients
- Tipping lever assists tilting drum onto roller. Engages drum 30" (76.2 cm) or taller.
- Maximum ambient operating temperature for Electric models: 140F (60C) and AIR models 195F (90.5C).
- Factors to consider
- Ribs of rigid steel drum prevent traveling length-ways on roller
- Soft sided plastic drums require support of extra wheels and end stop to prevent drum travel
- Fiber drums require a belted drum roller with end stop
General
| Drum RPM | 20 RPM
RPM is based on 22.5" (57.15 cm) diameter drum. |
| Liquid Capacity | 300 Lb. (136.20 kg) |
| Dryload Capacity | 300 Lb. (136.20 kg)
A shifting dry load exerts greater stress on the drum rotator than the fluid motion of a liquid load. |
Motor information
| Phase | 3 |
| HP | 0.50 |
| Style | Explosion proof |
| Explosion proof | Yes - Motor is not wired, consult a qualified electrician to complete wiring per local codes. |
| Frequency | 60Hz |
| Voltage / Amp draw | 208v / 2.1 |
| Voltage / Amp draw | 230v / 2.0 |
| Voltage / Amp draw | 460v / 1.0 |
Shipping information
| Ship length | 48" (121.92 cm) |
| Ship width | 40" (101.6 cm) |
| Ship height | 26" (66.04 cm) |
| Ship weight | 229 Lb. (103.97 kg) |
| Ship class | 70 |
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
Current
|
2836X-P
Fully enclosed crate for export of 285, 285HD Series or 201+CP(NO GEK). Crate is heat treated and certified IPPC compliant. |
|
CP-201-E3-208
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 208V 60Hz. Start/Stop Buttons. Consult electrician for wiring. |
|
|
CP-201-E3-230
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 230V 60Hz. Start/Stop Buttons. Consult electrician for wiring. |
|
|
CP-201-E3-460
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 460V 60Hz. Start/Stop Buttons. Consult electrician for wiring. |
|
gek-201-e3
Kit: Enclosure with Safety Interlock for CUSTOMER to istall with 201 Exp-Proof 3-PH AC Portable Roller. SHIPS SEPARATELY W/ 2ND FREIGHT BILL |
| 2844Xi-P
Fully enclosed crate for export of 201 Series. Heat treated and certified IPPC compliant. |
|
| 4109Xi-P
Fully enclosed crate for export of 201 Series with Enclosure Kit (NOT set up). Crate is heat treated and certified IPPC compliant. |
California Proposition 65 Information
For more information go to www.P65Warnings.ca.gov
Popular Options
View all options
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 208V 60Hz. Start/Stop Buttons. Consult electrician for wiring.
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 230V 60Hz. Start/Stop Buttons. Consult electrician for wiring.
Control Package for 201 Portable Drum Roller. Explosion-Proof 3-Phase 460V 60Hz. Start/Stop Buttons. Consult electrician for wiring.
Kit: Enclosure with Safety Interlock for CUSTOMER to istall with 201 Exp-Proof 3-PH AC Portable Roller. SHIPS SEPARATELY W/ 2ND FREIGHT BILL
Recomended Spare Parts Kits
Optional Kit: Recommended Spare Parts for 201B and 201BVS Series. (Click image for list of parts)
