5SS-VF-45-19

Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

45 Degree Stainless Steel Drum Cone to control dispensing of dry material from drum

5SS-VF-45-19

Specific to model 5SS-VF-45-19...

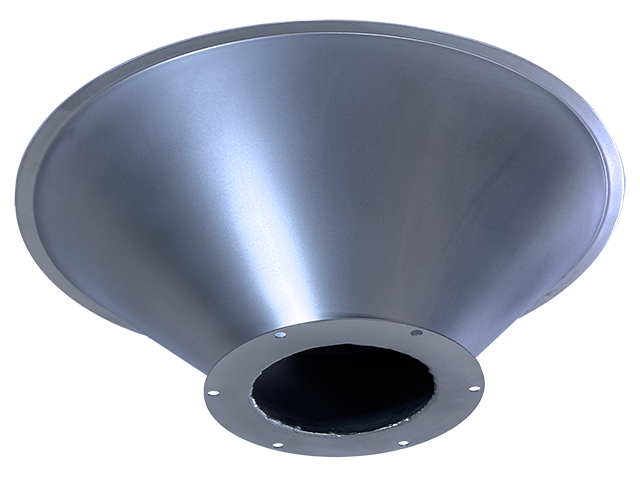

  • Bead blast finished Type 304 Stainless Steel 45 Degree Drum Cone
  • 16 Gauge type 304 stainless steel
  • Fits 19-1/8" (48.6 cm) drum rim outside diameter, measured with drum lid removed
  • Sized for typical 30-gallon (114 liter) steel drum
  • Has 6" (15.2 cm) diameter discharge opening with valve flange
  • Order separate Stainless Steel Clamp Collar model 7SS-19 to Secure Cone to drum
  • Attach valve to Cone flange to stop, start and control flow
  • Valves Kits each sold separately
    • Kit IV is Iris Valve
    • Kit SG-SS is Stainless Steel Slide Gate
All Drum Cones...
  • Replace your drum lid with a drum cone to control dumping dry material from a drum
  • Greatly reduce dust when discharging dry material
  • Extend the reach of pour
  • Install either a slide gate or an iris valve with 6" (15.24 cm) opening to start and stop dispensing
  • Drum cones work with a steel drum or a fiber drum
  • Drum Cone capacity exceeds the capacity of all Morse drum handlers when properly secured to drum with correct size Morse Clamp Collar
  • IMPORTANT: Determine the Correct Size Drum Cone and Clamp Collar
    1. Remove drum lid BEFORE measuring
    2. Measure drum OUTSIDE diameter across Top Rim WITHOUT drum lid
REQUEST QUOTE CLICK TO CALL

General

Shipping dimensions

Ship length32" (81.28 cm)
Ship width27" (68.58 cm)
Ship height11" (27.94 cm)
Ship weight35 Lb. (15.89 kg)
Ship class85
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
2827X-P thumbnail image 2827X-P

Fully Enclosed Crate for export of 1 of model 125. Crate is heat treated and certified IPPC compliant.
7SS-19 thumbnail image 7SS-19

Stainless Steel Clamp Collar to secure Drum Cone to drum. Fits 19-1/8" (48.6 cm) drum.IMPORTANT: Measure drum top rim outside diameter, with drum lid removed
4556CSS-P thumbnail image 4556CSS-P

Kit: Stainless Steel Bracket for use with Cone attached to Drum. Prevents drum from slipping length-ways.
IV thumbnail image IV

6" Diameter Aluminum Bodied Iris Valve Kit. Fits Morse Drum Cone Valve Flange. Customer to install on valve flange.
SG-SS thumbnail image SG-SS

6" Diameter Slide Gate Valve Kit made of Type 304 Stainless Steel with bead blast finish.
XT-SS thumbnail image XT-SS

5" Long x 6" Diameter Stainless Steel Extension Tube Kit. ONLY installs onto Iris Valve or Cone valve flange.
