Model 82H-XR-125

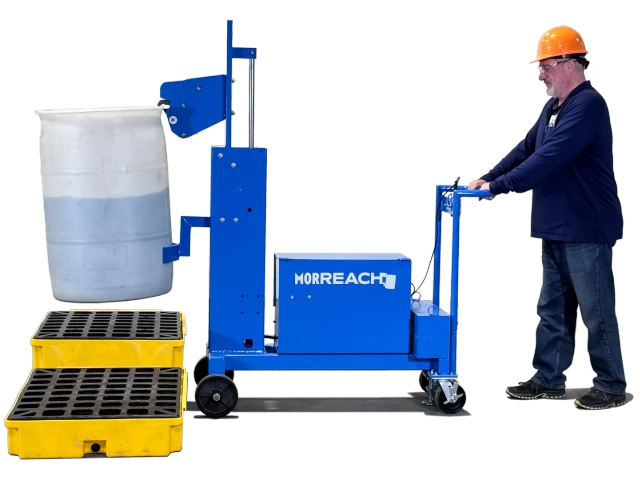

Extended Reach Drum Palletizer for RIMMED drum. Has 12V Battery Power lift to raise drum up to 19" (48.25 cm). 600 Lb. capacity.

All about Model 82H-XR-125
Specific to Model 82H-XR-125
  • 12V DC Battery Power Drum Lift with wired 2-button pendant
  • Battery disconnect switch to power on/off
  • Battery charge level display
  • Convenient panel mounted charger plug
  • Includes battery and charger
  • Hydraulic power unit is protected in enclosed box
All 82H-XR Extended Reach Palletizers
  • Extended reach drum handler to access drum on pallet, spill containment, cabinet, etc.
  • Raise a 34-7/8” (886 mm) tall drum up to 19” (483 mm) above the floor
  • Efficiently move upright drum onto and off pallets and floor
  • Bottom of drum is held 4" (101.6 mm) beyond the front wheels
  • Handle virtually any RIMMED steel, fiber or plastic drum... tight head or securely clamped top in place
  • Completely mechanical automatic drum grip
  • Handle drums size various
    • Requires drum at least 22.5” (571.5 mm) tall
    • Requires 75 Lb. (34 kg) minimum drum weight to activate jaws
  • Choose model with ergonomic lift... either battery or air power
  • Easy maneuverability on 6" (152.4 mm) Rear casters and 8" (203.2 mm) front wheels
  • Step-down floor lock to hold in place
  • 24” (609.6 mm) wide base to fit in tighter areas
  • Rear counterweight for stability
  • Capacity: 600 Lb. (272 kg)
EB

OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment
EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.
GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life.
NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.
NC

OPTION: No Charger. Customer must obtain 12V charger.
PB

OPTION: Factory Installed Premium 12V Battery on NEW drum handler
1111i-p

option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold.
6747-P

KIT, SEAL, 1" CYL, 3611K-P
FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil
Not available.
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

Specifications

Full capacity

600 Lb. (272.40 kg)

Proposition 65 warningWARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ship length 60" (152.40 cm)
Ship width 28" (71.12 cm)
Ship height 54" (137.16 cm)
Ship weight 745 Lb. (338.23 kg)
Ship class 150
