85I


Below-Hook Drum Karrier to lift and pour a drum within reach. Grasp drum to control tilt by hand. Accepts options for other drum types and sizes.


85I

Dispense drum contents with your hoist or crane.

Use your crane or hoist and a Morse below-hook drum carrier to lift, rotate and control drum pouring within your reach. Turn drum by hand 360o in either direction. You manually grasp the drum to control the drum tilt.

Ships with Load Test Certificate

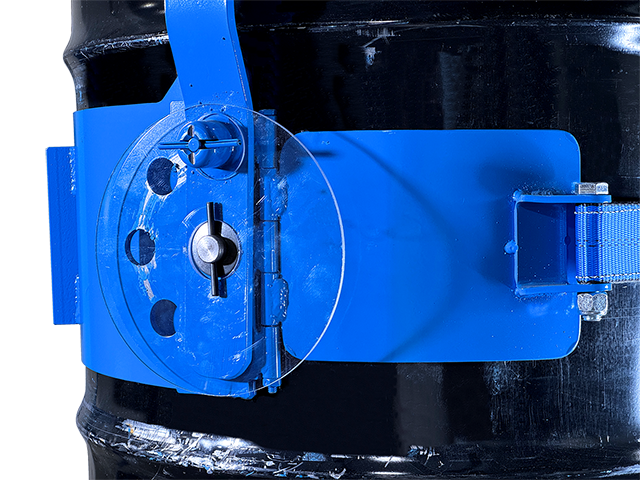

Lock drum in horizontal position or at 45o to pour. Release tilt-locks on drum carrier for hand-controlled tilt at any angle. Lift and invert a drum with a drum faucet in place. Drum carrier can also be locked with drum upright for transporting.

  • Below-Hook Drum Carrier
  • Lift and pour a standard 55-gallon (210 liter) steel drum with 22.5" (57.2 cm) diameter between ribs
  • Ratchet web strap to secure drum
  • Grasp drum by hand and turn 360o to dispense from drum
  • Lock drum in horizontal position or at 45o to pour
  • Lock with drum upright for transporting
  • Install MORCINCHTM KIts to handle a plastic or fiber drum
  • Insert correct size Diameter Adapter a smaller drum
  • Factory load tested and ships with load test certificate
  • Capacity:
    • 800 Lb. (363 kg) full drum
    • 500 Lb. (227 kg) half-full drum
      Half-full capacity is an indication of the capacity for tilting an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
REQUEST QUOTE CLICK TO CALL

General

Full Capacity800 Lb. (363.2 kg)
Half-full Capacity500 Lb. (227 kg)

Shipping dimensions

Ship length39" (99.06 cm)
Ship width27" (68.58 cm)
Ship height10" (25.4 cm)
Ship weight50 Lb. (22.7 kg)
Ship class77.5
4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

55/30-14.5 thumbnail image 55/30-14.5

Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

55/30-16 thumbnail image 55/30-16

Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

55/30-17.5 thumbnail image 55/30-17.5

Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

55/30-19 thumbnail image 55/30-19

Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

55/30-20.5 thumbnail image 55/30-20.5

Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

55/30-22 thumbnail image 55/30-22

Diameter Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

4556-P thumbnail image 4556-P

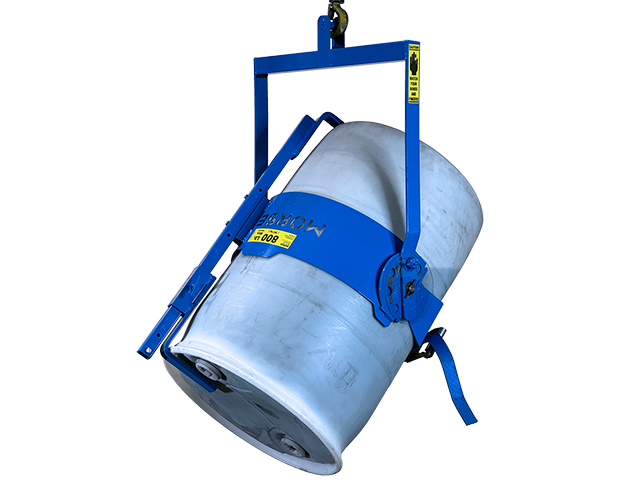

Kit: Bracket to prevent plastic or fiber drum from slipping length-ways

4560B-P thumbnail image 4560B-P

KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for 30 to 55 gallon (114 to 210 liter) drum.

6075I-P thumbnail image 6075I-P

OPTION: Factory Installed cinch chain in place of ratchet web strap on NEW 80i, 85i or 82A Series

6315-P thumbnail image 6315-P

Fork Pocket Kit: Add fork pockets to below-hook drum lifter. Install on Morse 85, 86 185 or 185HD Series.
