Dolly Handle Patent Video
Innovative Patented Design
- Handle Assembly for clamping onto dolly providing ergonomic transportation
- Clamp that engages dolly has upper piece that adjusts for various dolly wall heights...
- ...and lower piece with pivotally attached handle
- Handle stores upright, held in place by magnet
Pulling or pushing your drum dolly with the Clamp+GOTM
is easier and more stable
Pushing your drum dolly by hand is more difficult and less safe
Ergonomic Morse Clamp+GOTM Dolly Handle (Patented Design)
TM Dolly Handle is a safer and easier way to move many
different drum dollies. Quickly disengage the Clamp+GO
one drum dolly, and connect to another.
US Patent # US8424886
- Clamps onto dolly for safer, ergonomic drum transport
- Adjusts for various dolly wall heights
- Pivoting handle that stores upright when not in use
- Designed for use with a drum weighing up to 1000 Lb. (454
Helps You Prevent Accidents !
Watch the video
Someone left a dock leveler
slightly raised and. . .
. . .but it's no problem for
Watch the video

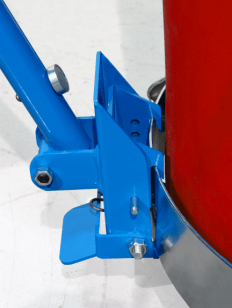

Engages Dolly Sidewall
at Top and Bottom
Clamp+GOTM Dolly Handle
Morse model 24 and stainless steel model 24-SS
Reduce risks to workers with the ergonomic and safety
conscious Morse Clamp+GOTM Dolly Handle. Attach Clamp+GOTM to the
sidewall of your drum dolly with a downward push to engage the
quick-coupling mechanism. Now you've got a drum dolly with a
handle to pull or push to move your drum
around. Easily move into and out of confined areas.
Increase worker safety by moving drum dollies with the Clamp+GOTM Dolly Handle. Don't risk catching your fingers between
the drum and other objects. Drum dollies with handles are far more stable because you
apply even force below the drum's center of gravity.
For safety reasons, use caution to maintain control and avoid
tipping when pushing at the top of your drum to move a drum
dolly. Lateral force at the top of the drum shifts over 70% of
weight to the front dolly wheels. This can make the dolly
control, and potentially hazardous without warning - even topple
over, especially if the dolly wheels hit an obstruction, a hole
floor, or while descending a slope.
Decrease the risk of this happening by attaching the Clamp+GOTM
to the drum dolly. You then pull from the bottom of the drum to
move it around, with weight far more evenly distributed on all
wheels. You have greater control, and significantly reduce risk
The Clamp+GOTM Dolly Handle can be used with round
drum dollies of various sizes.
Move the quick-pin to adjust for 2", 2.5" or 3" (5.08, 6.35 or
7.62 cm) tall dolly sidewall. One Clamp+GOTM works with all
Morse round drum dollies.
will also with many other brands of metal, round drum dolly.
It MUST be able to grip the top and bottom of the dolly
sidewall, so will NOT work if the dolly has a solid bottom.
your steel-toe boot to disengage the Clamp+GOTM from your
dolly. . . then quickly connect to another. Always comply with
maximum capacity of the drum dolly being handled.
For convenient storage, push the Clamp+GOTM handle to upright position, and a magnet holds it in
place as shown.
