< PILOT > Power-Propelled Drum Handlers

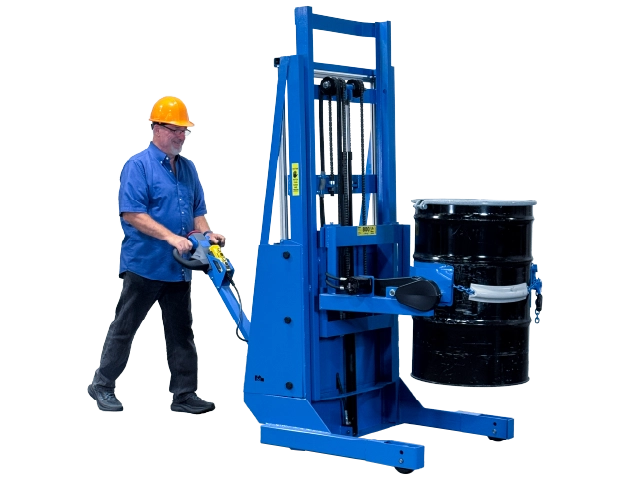

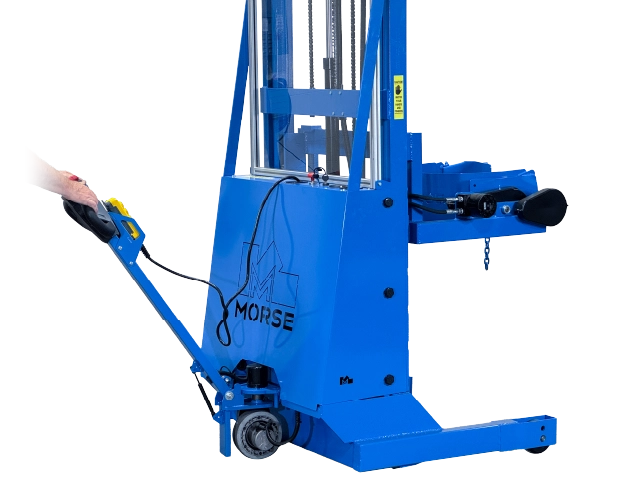

Power-Propelled Walk-Behind Drum Handlers Improve Productivity. Morse <PILOT> Self-Propelled Drum Handlers feature intuitive, industry-standard throttle, steering and drum positioning controls.


Key features

  • Lift up to a 1500 Lb. (680 kg) drum (800 Lb. / 363 kg with scale-equipped model # 905)
  • Control power-propelled walkie travel speed with ergonomic twist grip
  • Raise drum up to 10.5 feet (3.2 m) high
  • Raise or lower control handle to actuate walkie brake, and feather for accurate payload positioning
  • Adjust walkie leg straddle from 38" to 50" (96.5 to 127 cm) in 4" (10.16 cm) increments to work with various size pallets.
  • Internal 24V battery plugs into standard 110V AC outlet. Fully charge from empty in about 8 hours.
  • Built-in Safety Systems:
  • When released, the walkie handle returns to upright position and applies the "dead-man" brake
  • A "Belly-button" switch helps prevent operator being pinned. Upon contact, it activates low speed reverse direction.

Request Quote Model Chart



Model 900 PILOT Drum Pourer

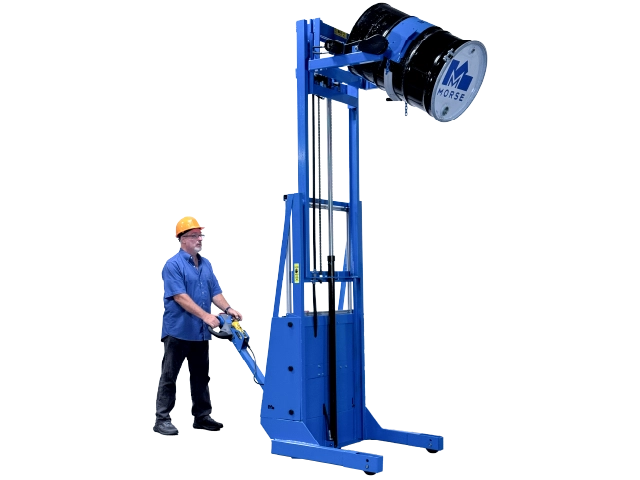

< PILOT > Model # 900 Drum Mover / Pourer allows you to lift and pour a drum up to 10.5 feet (3.2 m) high. Fully invert your drum in just 8 seconds with familiar ergonomic controls. Capacity is 1500 Lb. (680 kg) for a full drum, and 800 Lb. (363 kg) for a half-full drum. Half-full rating is an indication of capacity for tilting an unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than a full drum.

Models 900 and 905 Drum Pourers feature the MORCINCHTM Drum Handling System. Drum holder automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter drum; accepts MORCINCHTM Options to handle your plastic drum; accepts Diameter Adaptors for your smaller drums; includes safety covered gears for your protection; has durable stress-relief weld joints for years of service; cinch chain has flexible chain cover to help protect drum sidewall; Polyester Web Strap and Ratchet Option.



Model 905 PILOT Drum Pourer

< PILOT > Model # 905 Scale-Equipped Drum Pourer adds the ability to weigh while you pour, so you can dispense just the amount you need. Scale-equipped self-propelled walkie drum handlers allow you to weigh your drum while you pour to dispense precise amounts as needed. They eliminate the need for a separate weighing station. You control the drum pouring angle and height while you dispense. Capacity is 800 Lb. (363 kg) for a full drum, and 500 Lb. (227 kg) for a half-full drum.



Model 910 PILOT MORStak Drum Mover

< PILOT > Model # 910 Mover / Racker allows you to rack a 55-gallon (210 liter) steel drum horizontally up to 10.5 feet (3.2 m) high. This safety conscious, self-propelled MORStakTM Drum Racker allows you to move drums on and off racks, pallets, trucks, etc. Lift an upright drum and place in horizontal position. Rack rimmed 55-gallon steel or plastic drums side by side with virtually zero clearance between them. Handle your drum with a drum faucet in place, allowing your drum rack to serve as a dispensing station. Capacity is 800 Lb. (363 kg).



Model 915 PILOT MORSPEED Drum Mover

< PILOT > Model # 915 Mover / Stacker allows you to move and stack an upright drum up to 10 feet (3 m) high. The MORSPEEDTM drum grabber is a proven, safety conscious way to handle drums. Lift and move almost any rimmed steel, fiber or plastic drum, regardless of diameter. This self-propelled walkie stacker requires no manual contact with drum, utilizing a completely mechanical and automatic drum grab as you raise against the side of your drum. Mechanism automatically releases drum when you set it down on floor, shelf, pallet, etc. (Note: Requires a minimum drum height of 24" [61 cm], and minimum drum weight of 75 Lb. [34 kg] to activate the drum-gripping mechanism.) Capacity is 1500 Lb. (680 kg).

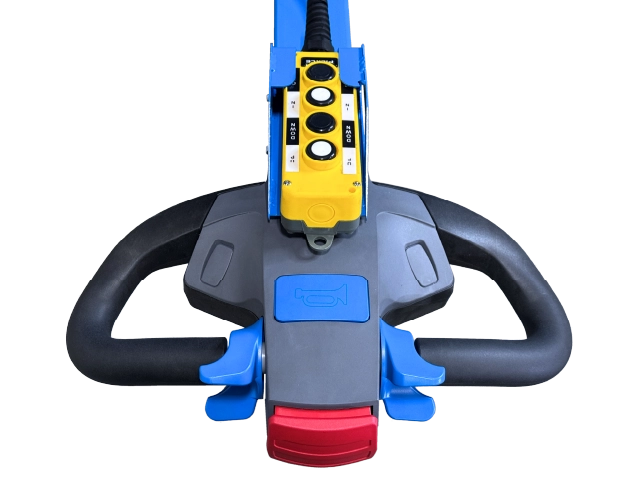

Control Handle of Power-Propelled Drum Handler

The Control Handle of < PILOT > Power-Propelled Drum Handlers features lift and lower buttons, a horn, ergonomic twist-grip speed control, and a "belly-button" reversing switch, which helps prevent the operator from being pinned. Upon contact, it activates low speed reverse direction. When the walkie handle is released, it returns to its upright position and applies the "dead-man" brake.



Control Panel of Power-Propelled Drum Pourer

The Control Panel of < PILOT > Power-Propelled Drum Pourers features an On/Off Switch, Tilt Control Lever, Lift Control Lever, and Battery Disconnect.


Model Chart

Product Description
900 < PILOT > Power-Propelled Drum Mover and Dumper to lift and pour a drum up to 10.5 feet (3.2 m) high.
905 Scale-Equipped < PILOT > Power-Propelled Drum Mover and Dumper to lift, weigh and pour a drum up to 10.5 feet (3.2 m) high.
910 < PILOT > Power-Propelled MORStak Drum Mover to lift, tilt and rack a 55-gallon (210 liter) steel drum horizontally up to 10.5 feet (3.2 m) high.
915 < PILOT > Power-Propelled MORSPEEDTM Drum Mover to lift and stack a rimmed upright drum up to 10 feet (3 m) high.
