1-5154-1


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

Single Stationary Drum Roller. 1-PH 115/208/230V 60Hz Motor. REQUIRES Electric Controls to Start/Stop. OSHA REQUIRES Enclosure w/ Interlock


1-5154-1

Specific to model 1-5154-1...
  • Model 1-5154-1 has 1/2 HP single-phase 60Hz TEFC motor
  • Rolls SINGLE drum at 20 RPM, based on 22.5" (57 cm) diameter
  • REQUIRES Electric Control Box to Start / Stop Rotator
  • Electric Control Package sold separately
    • Model 5998-P for single-phase 115V 60Hz power supply
    • Model 5999-P for single-phase 208-230V 60Hz power supply
  • Guard Enclosure with Interlock sold separately as Kit GEK-1-5154-1
All 5154 Series Stationary Drum Rollers...
  • IMPORTANT: OSHA, CSA and EU require enclosure with safety interlock
  • Roll drums to mix contents
  • Load horizontal drum onto roller with your hoist or crane
  • Roll STEEL drum with 6" to 28" (15 to 71 cm) diameter, and up to 40" (102 cm) tall
    • To roll PLASTIC drum, add POLY Option
    • To roll 1-to-5 gallon can, add Idler Attachment(s)
  • Spring steel grounding strap helps drain possible static charge
  • Maximum ambient operating temperature: 140o F (60o C)
REQUEST QUOTE CLICK TO CALL

General

Drum RPM20 RPM

RPM is based on 22.5" (57.15 cm) diameter drum.

Liquid Capacity1000 Lb. (454 kg)
Dryload Capacity300 Lb. (136.2 kg)

A shifting dry load exerts greater stress on the drum rotator than the fluid motion of a liquid load.

Motor information

Phase1
HP0.50
StyleTEFC (Totally enclosed fan cooled)
Explosion proof No
Frequency60Hz
Voltage / Amp draw115v / 7.4
Voltage / Amp draw208v / 4.3
Voltage / Amp draw230v / 3.7

Shipping information

Ship length63" (160.02 cm)
Ship width40" (101.6 cm)
Ship height20" (50.8 cm)
Ship weight296 Lb. (134.384 kg)
Ship class70
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
Click serial range to download.
Operators Manual and Parts Diagram
Serial range

1-5154 Series Stationary Drum Roller

Boston Speed Reducers - GR
Parts Diagram
Serial range

292-P Idler Wheel

Factory Installed Option to roll Plastic Drum

Idler Attachment to Roll 1 to 5 Gallon Can

Kit to Mount IPTS Gearbox

Speed Reducer
Click serial range to download.
Material Safety data sheet
Serial range

Klubersynth Oil Safety Data Sheet

Mobil SHC634 Oil Safety Data Sheet
2845X-P thumbnail image 2845X-P

Fully Enclosed Crate for export of 1 of 1-5154 Series. Crate is heat treated and certified IPPC compliant.

5516X-P thumbnail image 5516X-P

Fully enclosed crate for export of 456 or 1-5154 Series with Enclosure Kit (NOT set up). Crate is heat treated & certified IPPC compliant.

1-5-1 thumbnail image 1-5-1

Idler attachment to roll a 1 to 5 gallon can on a Morse 5154 or 456 Series 55-gallon drum roller

5998-P thumbnail image 5998-P

Control Package for model 1-5154-1 Drum Roller. 1-Phase 115V 60Hz. Timer, Start/Stop, Emergency Stop, Lockable Fused Disconnect.

5999-P thumbnail image 5999-P

Control Package for Model 1-5154-1 Drum Roller. 1-Phase 230V 60Hz. Timer, Start/Stop, Emergency Stop, Lockable Fused Disconnect.

gek-1-5154-1 thumbnail image gek-1-5154-1

Kit: Enclosure with Safety Interlock for CUSTOMER to install with 1-5154 1-Phase AC Single Drum Roller. SHIPS SEPARATELY W/ 2ND FREIGHT BILL

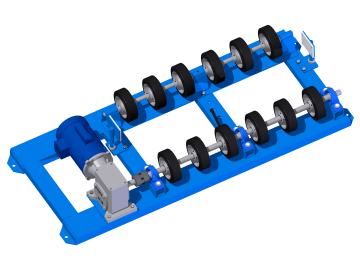

POLY-1-5154 thumbnail image POLY-1-5154

OPTION: Factory Installed on NEW 1-5154 Series to roll PLASTIC drum. 4 Extra wheels and end stops to prevent drum travel. CANNOT order without drum roller.

California Proposition 65 Information


...
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
