160-SS


Some items have Special Edition Morse 100th Anniversary *GOLD* Finish.

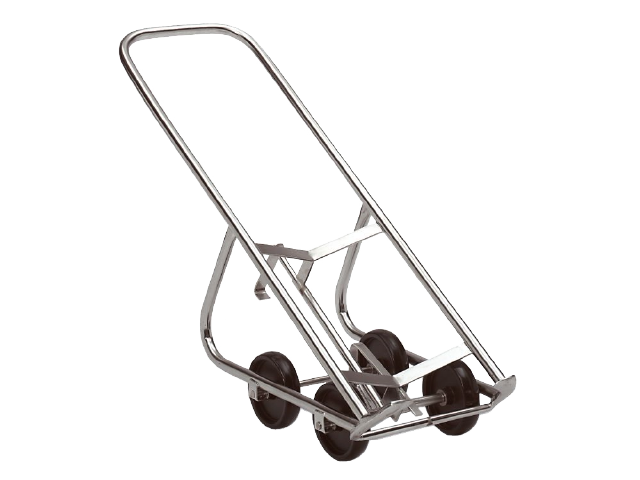

Stainless Steel 4-Wheel Drum Truck to move, pour and palletize a rimmed drum. Made of type 304 stainless steel.


160-SS

Specific to model 160-SS...
  • Model 160-SS is made of type 304 stainless steel with bead blast finish often required in food and pharmaceutical applications
  • Welds are NOT ground smooth or polished
  • Moves easily on 8" Polyolefin wheels mounted inside frame
All 4-Wheel Drum Trucks...
  • 4-Wheel Drum Truck fully supports drum weight. No need to balance or support drum.
  • Hook engages upper drum rim, and long handle provides leverage to pull upright drum over onto drum truck
  • Specially shaped forged toe prongs ease loading drum
  • Stands alone on 4 wheels holding full weight of drum
  • Move drum onto and off pallets
  • Pass through narrow aisles with hands protected inside U-shaped Knuckle Saving Handle
  • Pour barrel or drum into 5-gallon (20 Liter) pail
  • Stands upright for storage
  • Handle various RIMMED steel, plastic or fiber drums
    • 30 to 85 gallon (114 to 320 Liter)
    • 31" to 41" (79 to 104 cm) tall
    • 14" to 28" (36 to 71 cm) diameter
  • Install Strap Kit # 5058-P to handle a RIMLESS plastic drum, or a drum shorter than 31" (78.7 cm)
  • Ships boxed to save on freight. Just install handle with 2 bolts.
REQUEST QUOTE CLICK TO CALL

General

Full Capacity

1000 Lb. (454 kg)

Shipping information

Ship length25" (63.5 cm)
Ship width21" (53.34 cm)
Ship height35" (88.9 cm)
Ship weight76 Lb. (34.504 kg)
Ship class70
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

Click a serial range to download.
Document
Serial range
Stainless Steel Characteristics
Spec Sheet

160 Drum Truck

Certificate of Compliance

Click a serial range to download.
Document
Serial range
160-SS Certificate of Compliance
Certificate of Compliance

Click a serial range to download.
Document
Serial range
CE Declaration of Conformity - 160
Operators Manual

5058-P Strap Kit to Handle Rimless Plastic Drum with 160 Series Drum Truck
Operators Manual and Parts Diagram

4-Wheel Drum Truck
Parts Diagram
5910X-P

Fully enclosed crate for export of (10) of model 160, 160M or 160-SS. Heat treated and certified IPPC compliant.

5058-P thumbnail image 5058-P

Kit: Strap to handle a rimless plastic drum with 160 Series 4-Wheel Drum Truck.

NMW-160

OPTION: Factory Installed non- marking wheels on NEW 4-Wheel Drum Truck model 160, 160M or 160-SS

SCW-160

OPTION: Factory Installed static conductive wheels on NEW 4-Wheel Drum Truck model 160, 160M or 160-SS
