Forklift-Karrier to lift and pour a drum with your forklift. MORINCH Drum Holder automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum. Has pull chain to turn drum. Capacity: 1500 Lb. (680 kg)
Morse Forklift-Karriers convert your forklift into a safety-conscious drum handler to lift, move and pour a drum. Dispense a drum right from your forklift. You control drum tilting with a 20’ (6 m) long pull chain loop with 10’ (3 m) drop. Turn drum 360o in either direction.
Quickly mount onto forks with no tools or modifications. Requires 25" (63.5 cm) between the forks. Each fork pocket opening is 2.5" (6.35 cm) high by 6.5" (16.5 cm) wide.
We recommend the MORStop Tilt-Brake option to automatically hold the drum tilt angle until you move it. This prevents a partially full, unbalanced drum from turning out of control, even when the contents shift from one end to the other.
Can also be ordered with Hand Crank or Hand Wheel option for use only within reach.
Modify fork truck nameplate information to reflect capacity of fork truck with Morse attachment. Fork truck capacity can be substantially lower than the original rated capacity, as adding an attachment tends to move the center of gravity of combined truck and load forward.
See Operator's Manual for Center of Gravity Dimensions to Calculate Lost Load on Your Fork Truck
Applicable OSHA Regulations regarding use of attachments with your forklift
- Converts your forklift into a safety-conscious drum handler
- Requires 25" (63.5 cm) between the forks

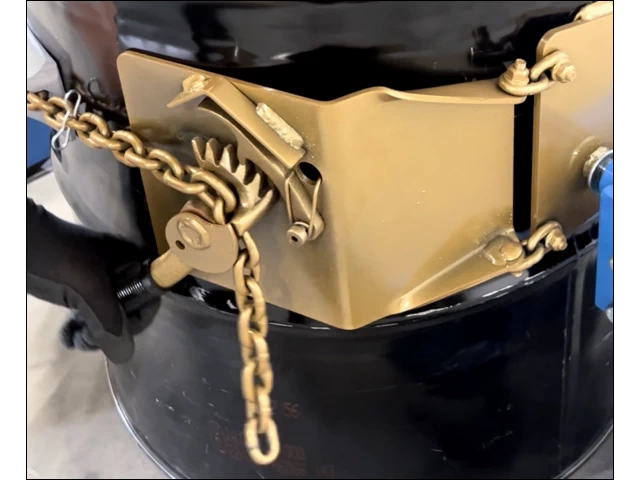

- Features MORCINCHTM Drum Handling System to automatically cinch around 22" to 23.5" (56 to 59.7 cm) diameter drum
- Install correct MORCINCHTM Kit to handle a plastic or fiber drum
- Insert correct size Diameter Adapter for each smaller drum
- 1500 Lb. (680 kg) Full drum
- 800 Lb. (363 kg) Half-full drum
Half-full capacity is an indication of the capacity for tilting an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
|Full Capacity||1500 Lb. (681 kg)|
|Half-full Capacity||800 Lb. (363.2 kg)|
|Ship length||42" (106.68 cm)|
|Ship width||34" (86.36 cm)|
|Ship height||23" (58.42 cm)|
|Ship weight||174 Lb. (78.996 kg)|
Example: 1120 is November 2020
Operators Manual and Parts Diagram
Operators Manual and Parts Diagram
Diameter Adapter for 14" to 14.5" (35.6 to 36.8 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
Diameter Adapter for 15.5" to 16" (39.4 to 40.6 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
Diameter Adapter for 17" to 17.5" (43.2 to 44.5 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
Diameter Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.
OPTION: Factory Installed MORStop Tilt-Brake on NEW manual tilt drum handler. Auto holds drum tilt angle until you move it.
Kit: Bracket to prevent plastic or fiber drum from slipping length-ways
OPTION: Factory Installed 9" hand crank on NEW model 285A, 285G, 285A-HD or 285G-HD. Replaces pull chain drum tilt control.
OPTION: Factory Installed 16" diameter hand wheel on NEW model 285A, 285G, 285A-HD OR 285G-HD. Replaces pull chain drum tilt control.
Diameter Adapter for 32-Gallon (121 liter) Rubbermaid Brute Model 2632. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted.
Diameter Adapter for 44-Gallon (167 liter) Rubbermaid Brute Model 2643. Engages under handles of Rubbermaid Brute. Has integrated top brackets to prevent Brute from slipping when tilted.
Kit: Safety Chain Anchor for 285 Series. Customer to bolt on or weld to cross tube of Forklift-Karrier.
Fully Enclosed Crate for export of 1 of 285 or 285HD Series. Crate is heat treated and certified IPPC compliant.
Kit: MORCINCH Bracket Assembly for use with Drum Cone attached to drum. Prevents drum from slipping lengthways in the drum holder.
KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for 30 to 55 gallon (114 to 210 liter) drum.
OPTION: Factory Installed 1/4" Thick Neoprene Liner on NEW 5000-P MORCINCH drum holder
OPTION: Factory Installed 2" x 3' (5 x 91 cm) Web Strap and Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum. NOT for spark resistant model.
Adapter for use with 4556-P Bracket Assembly in order to handle 55 gallon Rubbermaid Brute 2655
