Model 515SS-N-115

Stainless Steel Scale-Equipped Vertical-Lift Drum Pour. Weigh/pour up to 60". 12V DC Power lift & tilt. Welds NOT ground or polished.

All about Model 515SS-N-115
Specific to Model 515SS-N-115

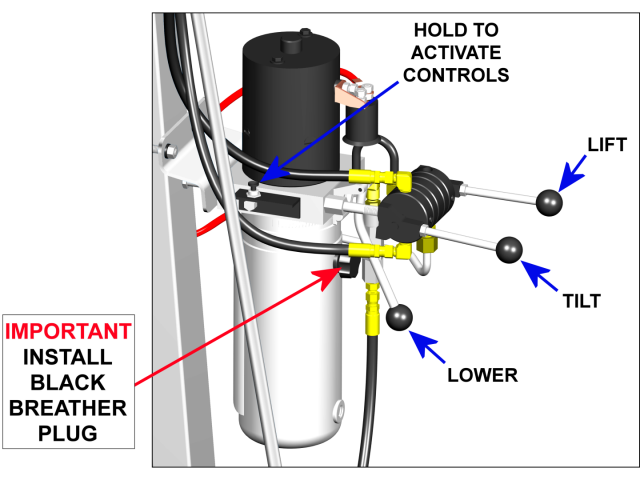

  • Model 515SS-N-115 has 12V battery DC power drum lift and tilt
    • Hold momentary switch and lift valve to raise drum
    • Second valve controls hydraulically-driven drum tilt
    • Manual release valve lowers drum
  • Frame is made of type 304 Stainless Steel with bead blast finish. Welds are NOT ground smooth or polished.
  • Dispense at up to 60" (152 cm) high
  • NOT for use in hazardous areas
  • Includes battery and charger
All Scale-Equipped Drum Pourers
  • Mobile Scale-Equipped Drum Handler to Lift, Weigh, Transport and Dispense a drum
  • Weigh drum as you pour to dispense exact amount needed
  • Accuracy of +/- 0.2% of displayed weight
  • Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer or other container
  • MORCINCHTM Drum Handling System
    • Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
    • Install correct MORCINCHTM Kit to handle plastic or fiber drum
    • Insert correct size Diameter Adapter for each smaller drum
4173X-P thumbnail image 4173X-P

Fully enclosed crate for export of 515, 525, 611 or 620 Series. Crate is heat treated and certified IPPC IPPC compliant.
55/30SS-14.5 thumbnail image 55/30SS-14.5

Stainless Steel Adapter for 14-14.5" (35.6-36.8 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30SS-16 thumbnail image 55/30SS-16

Stainless Steel Adapter for 15.5-16" (39.4-40.6 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30SS-17.5 thumbnail image 55/30SS-17.5

Stainless Steel Adapter for 17-17.5" (43.2-44.5 cm) dia. drum. Brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum.
55/30SS-19 thumbnail image 55/30SS-19

Stainless Steel Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. Measure diameter 1/2-way down drum.
55/30SS-20.5 thumbnail image 55/30SS-20.5

Stainless Steel Adapter for 20" to 20.5" (50.8 to 52.1 cm) diameter drum. Measure diameter 1/2-way down drum.
55/30SS-22 thumbnail image 55/30SS-22

Stainless Steel Adapter for 21.5" to 22" (54.6 to 55.9 cm) diameter drum. Measure diameter 1/2-way down drum.
No image available EB

OPTION: Factory installed SEALED 12V battery on NEW drum handler for export shipment
EC thumbnail image EC

OPTION: Battery Charger for single-phase 240V 50Hz/60Hz power supply with NEW drum handler. Customer must provide correct plug.
GB thumbnail image GB

OPTION: Factory Installed Green Battery on NEW drum handler. Environmentally friendly lithium-ion battery with up to 5 yr. design life.
No image available NB

OPTION: NO Battery on NEW drum handler. End user to install battery before use... Group size 27 12V deep cycle.
No image available NC

OPTION: No Charger. Customer must obtain 12V charger.
No image available PB

OPTION: Factory Installed Premium 12V Battery on NEW drum handler
No image available TB-500

OPTION: Factory Installed extra battery and charger on NEW 500 Series Vertical-Lift Drum Pourer to double duty cycle
No image available TPB-500

OPTION: Factory Installed 2 premium batteries and 2 chargers on 500 Series Vertical-Lift Drum Pourer. Doubles duty cycle.
No image available 55/30SS-19B

Stainless Steel Diameter Adapter for 18.5"-19" Drum. Integrated brackets adjust to 38" tall drum. **Measure outside diameter 1/2-way down drum.
55/30SS-32G thumbnail image 55/30SS-32G

Stainless Steel Diameter Adapter for 32-gallon Rubbermaid Brute model 2632
55/30SS-44G thumbnail image 55/30SS-44G

Stainless Steel Diameter Adapter for 44-gallon Rubbermaid Brute model 2643
No image available 1111i-p

option, factory installed auxiliary valve. Allows metering the lowering of the lift cylinder. Can be closed for postive hold.
No image available 2993i-P

Replace 8" dia. front wheels with 5" dia. front wheels.
No image available 3006SSI-P

Option: factory installed stainless steel hydraulic cylinder, 1.5" x 29", on new 400A-96SS, 510SS OR 515SS series.
4556SS-P thumbnail image 4556SS-P

Kit:Stainless Steel MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust to 31-39" tall drum. NOT complete drum handler
4560BSS-P thumbnail image 4560BSS-P

KIT: Stainless steel MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30-55 gallon drum.
5115ssi-p thumbnail image 5115ssi-p

OPTION: Factory installed 2" x 3' Web Strap and Stainless Steel Ratchet on NEW MORCINCH Drum Holder. Replaces cinch chain around drum.
No image available 5597SSI-P

OPTION: Factory installed stainless steel ratchet and pawl on NEW stainless steel MORCINCH drum holder
No image available 6349-P

KIT, SEAL, 6318-P, 6319-P
No image available 6388SS-P

STAINLESS STEEL ADAPTOR FOR USE WITH 4556SS-P BRACKET ASSEMBLY IN ORDER TO HANDLE 55 GALLON RUBBERMAID MODEL 2655
No image available 6659-P

SEAL KIT FOR 1-1/2" CLYINDER
No image available CRC-515SS

OPTION: Factory Installed corrosion resistant lift chains on NEW 515SS Series
No image available FGO

OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil
No image available LTC4

Load test one unit at Morse factory and ship with Load Test Certificate. NOT for Below-Hook model.
No image available SSC-500

OPTION: Factory Installed 6" diameter stainless steel swivel casters on NEW 500 Series Vertical-Lift Drum Pourer
No image available SSG-PT

OPTION: Factory Installed stainless steel tilt gears and roller chain on NEW power tilt 400 or 500 Series
Not available.
sticky note 4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020
Spec Sheet
Serial range
500SS Series Stainless Steel Vertical-Lift Drum Pourers
edit iconCurrent
Stainless Steel Characteristics
edit iconCurrent
Material Safety data sheet
Serial range
388-P Battery Safety Data Sheet
edit icon0419 - Current
NOCO Premium Plus Automatic Transmission fluid
edit icon0000 - Current
1Certificate of Compliance
Operators Manual
Serial range
Accessories - Stainless Steel MORCINCH Drum Holder
edit icon0209 - Current
Battery Charger
edit icon0616 - Current
edit icon0306 - 0516
Battery Charging Information
edit icon0000 - Current
CE Declaration of Conformity
edit icon400000 - Current
N Scale Package
edit icon267540 - Current
edit icon211429 - 267539
Parts Diagram
Serial range
Base Assembly
edit icon400000 - Current
Hydraulic Lift Cylinder
edit icon0804 - Current
Hydraulic Power Pack
edit icon416711 - Current
edit icon400000 - 416710
edit icon1218 - 0222
edit icon0313 - 1118
edit icon0107 - 0213
OPTION: Stainless Steel Gears, Power Tilt
edit icon0512 - Current
Yoke / Carriage Assembly
edit icon400000 - Current

No videos available.

Specifications

Full capacity

800 Lb. (363.20 kg)
Half capacity 500 Lb. (227.00 kg)

Half-full capacity is an indication of the capacity for an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.

Dispense height 60.0" (152.40 cm)
Lift style Power lift
Tilt style Power tilt

Proposition 65 warningWARNING – This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Proposition 65 warningWARNING - This product can expose you to chemicals including lead and arsenic, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ship length 72" (182.88 cm)
Ship width 43" (109.22 cm)
Ship height 82" (208.28 cm)
Ship weight 867 Lb. (393.62 kg)
Ship class 150
