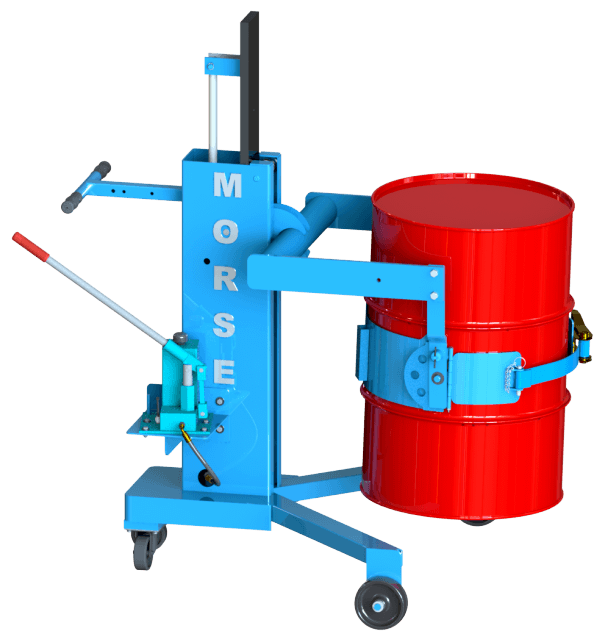

Model 82a
Mobile-Karrier/Pourer. Hand pump drum lift. Grasp drum to turn by hand. Pour drum up to 26" (66 cm) high.
Specifications
| Full capacity | 272.40 kg (600 Lb.) |
| Dispense height | 66.04 cm (26.0") |
| Lift style | Manual lift |
| Tilt style | Manual tilt |
| Ship length | 127.00 cm (50") |
| Ship width | 127.00 cm (50") |
| Ship height | 142.24 cm (56") |
| Ship weight | 235.17 kg (518 Lb.) |
| Ship class | 92.5 |
- Model 82A has Hand Pump Manual Drum Lift
- Palletize and dispense a standard 55-gallon (210 liter) steel drum

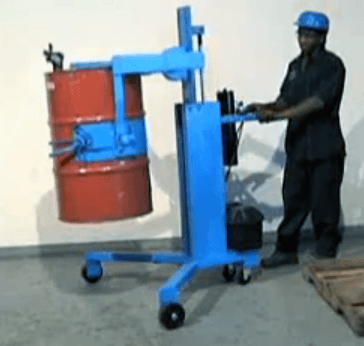

- Lift drum up to 20" (50.8 cm) above floor in upright position

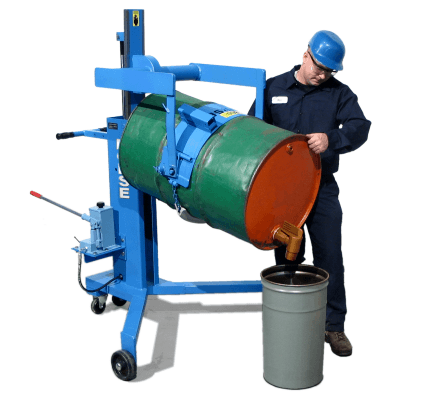

- Maximum dispensing height: 26" (66 cm) for horizontal drum

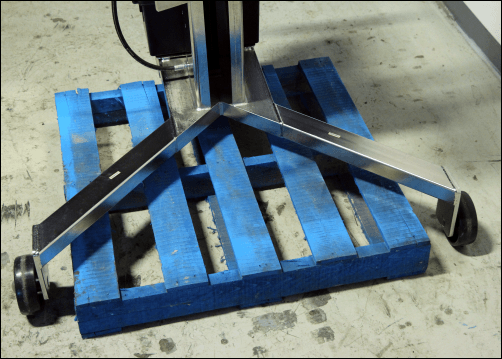

- V-shaped base to service pallet corner... counter-weighted for stability
- 55-gallon (210 liter) steel drum in horizontal position reaches 18.5" (47 cm) beyond wheels of V-shaped base
- Grasp Drum and Tilt by Hand
- Use Tilt Locks to hold drum horizontal for dispensing, or upright to transport
- Install Top Rim Clamp or Bracket to prevent plastic or fiber drum from slipping length-ways
- Insert correct size Diameter Adapter for each smaller drum
|
55/30-14.5
Diameter Adapter for 14"-14.5" (35.6 -36.8 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30-16
Diameter Adapter for 15.5"-16" (39.4 -40.6 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30-17.5
Diameter Adapter for 17"-17.5" (43.2 -44.5 cm) drum. Integrated brackets for up to 38" (96.5 cm) tall drum. Measure diameter 1/2-way down drum. |
|
55/30-19
Diameter Adapter for 18.5"-19" (47-48.3 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
|
55/30-20.5
Diameter Adapter for 20"-20.5" (50.8-52.1 cm) diameter drum. Measure diameter 1/2-way down drum. |
|
55/30-22
Diameter Adapter for 21.5-22" (54.6-55.9 cm) diameter drum. Measure diameter 1/2-way down drum. |
|

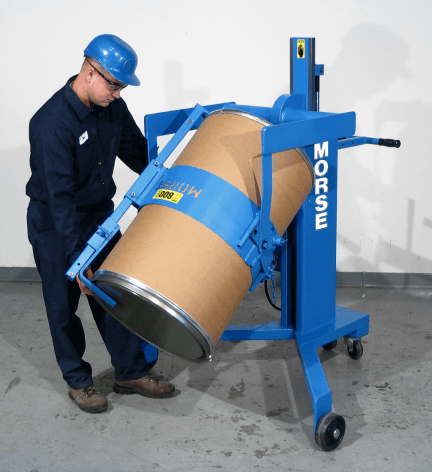

4556-P
KIT: MORCINCH Bracket to prevent RIMLESS or RIMMED plastic drum from slipping. Adjust for 31"-39" tall drum. NOT a complete drum handler. |
|
55/30-32G
Diameter Adapter for 32-gallon Rubbermaid Brute model 2632 |
|
|
55/30-44G
Diameter Adapter for 44-gallon Rubbermaid Brute model 2643 |
| 3588Xi-P
Fully enclosed crate for export of 82 Series. Heat treated and certified IPPC compliant. |
|
|

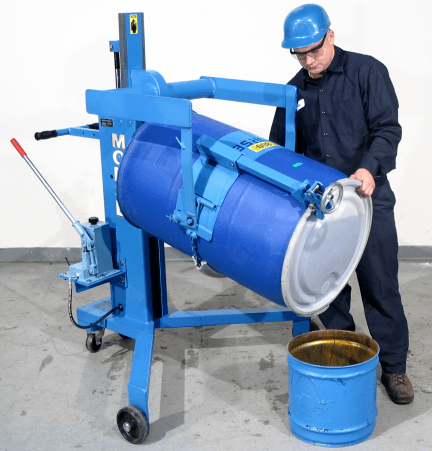

4560B-P
KIT: MORCINCH Top Rim Clamp to prevent a RIMMED plastic or fiber drum from slipping. Adjust for RIMMED 30 to 55 gallon drum. |
|
6075I-P
OPTION: Factory Installed cinch chain in place of ratchet web strap on NEW 80i, 85i or 82A Series |
| 6747-P
KIT, SEAL, 1" CYL, 3611K-P |
|
| FGO
OPTION: Factory Installed 1-Gallon of Food Grade Hydraulic Oil |
OPTIONAL KIT, RECOMMENDED SPARE PARTS FOR 82A SERIES S/N 0816-____. Critical components to reduce risk of downtime and eliminate ship time.
4-digit serial numbers are simply the month & year of manufacture. Example: 1120 is November 2020
