285A-GR

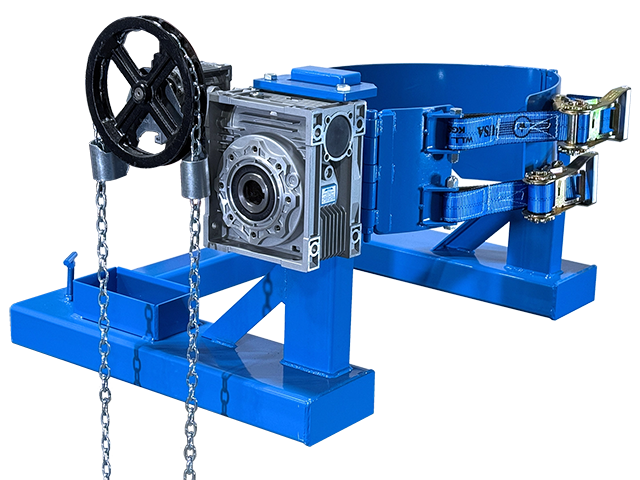

Heavy-Duty Forklift-Karrier to lift and pour a drum with your forklift. Capacity: 2000 Lb. (907 kg).


285A-GR

Modify fork truck nameplate information to reflect capacity of fork truck with Morse attachment. Fork truck capacity can be substantially lower than the original rated capacity, as adding an attachment tends to move the center of gravity of combined truck and load forward.

See Operator's Manual for Center of Gravity Dimensions to Calculate Lost Load on Your Fork Truck

Applicable OSHA Regulations regarding use of attachments with your forklift

  • Lift, move and dispense a heavy drum with your forklift

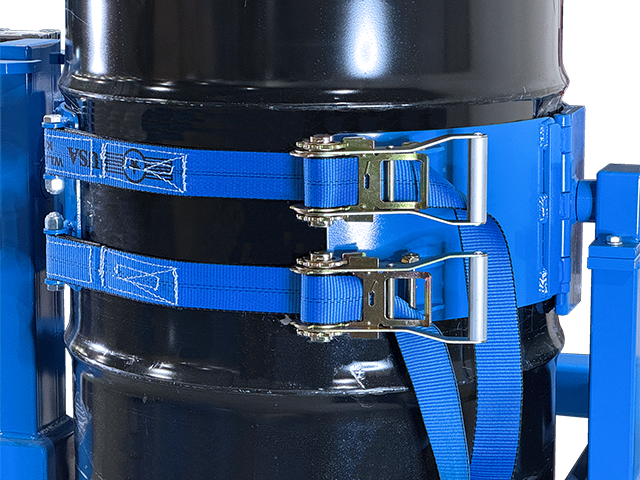

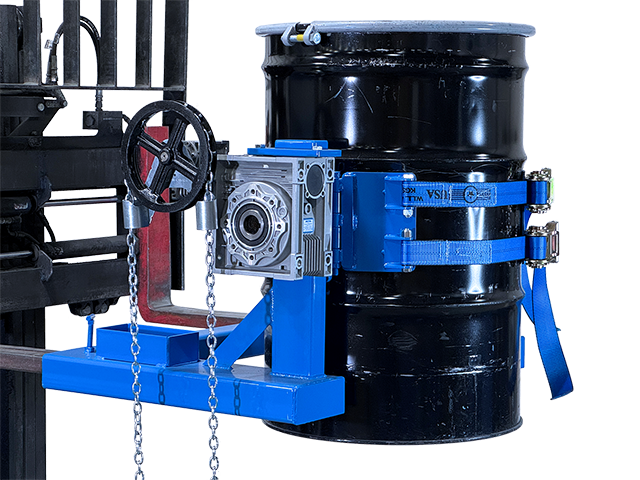

  • Drum holder has 2 web straps and ratchets to secure a 55-gallon (210 liter) steel drum
  • Use pull chain to manually turn drum 360o forward or backwards
  • Requires 25" (63.5 cm) between the forks
  • Capacity:
    • 2000 Lb. (907 kg) Full drum
    • 1000 Lb. (454 kg) Half-full drum
      Half-full capacity is an indication of the capacity for tilting an unbalanced, bottom-heavy drum. A partially full drum with an unbalanced and shifting load is harder to tilt than a full drum.
REQUEST QUOTE CLICK TO CALL

General

Full Capacity2000 Lb. (908 kg)
Half-full Capacity1000 Lb. (454 kg)

Shipping dimensions

Ship length45" (114.3 cm)
Ship width34" (86.36 cm)
Ship height24" (60.96 cm)
Ship weight214 Lb. (97.156 kg)
Ship class70
4-digit serial numbers are simply the month & year of manufacture.
Example: 1120 is November 2020

55/30-19GR thumbnail image 55/30-19GR

Diameter Adapter for 18.5" to 19" (47 to 48.3 cm) diameter drum. For use only with 185G, 285G, 185GR, 285GR or 300 Series. IMPORTANT: Measure outside diameter half-way down drum, where adapter will engage.

X02-285GR thumbnail image X02-285GR

OPTION: Factory Installed 9" hand crank on NEW model 285A-GR. Replaces pull chain drum tilt control.

X03-285GR thumbnail image X03-285GR

OPTION: Factory Installed 10" diameter hand wheel on NEW model 285A-GR. Replaces pull chain drum tilt control.

2162KIT-P

Kit: Safety Chain Anchor for 285 Series. Customer to bolt on or weld to cross tube of Forklift-Karrier.

2838X-P thumbnail image 2838X-P

Fully Enclosed Crate for export of 1 of 285GR Series or model 285XGR. Crate is heat treated and certified IPPC compliant.

6214I-P

OPTION: Factory Installed 2 Load Binder Chains on NEW 185A-GR or 285A-GR. Replaces 2 standard web straps.
